Imports¶
import numpy as np
import matplotlib.pyplot as plt
import pyart
from netCDF4 import Dataset
import xarray as xr
import glob
import datetime
import pandas as pd
import matplotlib.dates as mdates
import os
import math
import calendar
Plot a Column Vertical Profile (CVP)¶
def find_nearest(array, value):
array = np.asarray(array)
idx = (np.abs(array - value)).argmin()
return idx, array[idx]
def calculate_elevation_angle_array(height: np.ndarray, range_: np.ndarray) -> np.ndarray:
"""Returns an array of elevation angles in degrees."""
return np.degrees(np.arctan2(height, range_))def plot_qvp_5variables(qvp_dbzs,qvp_vels,qvp_wths,qvp_zdrs,qvp_rhos,dtimes, hgt,el, case,htop,qvp_dir):
# # Ensure dtimes is np.array of datetime
# if isinstance(dtimes, list):
# dtimes = np.array(dtimes)
# # Fix dimensions for pcolormesh
# if dtimes.ndim == 1:
# dtimes = np.tile(dtimes, (new_dbzs.shape[0], 1))
# # Check datetime format
# assert np.issubdtype(dtimes.dtype, np.datetime64) or isinstance(dtimes[0, 0], datetime.datetime)
# # Ensure start_time and end_time are datetime
# if isinstance(start_time, str):
# start_time = datetime.datetime.fromisoformat(start_time)
# if isinstance(end_time, str):
# end_time = datetime.datetime.fromisoformat(end_time)
# Transpose and convert to arrays
new_dbzs = np.array(qvp_dbzs).T
new_zdrs = np.array(qvp_zdrs).T
new_rhos = np.array(qvp_rhos).T
new_vels = np.array(qvp_vels).T
new_wths = np.array(qvp_wths).T
# Apply RhoHV mask
mask = new_rhos < 0.2
new_dbzs[mask] = np.nan
new_zdrs[mask] = np.nan
new_rhos[mask] = np.nan
new_vels[mask] = np.nan
new_wths[mask] = np.nan
# Setup plot
ytop = htop
fig, axes = plt.subplots(5, 1, sharex=True, figsize=(8, 15))
fig.subplots_adjust(hspace=0.3)
# Plot Reflectivity
#pcm = axes[0].pcolormesh(dtimes, hgt / 1e3, new_dbzs, vmin=-40, vmax=40, cmap='HomeyerRainbow')
pcm = axes[0].pcolormesh(dtimes, hgt / 1e3, new_dbzs, vmin=-40, vmax=40, cmap='ChaseSpectral')
fig.colorbar(pcm, ax=axes[0], label='[dBZ]')
axes[0].set_ylim(0, ytop)
axes[0].set_title('Reflectivity')
axes[0].set_ylabel('height [km]')
# Plot Velocity
pcm = axes[1].pcolormesh(dtimes, hgt / 1e3, new_vels, vmin=-5, vmax=5, cmap='Spectral_r')
fig.colorbar(pcm, ax=axes[1], label='[m/s]')
axes[1].set_ylim(0, ytop)
axes[1].set_title('Vd')
axes[1].set_ylabel('height [km]')
# Plot Width
pcm = axes[2].pcolormesh(dtimes, hgt / 1e3, new_wths, vmin=0, vmax=3, cmap='Spectral_r')
fig.colorbar(pcm, ax=axes[2], label='[m/s]')
axes[2].set_ylim(0, ytop)
axes[2].set_title('Width')
axes[2].set_ylabel('height [km]')
# Plot ZDR
#pcm = axes[3].pcolormesh(dtimes, hgt / 1e3, new_zdrs, vmin=-2, vmax=4, cmap='Spectral_r')
pcm = axes[3].pcolormesh(dtimes, hgt / 1e3, new_zdrs, vmin=-2, vmax=4, cmap='ChaseSpectral')
fig.colorbar(pcm, ax=axes[3], label='[dB]')
axes[3].set_ylim(0, ytop)
axes[3].set_title('ZDR')
axes[3].set_ylabel('height [km]')
# Plot RhoHV
pcm = axes[4].pcolormesh(dtimes, hgt / 1e3, new_rhos, vmin=0, vmax=1, cmap='Spectral_r')
fig.colorbar(pcm, ax=axes[4])
axes[4].set_ylim(0, ytop)
axes[4].set_title('RhoHV')
axes[4].set_ylabel('height [km]')
axes[4].set_xlabel('Time [UTC] on ' + str(case))
# axes[4].set_xlim([start_time, end_time])
axes[4].xaxis.set_major_formatter(mdates.DateFormatter('%H:%M'))
# axes[4].set_xlim([dtimes.min(), dtimes.max()])
# axes[4].xaxis.set_major_formatter(mdates.DateFormatter('%H:%M'))
# Add main title

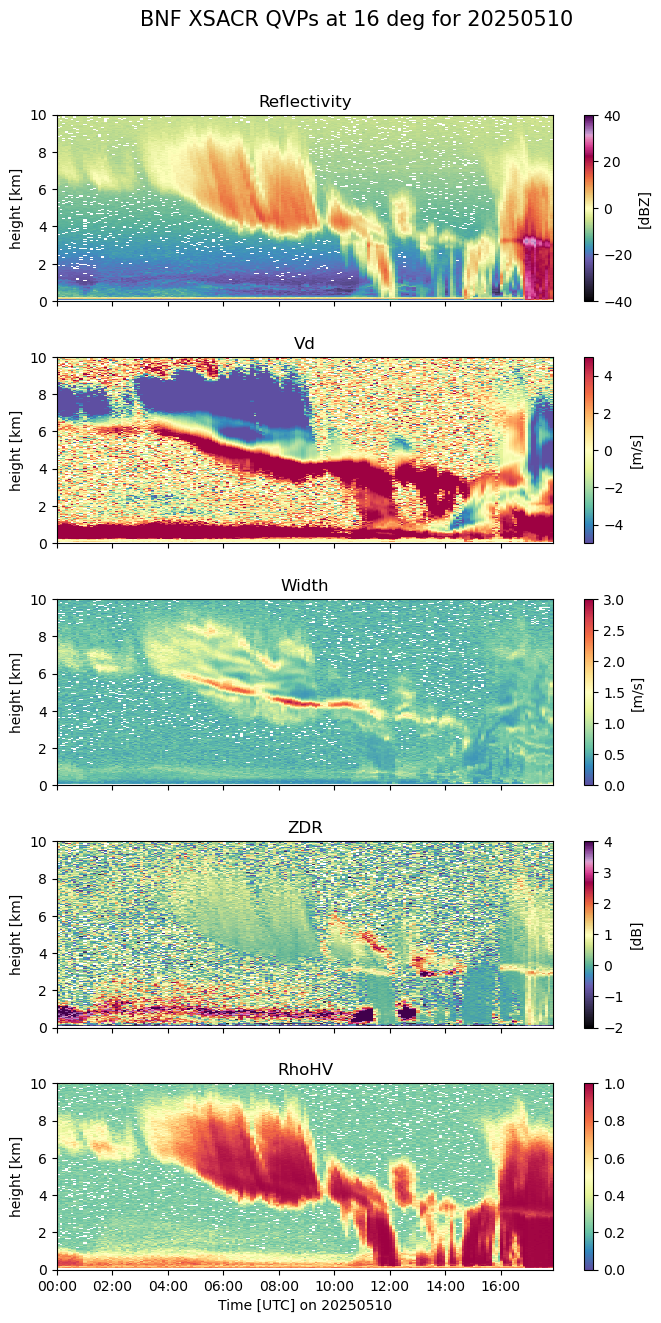

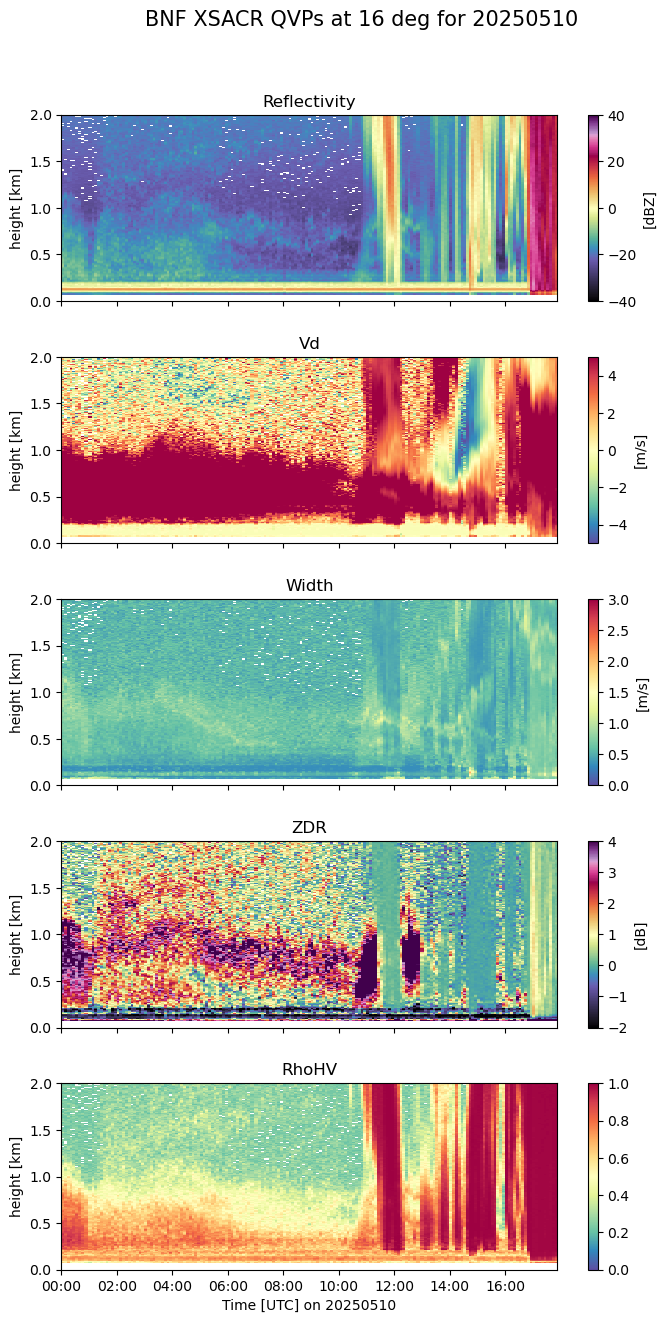

plt.suptitle(f'BNF XSACR QVPs at {el} deg for {case}', y=0.95, fontsize=15)
# Optional save
#save_gif = qvp_dir + f'bnf_xsacr_qvp_{el}deg_{case}.png'
#save_gif = qvp_dir + f'bnf_xsacr_qvp_{el}deg_{case}htop_{htop}.png'
#plt.savefig(save_gif , dpi=400, bbox_inches="tight")
plt.show()
qvp_dir = '/data/home/mdeng/data/bnf/qvp/xsacr/'
#os.makedirs(qvp_dir, exist_ok=True)
#dir = '/data/datastream/bnf/bnfxsacrcfrS4.a1/'
#afile = dir + 'bnfxsacrcfrS4.a1.20250514.225456.nc'
dir = "data/project/ARM_Summer_School_2025/radar/xsacr/*"
#afile = dir + 'bnfxsacrcfrS4.a1.202505.225456.nc'
#el = 9
el = 16
#azimuth range for a CVP
az1 = 200
az2 = 240
yr = "2025"
month = '05'
day = '10'
date_join = f"{yr}-{month}-{day}"
case = yr + month + day
files = sorted(glob.glob('/data/project/ARM_Summer_School_2025/radar/xsacr/bnfxsacrcfrS4.a1.'+case+'*'))
#files = sorted(glob.glob('/data/datastream/bnf/bnfkasacrcfrS4.a1/bnfkasacrcfrS4.a1.'+case+'*'))
nfiles = len(files)
qvp_dbzs = []
qvp_zdrs = []
qvp_rhos = []
qvp_vels = []
qvp_wths = []
dtimes = []
for file in files:
rad = pyart.io.read(file)
#print(file)
if rad.scan_type == 'ppi':
#find azimuths for XSACR file
azmth = rad.azimuth['data']
#Make this into the same shape as our radar field data
azmth_square = np.repeat(np.expand_dims(azmth, 1), len(rad.range['data']), axis=1)
rad.add_field_like('reflectivity', 'azsq', azmth_square)
#Make a gate filter
mygf = gatefilter = pyart.correct.GateFilter(rad)
#filter on aziumth, az1 to az2 degrees
mygf.exclude_outside('azsq', az1,az2)
#qvp = pyart.retrieve.quasi_vertical_profile(rad, desired_angle=el)
qvp = pyart.retrieve.quasi_vertical_profile(rad, desired_angle=el, gatefilter= mygf)
rng = qvp['range']
hgt = qvp['height']
angle = calculate_elevation_angle_array(hgt, rng)
angle_mean = np.mean(angle)
d_angle = np.abs(angle_mean - el)
if d_angle < 1:
qdbz = qvp['reflectivity']
#qdbz = qvp['attenuation_corrected_reflectivity_h'] # for csapr
qvel = qvp['mean_doppler_velocity']
qwth = qvp['spectral_width']
qzdr = qvp['differential_reflectivity']
qrho = qvp['copol_correlation_coeff']
rng0 = qvp['range']
hgt0 = qvp['height']
qvp_dbzs.append(qdbz)
qvp_zdrs.append(qzdr)
qvp_rhos.append(qrho)
qvp_vels.append(qvel)
qvp_wths.append(qwth)
#date = os.path.basename(files[i])[18:-3]
date = os.path.basename(file)[18:-3]
dto = datetime.datetime.strptime(date, '%Y%m%d.%H%M%S')
dtimes.append(dto)
#print ('done with ' + file)
rng_corr = rng*np.tan(np.deg2rad(el))
# Define the time limits
start_time = np.datetime64(date_join+"T00:00:00")
end_time = np.datetime64(date_join+"T18:59:59")
htop = 10
plot_qvp_5variables(qvp_dbzs,qvp_vels,qvp_wths,qvp_zdrs,qvp_rhos,dtimes, hgt0,el, case,htop, qvp_dir)
htop = 2
plot_qvp_5variables(qvp_dbzs,qvp_vels,qvp_wths,qvp_zdrs,qvp_rhos,dtimes, hgt0,el, case,htop, qvp_dir)
