Preprocess IBTRACK data

import xarray as xr
from dask.distributed import Client
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import pandas as pd
import glob
from global_land_mask import globe
import cartopy.feature as cfeature
from matplotlib.path import Path
import matplotlib.patches as patches
from matplotlib import patheffects

ib_data = '../test_folder/ibtracs.NA.list.v04r00.csv'

def process_ibrack(ib_loc, periods=[2000,2005]):

    #Read in the IBTRACKS data
    read_ib_data = pd.read_csv(ib_loc,keep_default_na=False)

    #Get the units for each column in read_ib_data
    units = read_ib_data.iloc[0,:]

    #Get data or the remainder of read_ib_data
    ib_original_dft = read_ib_data.iloc[1:,:]

    #Set a custom date and time range based on user choosing
    ib_original_dft['datetime'] = pd.to_datetime(ib_original_dft['ISO_TIME'],format='%Y-%m-%d %H:%M:%S')
    year_mask = (ib_original_dft['datetime'] > f'{periods[0]}-1-1') & (ib_original_dft['datetime'] <= f'{periods[1]}-11-30')
    ib_new_period = ib_original_dft[year_mask][ib_original_dft['BASIN'] == 'NA']

    #Only use cyclones over the North Atlantic basin
    #This can be changed to include more cyclones outside of the Northeast Atlantic
    def only_na_basin(df):
        lon_wise = df.sort_values(by='datetime')
        if lon_wise['LON'].iloc[0] > -55:
            return df
        else:
            return None

    #Get the number of time steps in each cyclone, or event
    only_neatlantic = ib_new_period.groupby('SID').apply(only_na_basin).reset_index(drop=True)
    counts = only_neatlantic.groupby('SID').count().iloc[:,0]

    #Get cyclones that last at least 12 time steps
    counts_12 = counts[counts > 12].index
    persist_storms = ib_new_period[ib_new_period['SID'].isin(counts_12)]
    persist_storms['month']= persist_storms['datetime'].dt.month

    # mask out land points
    def mask_lands(df):
        ordered_df = df.sort_values(by='datetime')
        lat = ordered_df['LAT']
        lon = ordered_df['LON']
        ocean_mask = pd.Series(globe.is_ocean(lat=lat,lon=lon))
        idx_false = ocean_mask.idxmin()
        if idx_false == 0:
            return df
        else:
            land_mask = ocean_mask.iloc[:idx_false]
            final_masked = ordered_df.iloc[:idx_false,:]
            return final_masked

    # filter extratropical parts of the storm tracks
    def filter_ET(df):
        ordered_df = df.sort_values(by='datetime')
        lat_filter = ordered_df['LAT'] <= 35
        filter_df = ordered_df[lat_filter]
        return filter_df

    exclude_et = persist_storms.groupby('SID').apply(filter_ET).reset_index(drop=True)

    final_dft = exclude_et.groupby('SID').apply(mask_lands).reset_index(drop=True)

    return final_dft

ib_data_processed = process_ibrack(ib_data,periods=[2000,2005])
ib_data_processed['LAT'] = ib_data_processed['LAT'].astype(float)
ib_data_processed['LON'] = ib_data_processed['LON'].astype(float)
ib_data_processed['USA_WIND'] = ib_data_processed['USA_WIND'].astype(float)
ib_data_processed['datetime'] = pd.to_datetime(ib_data_processed['datetime'],format='%Y-%m-%d %H:%M:%S')
ib_data_processed['SID'] = ib_data_processed['SID'].astype(str)

ib_data_processed['id'] = ib_data_processed['SID'].astype('category')
ib_data_processed['id'] = ib_data_processed['id'].cat.codes
req_cols = ['datetime','LAT','LON','USA_WIND','id']

# groupby datetime 6h
ib_data_processed['datetime'] = ib_data_processed['datetime'].dt.floor('6h')

ib_data_processed_6h = ib_data_processed[req_cols].groupby('datetime').mean().reset_index()

# copy the SID based on the id

ib_data_processed_6h['SID'] = ib_data_processed.groupby('datetime')['SID'].first().values

ib_data_processed_6h

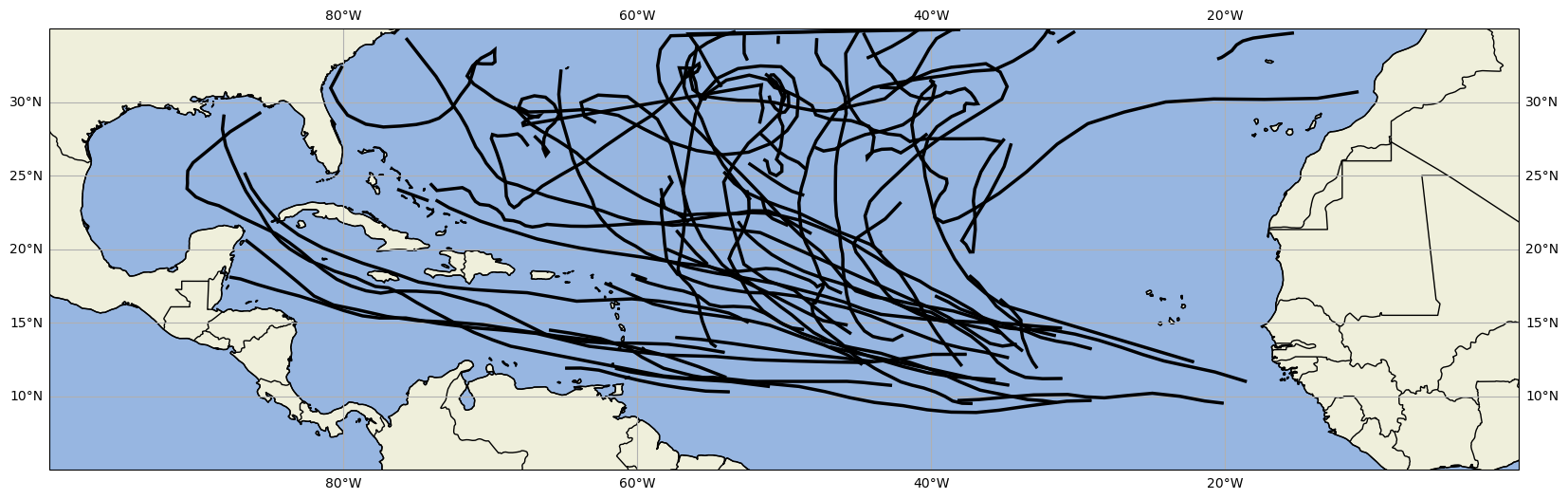

def plot_tracks(filtered_ib):
    filtered_ib['datetime'] = pd.to_datetime(filtered_ib['datetime'])

    events = filtered_ib.groupby('id')

    fig,ax = plt.subplots(figsize=(20,10),subplot_kw={"projection": ccrs.PlateCarree()})

    ax.add_feature(cfeature.COASTLINE)

    ax.add_feature(cfeature.BORDERS)


    ax.coastlines()

    ax.add_feature(cfeature.LAND)
    ax.add_feature(cfeature.OCEAN)

    ax.gridlines(draw_labels=True, dms=True, x_inline=False, y_inline=False)

    for event_num , event in events:
        lon = event['LON'].values
        lat = event['LAT'].values

        vertices = [(lo, la) for lo, la in zip(lon, lat)]
        codes = [Path.MOVETO]
        [codes.append(Path.LINETO) for index in range(0, len(event) - 1)]

        path = Path(vertices, codes)

        patch = patches.PathPatch(path, lw = 1, fc = 'none', path_effects = [patheffects.withStroke(linewidth=2.5, foreground="black")], zorder = 5)

        ax.add_patch(patch)

        ax.set_xlim(-100, 0)
        ax.set_ylim(5, 35)
    return fig,ax

plot_tracks(ib_data_processed_6h)

ib_data_processed_6h.to_csv('../test_folder/ib_data_processed_6h.csv')
