500 hPa Vorticity Advection

from datetime import datetime

import cartopy.crs as ccrs
import cartopy.feature as cfeature
import matplotlib.pyplot as plt
import metpy.calc as mpcalc
from metpy.units import units
import numpy as np
from siphon.catalog import TDSCatalog
from xarray.backends import NetCDF4DataStore
import xarray as xr

def earth_relative_wind_components(ugrd, vgrd):
    """Calculate the north-relative components of the
    wind from the grid-relative components using Cartopy
    transform_vectors.

    Parameters
    ----------
        ugrd : Xarray DataArray (M, N)
            grid relative u-component of the wind
        vgrd : Xarray DataArray (M, N)
            grid relative v-component of the wind

    Returns
    -------
        unr, vnr : tuple of array-like Quantity
            The north-relative wind components in the X (East-West)
            and Y (North-South) directions, respectively.
    """
    if 'metpy_crs' not in ugrd.coords:
        raise ValueError('No CRS in coordinate, be sure to use'
                         'the MetPy accessor parse_cf()')

    data_crs = ugrd.metpy.cartopy_crs

    x = ugrd.x.values
    y = ugrd.y.values

    xx, yy = np.meshgrid(x, y)

    ut, vt = ccrs.PlateCarree().transform_vectors(data_crs, xx, yy,
                                                  ugrd.values, vgrd.values)

    # Make a copy of u and v component DataArrays
    uer = ugrd.copy()
    ver = vgrd.copy()

    # Update values with transformed winds
    uer.values = ut
    ver.values = vt

    return uer, ver

dt = datetime(2016, 4, 16, 18)

# Assemble our URL to the THREDDS Data Server catalog,
# and access our desired dataset within via NCSS
base_url = 'https://www.ncei.noaa.gov/thredds/catalog/model-namanl-old/'
cat = TDSCatalog(f'{base_url}{dt:%Y%m}/{dt:%Y%m%d}/catalog.xml')
ncss = cat.datasets[f'namanl_218_{dt:%Y%m%d}_{dt:%H}00_000.grb'].subset()

# Query for Latest GFS Run
query = ncss.query()

query.time(dt)
query.accept('netcdf')
query.variables('Geopotential_height_isobaric',
                'u-component_of_wind_isobaric',
                'v-component_of_wind_isobaric')

# Obtain our queried data
data = ncss.get_data(query)
ds_data = xr.open_dataset(NetCDF4DataStore(data)).metpy.parse_cf()
ds = ds_data.metpy.assign_latitude_longitude()

times = ds.Geopotential_height_isobaric.metpy.time
vtime = times.values.squeeze().astype('datetime64[ms]').astype('O')

lev_500 = 500 * units.hPa

hght_500 = ds.Geopotential_height_isobaric.metpy.sel(
    vertical=lev_500).squeeze()
hght_500 = mpcalc.smooth_gaussian(hght_500, 4)

uwnd_500 = ds['u-component_of_wind_isobaric'].metpy.sel(
    vertical=lev_500).squeeze()
vwnd_500 = ds['v-component_of_wind_isobaric'].metpy.sel(
    vertical=lev_500).squeeze()

# Compute north-relative wind components for calculation purposes
uwnd_500er, vwnd_500er = earth_relative_wind_components(uwnd_500, vwnd_500)

avor = mpcalc.vorticity(uwnd_500er, vwnd_500er)

avor = mpcalc.smooth_n_point(avor, 9, 10) * 1e5

vort_adv = mpcalc.advection(avor, uwnd_500er, vwnd_500er) * 1e4

# Set up Coordinate System for Plot and Transforms
datacrs = ds.Geopotential_height_isobaric.metpy.cartopy_crs
plotcrs = ccrs.LambertConformal(central_latitude=45., central_longitude=-100.,
                                standard_parallels=[30, 60])

fig = plt.figure(1, figsize=(12., 14.))
ax = plt.subplot(111, projection=plotcrs)

# Plot Titles

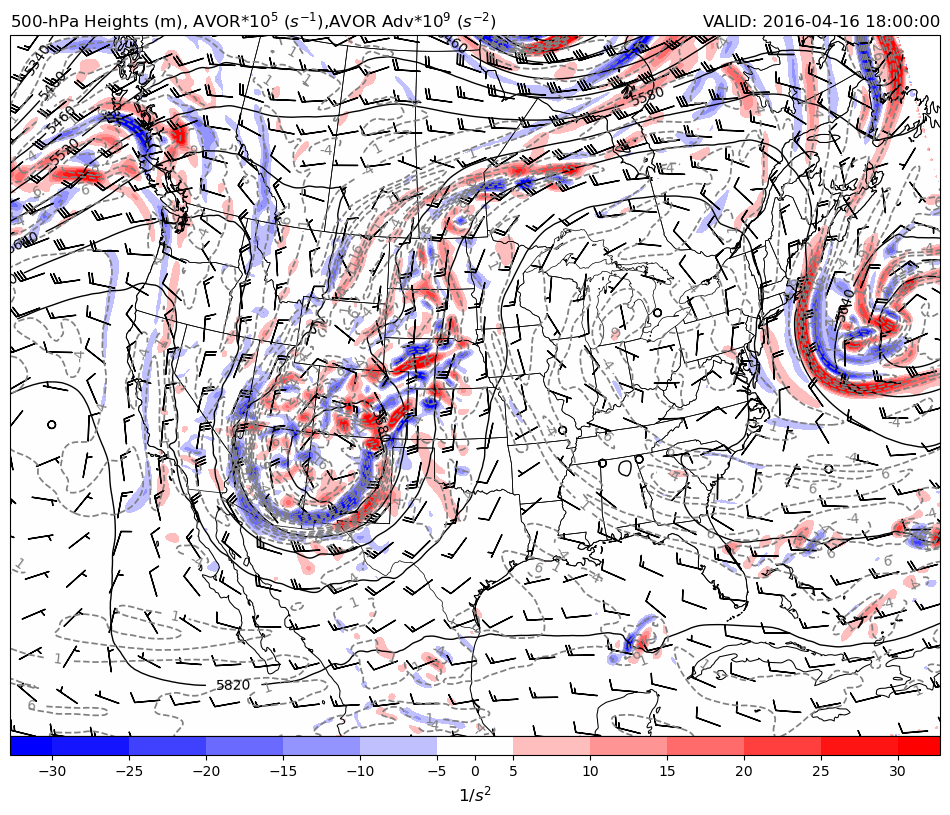

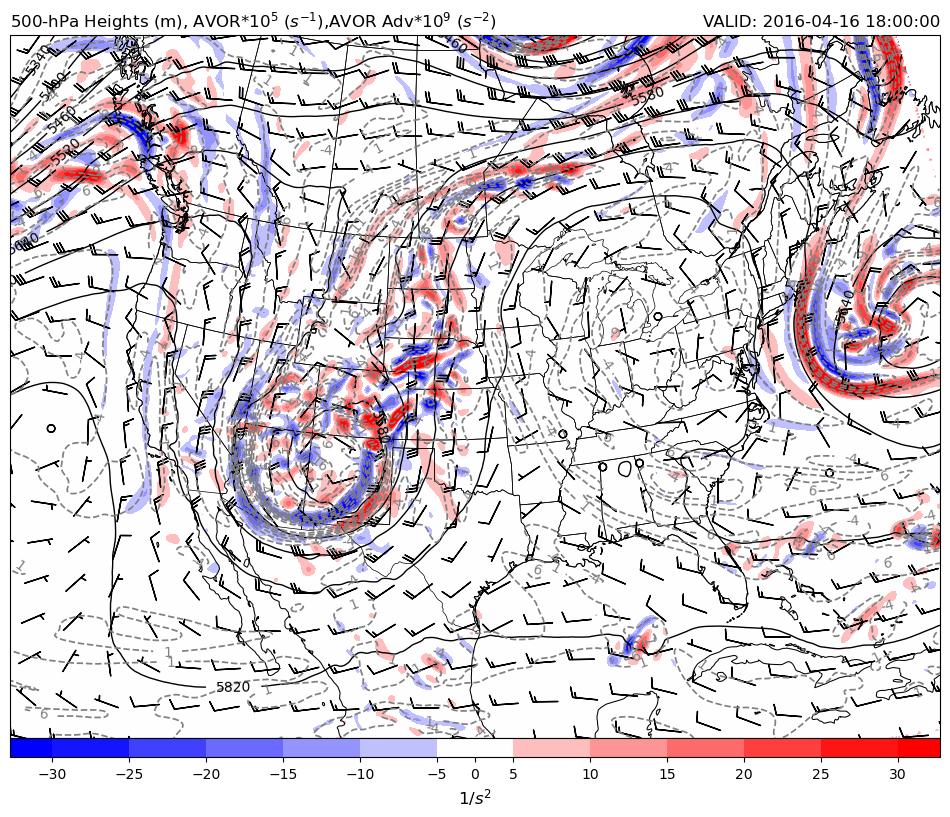

plt.title(r'500-hPa Heights (m), AVOR$*10^5$ ($s^{-1}$),'
          'AVOR Adv$*10^9$ ($s^{-2}$)', loc='left')
plt.title(f'VALID: {vtime}', loc='right')

# Plot Background
ax.set_extent([235., 290., 20., 58.], ccrs.PlateCarree())
ax.coastlines('50m', edgecolor='black', linewidth=0.75)
ax.add_feature(cfeature.STATES, linewidth=.5)

# Plot Height Contours
clev500 = np.arange(5100, 6061, 60)
cs = ax.contour(hght_500.longitude, hght_500.latitude,
                hght_500, clev500,
                colors='black', linewidths=1.0,
                linestyles='solid', transform=ccrs.PlateCarree())
plt.clabel(cs, fontsize=10, inline=1, inline_spacing=10, fmt='%i',
           rightside_up=True, use_clabeltext=True)

# Plot Absolute Vorticity Contours
clevvort500 = np.arange(-9, 50, 5)
cs2 = ax.contour(avor.longitude, avor.latitude,
                 avor, clevvort500,
                 colors='grey', linewidths=1.25, linestyles='dashed',
                 transform=ccrs.PlateCarree())
plt.clabel(cs2, fontsize=10, inline=1, inline_spacing=10, fmt='%i',
           rightside_up=True, use_clabeltext=True)

# Plot Colorfill of Vorticity Advection
clev_avoradv = np.arange(-30, 31, 5)
cf = ax.contourf(vort_adv.longitude, vort_adv.latitude, vort_adv,
                 clev_avoradv[clev_avoradv != 0], extend='both',
                 cmap='bwr', transform=ccrs.PlateCarree())
cb = plt.colorbar(cf, orientation='horizontal', pad=0, aspect=50,
                  extendrect='True', ticks=clev_avoradv)
cb.set_label(r'$1/s^2$', size='large')

# Plot Wind Barbs
# Transform Vectors and plot wind barbs.
wind_slice = (slice(None, None, 20), slice(None, None, 20))
xx, yy = np.meshgrid(uwnd_500.x.values[wind_slice[0]],
                     uwnd_500.y.values[wind_slice[0]])
ax.barbs(xx, yy, uwnd_500.values[wind_slice], vwnd_500.values[wind_slice],
         length=6, pivot='middle', transform=datacrs)
