Looking at NEXRAD Data from Moore, Oklahoma¶

Overview¶

Within this notebook, we will cover:

How to access NEXRAD data from AWS
How to read this data into Py-ART
How to customize your plots and maps

Prerequisites¶

Concepts	Importance	Notes
Intro to Cartopy	Required	Projections and Features
Matplotlib Basics	Required	Basic plotting
Py-ART Basics	Required	IO/Visualization

Time to learn: 45 minutes

Imports¶

import pyart
import fsspec
from metpy.plots import USCOUNTIES
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import warnings
warnings.filterwarnings("ignore")


## You are using the Python ARM Radar Toolkit (Py-ART), an open source
## library for working with weather radar data. Py-ART is partly
## supported by the U.S. Department of Energy as part of the Atmospheric
## Radiation Measurement (ARM) Climate Research Facility, an Office of
## Science user facility.
##
## If you use this software to prepare a publication, please cite:
##
##     JJ Helmus and SM Collis, JORS 2016, doi: 10.5334/jors.119

How to Access NEXRAD Data from Amazon Web Services (AWS)¶

Let’s start first with NEXRAD Level 2 data, which is ground-based radar data collected by the National Oceanic and Atmospheric Administration (NOAA), as a part of the National Weather Service (NWS) observing network.

Level 2 Data¶

Level 2 data includes all of the fields in a single file - for example, a file may include:

Reflectivity
Velocity

Search for Data from the Moore, Oklahoma Tornado (May 20, 2013)¶

Data We will access data from the noaa-nexrad-level2 bucket, with the data organized as:

s3://noaa-nexrad-level2/year/month/date/radarsite/{radarsite}{year}{month}{date}_{hour}{minute}{second}_V06

We can use fsspec, a tool to work with filesystems in Python, to search through the bucket to find our files!

We start first by setting up our AWS S3 filesystem

fs = fsspec.filesystem("s3", anon=True)

Once we setup our filesystem, we can list files from May 20, 2013 from the NWS Oklahoma City, Oklahoma (KTLX) site, around 2000 UTC.

files = sorted(fs.glob("s3://noaa-nexrad-level2/2013/05/20/KTLX/KTLX20130520_20*"))
files

---------------------------------------------------------------------------
ClientError                               Traceback (most recent call last)
File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/s3fs/core.py:755, in S3FileSystem._lsdir(self, path, refresh, max_items, delimiter, prefix, versions)
    754 files = []
--> 755 async for c in self._iterdir(
    756     bucket,
    757     max_items=max_items,
    758     delimiter=delimiter,
    759     prefix=prefix,
    760     versions=versions,
    761 ):
    762     if c["type"] == "directory":

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/s3fs/core.py:805, in S3FileSystem._iterdir(self, bucket, max_items, delimiter, prefix, versions)
    798 it = pag.paginate(
    799     Bucket=bucket,
    800     Prefix=prefix,
   (...)    803     **self.req_kw,
    804 )
--> 805 async for i in it:
    806     for l in i.get("CommonPrefixes", []):

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/aiobotocore/paginate.py:39, in AioPageIterator.__anext__(self)
     38 while True:
---> 39     response = await self._make_request(current_kwargs)
     40     parsed = self._extract_parsed_response(response)

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/aiobotocore/context.py:36, in with_current_context.<locals>.decorator.<locals>.wrapper(*args, **kwargs)
     35     await resolve_awaitable(hook())
---> 36 return await func(*args, **kwargs)

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/aiobotocore/paginate.py:19, in AioPageIterator._make_request(self, current_kwargs)
     17 @with_current_context(partial(register_feature_id, 'PAGINATOR'))
     18 async def _make_request(self, current_kwargs):
---> 19     return await self._method(**current_kwargs)

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/aiobotocore/context.py:36, in with_current_context.<locals>.decorator.<locals>.wrapper(*args, **kwargs)
     35     await resolve_awaitable(hook())
---> 36 return await func(*args, **kwargs)

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/aiobotocore/client.py:424, in AioBaseClient._make_api_call(self, operation_name, api_params)
    423     error_class = self.exceptions.from_code(error_code)
--> 424     raise error_class(parsed_response, operation_name)
    425 else:

ClientError: An error occurred (AccessDenied) when calling the ListObjectsV2 operation: Access Denied

The above exception was the direct cause of the following exception:

PermissionError                           Traceback (most recent call last)
Cell In[3], line 1
----> 1 files = sorted(fs.glob("s3://noaa-nexrad-level2/2013/05/20/KTLX/KTLX20130520_20*"))
      2 files

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/fsspec/asyn.py:118, in sync_wrapper.<locals>.wrapper(*args, **kwargs)
    115 @functools.wraps(func)
    116 def wrapper(*args, **kwargs):
    117     self = obj or args[0]
--> 118     return sync(self.loop, func, *args, **kwargs)

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/fsspec/asyn.py:103, in sync(loop, func, timeout, *args, **kwargs)
    101     raise FSTimeoutError from return_result
    102 elif isinstance(return_result, BaseException):
--> 103     raise return_result
    104 else:
    105     return return_result

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/fsspec/asyn.py:56, in _runner(event, coro, result, timeout)
     54     coro = asyncio.wait_for(coro, timeout=timeout)
     55 try:
---> 56     result[0] = await coro
     57 except Exception as ex:
     58     result[0] = ex

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/s3fs/core.py:834, in S3FileSystem._glob(self, path, **kwargs)
    832 if path.startswith("*"):
    833     raise ValueError("Cannot traverse all of S3")
--> 834 return await super()._glob(path, **kwargs)

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/fsspec/asyn.py:807, in AsyncFileSystem._glob(self, path, maxdepth, **kwargs)
    804     else:
    805         depth = None
--> 807 allpaths = await self._find(
    808     root, maxdepth=depth, withdirs=True, detail=True, **kwargs
    809 )
    811 pattern = glob_translate(path + ("/" if ends_with_sep else ""))
    812 pattern = re.compile(pattern)

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/s3fs/core.py:864, in S3FileSystem._find(self, path, maxdepth, withdirs, detail, prefix, **kwargs)
    860     raise ValueError(
    861         "Can not specify 'prefix' option alongside 'withdirs'/'maxdepth' options."
    862     )
    863 if maxdepth:
--> 864     return await super()._find(
    865         bucket + "/" + key,
    866         maxdepth=maxdepth,
    867         withdirs=withdirs,
    868         detail=detail,
    869         **kwargs,
    870     )
    871 # TODO: implement find from dircache, if all listings are present
    872 # if refresh is False:
    873 #     out = incomplete_tree_dirs(self.dircache, path)
   (...)    878 #         return super().find(path)
    879 #     # else: we refresh anyway, having at least two missing trees
    880 out = await self._lsdir(path, delimiter="", prefix=prefix, **kwargs)

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/fsspec/asyn.py:847, in AsyncFileSystem._find(self, path, maxdepth, withdirs, **kwargs)
    843 detail = kwargs.pop("detail", False)
    845 # Add the root directory if withdirs is requested
    846 # This is needed for posix glob compliance
--> 847 if withdirs and path != "" and await self._isdir(path):
    848     out[path] = await self._info(path)
    850 # async for?

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/s3fs/core.py:1554, in S3FileSystem._isdir(self, path)
   1552 # This only returns things within the path and NOT the path object itself
   1553 try:
-> 1554     return bool(await self._lsdir(path))
   1555 except FileNotFoundError:
   1556     return False

File ~/micromamba/envs/radar-cookbook-dev/lib/python3.12/site-packages/s3fs/core.py:768, in S3FileSystem._lsdir(self, path, refresh, max_items, delimiter, prefix, versions)
    766     files += dirs
    767 except ClientError as e:
--> 768     raise translate_boto_error(e)
    770 if delimiter and files and not versions:
    771     self.dircache[path] = files

PermissionError: Access Denied

We now have a list of files we can read in!

Read the Data into PyART¶

When reading into PyART, we can use the pyart.io.read_nexrad_archive or pyart.io.read module to read in our data.

radar = pyart.io.read_nexrad_archive(f's3://{files[3]}')

Notice how for the NEXRAD Level 2 data, we have several fields available

list(radar.fields)

Plot a quick-look of the dataset¶

Let’s get a quicklook of the reflectivity and velocity fields

display = pyart.graph.RadarMapDisplay(radar)
display.plot_ppi_map('reflectivity',
                     sweep=3,
                     vmin=-20,
                     vmax=60,
                     projection=ccrs.PlateCarree()
                    )

display.plot_ppi_map('velocity',
                     sweep=3,
                     projection=ccrs.PlateCarree(),
                    )

How to customize your plots and maps¶

Let’s add some more features to our map, and zoom in on our main storm

Combine into a single figure¶

Let’s start first by combining into a single figure, and zooming in a bit on our main domain.

# Create our figure
fig = plt.figure(figsize=[12, 4])

# Setup our first axis with reflectivity
ax1 = plt.subplot(121, projection=ccrs.PlateCarree())
display = pyart.graph.RadarMapDisplay(radar)
display.plot_ppi_map('reflectivity',
                     sweep=3,
                     vmin=-20,
                     vmax=60,
                     ax=ax1,)

# Zoom in by setting the xlim/ylim
plt.xlim(-99, -96)
plt.ylim(33.5, 36.5)

# Setup our second axis for velocity
ax2 = plt.subplot(122, projection=ccrs.PlateCarree())
display.plot_ppi_map('velocity',
                     sweep=3,
                     vmin=-40,
                     vmax=40,
                     projection=ccrs.PlateCarree(),
                     ax=ax2,)

# Zoom in by setting the xlim/ylim
plt.xlim(-99, -96)
plt.ylim(33.5, 36.5)
plt.show()

Add Counties¶

We can add counties onto our map by using the USCOUNTIES module from metpy.plots

# Create our figure
fig = plt.figure(figsize=[12, 4])

# Setup our first axis with reflectivity
ax1 = plt.subplot(121, projection=ccrs.PlateCarree())
display = pyart.graph.RadarMapDisplay(radar)
display.plot_ppi_map('reflectivity',
                     sweep=3,
                     vmin=-20,
                     vmax=60,
                     ax=ax1,)

# Zoom in by setting the xlim/ylim
plt.xlim(-99, -96)
plt.ylim(33.5, 36.5)

# Add counties
ax1.add_feature(USCOUNTIES,
                linewidth=0.5)

# Setup our second axis for velocity
ax2 = plt.subplot(122, projection=ccrs.PlateCarree())
display.plot_ppi_map('velocity',
                     sweep=3,
                     vmin=-40,
                     vmax=40,
                     projection=ccrs.PlateCarree(),
                     ax=ax2,)

# Zoom in by setting the xlim/ylim
plt.xlim(-99, -96)
plt.ylim(33.5, 36.5)

# Add counties
ax2.add_feature(USCOUNTIES,
                linewidth=0.5)

plt.show()

Zoom in even more¶

Let’s zoom in even more to our main feature - it looks like there is velocity couplet (where high positive and negative values of velcocity are close to one another, indicating rotation), near the center of our map.

# Create our figure
fig = plt.figure(figsize=[12, 4])

# Setup our first axis with reflectivity
ax1 = plt.subplot(121, projection=ccrs.PlateCarree())
display = pyart.graph.RadarMapDisplay(radar)
display.plot_ppi_map('reflectivity',
                     sweep=3,
                     vmin=-20,
                     vmax=60,
                     ax=ax1,)

# Zoom in by setting the xlim/ylim
plt.xlim(-98, -97)
plt.ylim(35, 36)

# Add counties
ax1.add_feature(USCOUNTIES,
                linewidth=0.5)

# Setup our second axis for velocity
ax2 = plt.subplot(122, projection=ccrs.PlateCarree())
display.plot_ppi_map('velocity',
                     sweep=3,
                     vmin=-40,
                     vmax=40,
                     projection=ccrs.PlateCarree(),
                     ax=ax2,)

# Zoom in by setting the xlim/ylim
plt.xlim(-98, -97)
plt.ylim(35, 36)

# Add counties
ax2.add_feature(USCOUNTIES,
                linewidth=0.5)

plt.show()

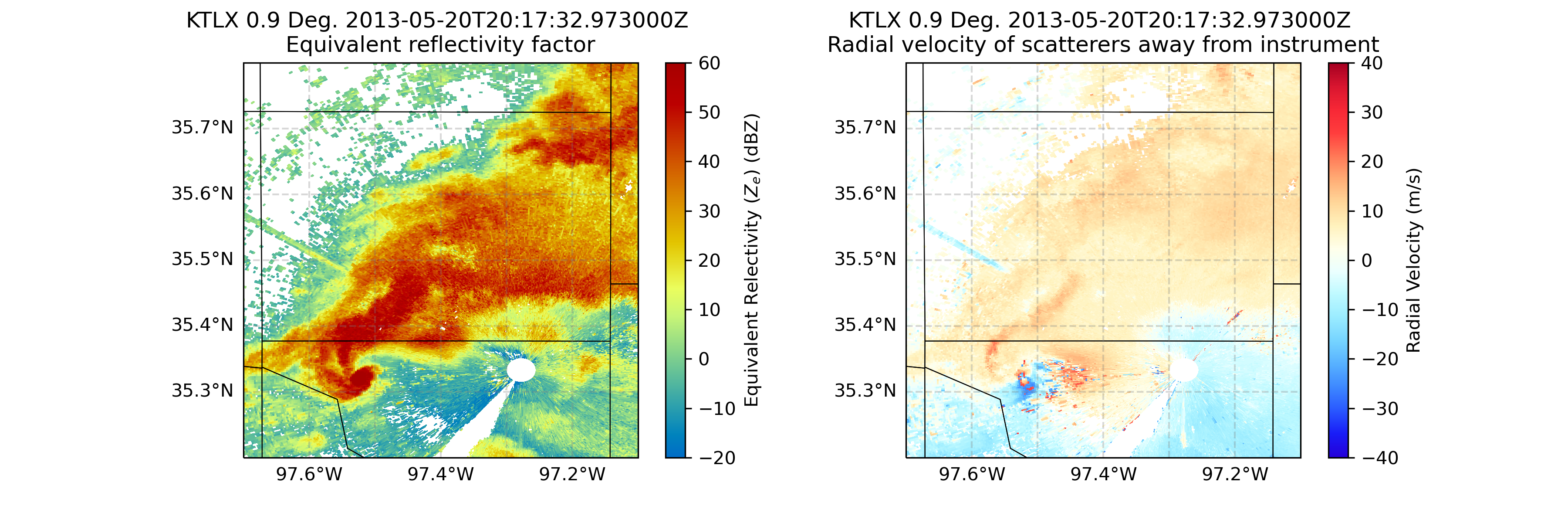

Customize our Labels and Add Finer Grid Labels¶

You’ll notice, by default, our colorbar label for the velocity field on the right extends across our entire figure, and the latitude/longitude labels on our axes are now gone. Let’s fix that!

# Create our figure
fig = plt.figure(figsize=[12, 4])

# Setup our first axis with reflectivity
ax1 = plt.subplot(121, projection=ccrs.PlateCarree())
display = pyart.graph.RadarMapDisplay(radar)
ref_map = display.plot_ppi_map('reflectivity',
                               sweep=3,
                               vmin=-20,
                               vmax=60,
                               ax=ax1,
                               colorbar_label='Equivalent Relectivity ($Z_{e}$) (dBZ)')


# Zoom in by setting the xlim/ylim
plt.xlim(-97.7, -97.1)
plt.ylim(35.2, 35.8)

# Add gridlines
gl = ax1.gridlines(crs=ccrs.PlateCarree(),
                  draw_labels=True,
                  linewidth=1,
                  color='gray',
                  alpha=0.3,
                  linestyle='--')

# Make sure labels are only plotted on the left and bottom
gl.xlabels_top = False
gl.ylabels_right = False

# Increase the fontsize of our gridline labels
gl.xlabel_style = {'fontsize':10}
gl.ylabel_style = {'fontsize':10}

# Add counties
ax1.add_feature(USCOUNTIES,
                linewidth=0.5)

# Setup our second axis for velocity
ax2 = plt.subplot(122, projection=ccrs.PlateCarree())
vel_plot = display.plot_ppi_map('velocity',
                                sweep=3,
                                vmin=-40,
                                vmax=40,
                                projection=ccrs.PlateCarree(),
                                ax=ax2,
                                colorbar_label='Radial Velocity (m/s)')

# Zoom in by setting the xlim/ylim
plt.xlim(-97.7, -97.1)
plt.ylim(35.2, 35.8)

# Add gridlines
gl = ax2.gridlines(crs=ccrs.PlateCarree(),
                   draw_labels=True,
                   linewidth=1,
                   color='gray',
                   alpha=0.3,
                   linestyle='--')

# Make sure labels are only plotted on the left and bottom
gl.xlabels_top = False
gl.ylabels_right = False

# Increase the fontsize of our gridline labels
gl.xlabel_style = {'fontsize':10}
gl.ylabel_style = {'fontsize':10}

# Add counties
ax2.add_feature(USCOUNTIES,
                linewidth=0.5)
plt.show()

Summary¶

Within this example, we walked through how to use MetPy and PyART to read in NEXRAD Level 2 data from the Moore Oklahoma tornado in 2013, create some quick looks, and customize the plots to analyze the tornadic supercell closest to the radar.

What’s next?¶

Other examples will look at additional data sources and radar types, including data from the Department of Energy (DOE) Atmospheric Radiation Measurement (ARM) Facility, and work through more advanced workflows such as completing a dual-Doppler analysis.

Resources and References¶

Radar Software Foundations

Interactive Radar Visualization

Example Workflows

Plotting Data from a Field Campaign (TRACER)
