Basic Visualization using matplotlib and Cartopy

Overview

A team at Google Research & Cloud are making parts of the ECMWF Reanalysis version 5 (aka ERA-5) accessible in a Analysis Ready, Cloud Optimized (aka ARCO) format.

In this notebook, we will do the following:

  1. Access the ERA-5 ARCO catalog

  2. Select a particular dataset and variable from the catalog

  3. Convert the data from Gaussian to Cartesian coordinates

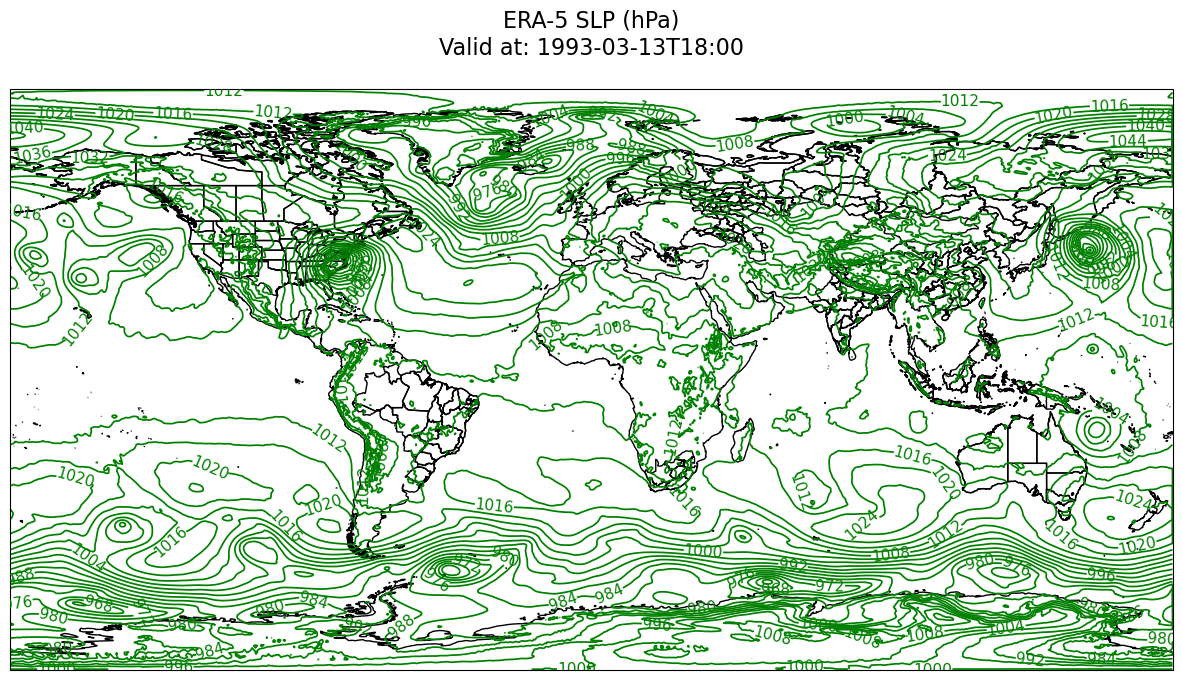

  4. Plot a map of sea-level pressure at a specific date and time using Matplotlib and Cartopy.

Prerequisites

ConceptsImportanceNotes
CartopyNecessary
XarrayNecessary

  • Time to learn: 30 minutes

Imports

import fsspec
import xarray as xr
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import scipy.spatial
import numpy as np
import cf_xarray as cfxr

Access the ARCO ERA-5 catalog on Google Cloud

Test bucket access with fsspec

fs = fsspec.filesystem('gs')
fs.ls('gs://gcp-public-data-arco-era5/co')
/home/runner/micromamba/envs/ERA5_interactive/lib/python3.14/site-packages/google/auth/transport/grpc.py:43: FutureWarning: grpcio < 1.83.0 does not support Post-Quantum Cryptography (PQC). Support for non-PQC environments is deprecated. In April 2027, google-auth will raise its minimum requirements to enforce grpcio >= 1.83.0. For more details on Google Cloud's post-quantum security migration, visit: https://cloud.google.com/security/resources/post-quantum-cryptography
  warnings.warn(

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem
['gcp-public-data-arco-era5/co/model-level-moisture.zarr', 'gcp-public-data-arco-era5/co/model-level-moisture.zarr-v2', 'gcp-public-data-arco-era5/co/model-level-wind.zarr', 'gcp-public-data-arco-era5/co/model-level-wind.zarr-v2', 'gcp-public-data-arco-era5/co/single-level-forecast.zarr', 'gcp-public-data-arco-era5/co/single-level-forecast.zarr-v2', 'gcp-public-data-arco-era5/co/single-level-reanalysis.zarr', 'gcp-public-data-arco-era5/co/single-level-reanalysis.zarr-v2', 'gcp-public-data-arco-era5/co/single-level-surface.zarr', 'gcp-public-data-arco-era5/co/single-level-surface.zarr-v2']

Let’s open the single-level-reanalysis Zarr file.

reanalysis = xr.open_zarr(
    'gs://gcp-public-data-arco-era5/co/single-level-reanalysis.zarr',
    chunks={'time': 48},
    consolidated=True,
)
Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

print(f'size: {reanalysis.nbytes / (1024 ** 4)} TB')
size: 28.02835009436967 TB

That’s ... a big file! But Xarray is just lazy loading the data. We can access the dataset’s metadata:

reanalysis
Loading...

Let’s look at the mean sea-level pressure variable.

msl = reanalysis.msl
msl
Loading...

There are two dimensions to this variable ... time and values. The former is straightforward:

msl.time
Loading...

The time resolution is hourly, commencing at 0000 UTC 1 January 1979 and running through 2300 UTC 31 August 2021.

The second dimension, values, represents the actual data values. In order to usefully visualize and/or analyze it, we will need to regrid it onto a standard cartesian (in this case, latitude-longitude) grid.

Danger!

It might be tempting to run the code cell msl.values here, but doing so will force all the data to be actively read into memory! Since this is a very large dataset, we definitely don't want to do that!

Regrid to cartesian coordinates

These reanalyses are in their native, Guassian coordinates. We will define and use several functions to convert them to a lat-lon grid, using several functions described in the ARCO ERA-5 GCP example notebooks

def mirror_point_at_360(ds):
  extra_point = (
      ds.where(ds.longitude == 0, drop=True)
      .assign_coords(longitude=lambda x: x.longitude + 360)
  )
  return xr.concat([ds, extra_point], dim='values')

def build_triangulation(x, y):
  grid = np.stack([x, y], axis=1)
  return scipy.spatial.Delaunay(grid)

def interpolate(data, tri, mesh):
  indices = tri.find_simplex(mesh)
  ndim = tri.transform.shape[-1]
  T_inv = tri.transform[indices, :ndim, :]
  r = tri.transform[indices, ndim, :]
  c = np.einsum('...ij,...j', T_inv, mesh - r)
  c = np.concatenate([c, 1 - c.sum(axis=-1, keepdims=True)], axis=-1)
  result = np.einsum('...i,...i', data[:, tri.simplices[indices]], c)
  return np.where(indices == -1, np.nan, result)

Select a particular time range from the dataset

ds93 = msl.sel(time=slice('1993-03-13T18:00:00','1993-03-13T19:00:00')).compute().pipe(mirror_point_at_360)
ds93
Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem

Could not determine bucket type for bucket name gcp-public-data-arco-era5: Your default credentials were not found. To set up Application Default Credentials, see https://cloud.google.com/docs/authentication/external/set-up-adc for more information., falling back to GCSFileSystem
Loading...

Regrid to a lat-lon grid.

tri = build_triangulation(ds93.longitude, ds93.latitude)

longitude = np.linspace(0, 360, num=360*4+1)
latitude = np.linspace(-90, 90, num=180*4+1)

mesh = np.stack(np.meshgrid(longitude, latitude, indexing='ij'), axis=-1)

grid_mesh = interpolate(ds93.values, tri, mesh)

Construct an Xarray DataArray from the regridded array.

da = xr.DataArray(data=grid_mesh,
                dims=["time", "longitude", "latitude"],
                coords=[('time', ds93.time.data), ('longitude', longitude), ('latitude', latitude)],
                name='msl')

Add some metadata to the DataArray’s coordinate variables.

da.longitude.attrs['long_name'] = 'longitude'
da.longitude.attrs['short_name'] = 'lon'
da.longitude.attrs['units'] = 'degrees_east'
da.longitude.attrs['axis'] = 'X'
da.latitude.attrs['long_name'] = 'latitude'
da.latitude.attrs['short_name'] = 'lat'
da.latitude.attrs['units'] = 'degrees_north'
da.latitude.attrs['axis'] = 'Y'
da.time.attrs['long_name'] = 'time'
da
Loading...

Select only the first time in the DataArray and convert to hPa.

slp = da.isel(time=0)/100.

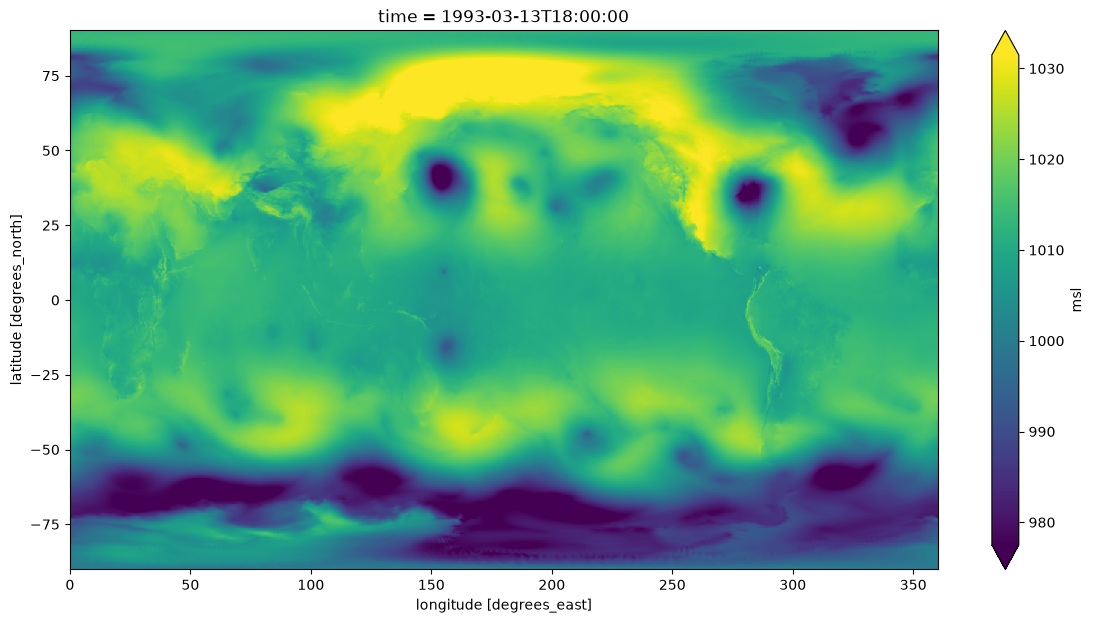

Get a quick look at the grid to ensure all looks good.

slp.plot(x='longitude', y='latitude', cmap='viridis', size=7, aspect=2, add_colorbar=True, robust=True)
<Figure size 1400x700 with 2 Axes>

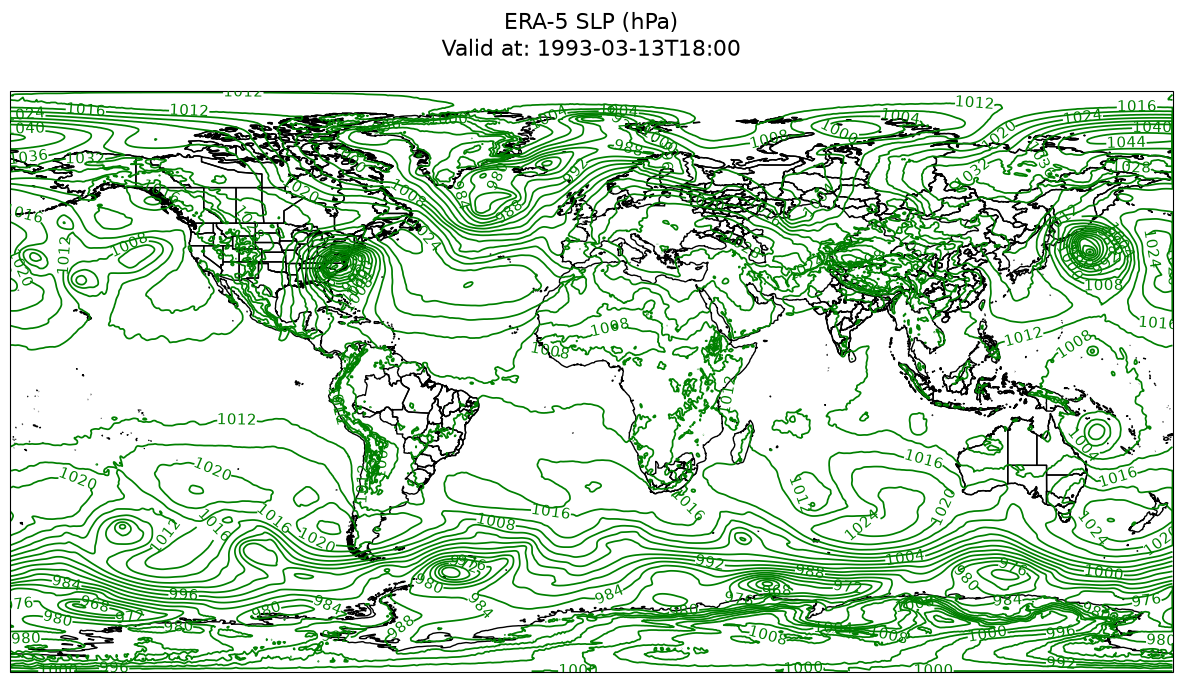

Plot the data on a map

nx,ny = np.meshgrid(longitude,latitude,indexing='ij')
timeStr = '1993-03-13T18:00'

tl1 = f'ERA-5 SLP (hPa)'
tl2 = f'Valid at: {timeStr}'
title_line = (tl1 + '\n' + tl2 + '\n') # concatenate the two strings and add return characters
cint = np.arange(900,1080,4)
res = '50m'
fig = plt.figure(figsize=(15,10))
ax = plt.subplot(1,1,1,projection=ccrs.PlateCarree())
#ax.set_extent ([lonW+constrainLon,lonE-constrainLon,latS+constrainLat,latN-constrainLat])
ax.add_feature(cfeature.COASTLINE.with_scale(res))
ax.add_feature(cfeature.STATES.with_scale(res))
#CL = slp.cf.plot.contour(levels=cint,linewidths=1.25,colors='green')
CL = ax.contour(nx, ny, slp, transform=ccrs.PlateCarree(),levels=cint, linewidths=1.25, colors='green')
ax.clabel(CL, inline_spacing=0.2, fontsize=11, fmt='%.0f')

title = plt.title(title_line,fontsize=16)

/home/runner/micromamba/envs/ERA5_interactive/lib/python3.14/site-packages/cartopy/io/__init__.py:263: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/50m_physical/ne_50m_coastline.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

/home/runner/micromamba/envs/ERA5_interactive/lib/python3.14/site-packages/cartopy/io/__init__.py:263: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/50m_cultural/ne_50m_admin_1_states_provinces_lakes.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)
<Figure size 1500x1000 with 1 Axes>

Summary

In this notebook, we have accessed one of the ARCO ERA-5 datasets, regridded from the ECMWF native spectral to cartesian lat-lon coordinates, and created a map of sea-level pressure for a particular date and time.
