MetPy Declarative - 300 hPa - The MetPy Cookbook

By: Kevin Goebbert

This example uses the declarative syntax available through the MetPy package to allow a more convenient method for creating simple maps of atmospheric data. The key thing the declarative language does is to reduce the number of packages that users will need to know in detail and instead allow them to set key parameters to get the map they desire. One key element is the use of xarray as the data object, which allows coordinate information to be associated with atmospheric variables.

from datetime import datetime

import metpy.calc as mpcalc
from metpy.plots.declarative import *
from metpy.units import units
import xarray as xr

Open dataset using xarray module and subset global GFS to be over the CONUS.

ds = xr.open_dataset('https://thredds.ucar.edu/thredds/dodsC/casestudies'
                     '/python-gallery/GFS_20101026_1200.nc').sel(
    lon=slice(360-150, 360-50, 2), lat=slice(65, 20, 2))

Calculate Variable and Add to Dataset¶

Here it is demonstrated how you can calculate a new variable and add it to the xarray dataset (ds) so that it can be plotted with the declarative syntax. The key to adding a variable to an xarray dataset for use in the declarative syntax is the need to add a grid_mapping and units attribute.

# Calculate New Variables and place into Xarray Dataset
uwnd = ds['u-component_of_wind_isobaric']
vwnd = ds['v-component_of_wind_isobaric']

# Compute wind speed using MetPy
wspd = mpcalc.wind_speed(uwnd, vwnd)

# Place wind speed (wspd) into xarray dataset and attach needed attributes
ds['wind_speed'] = wspd

Declarative Plot¶

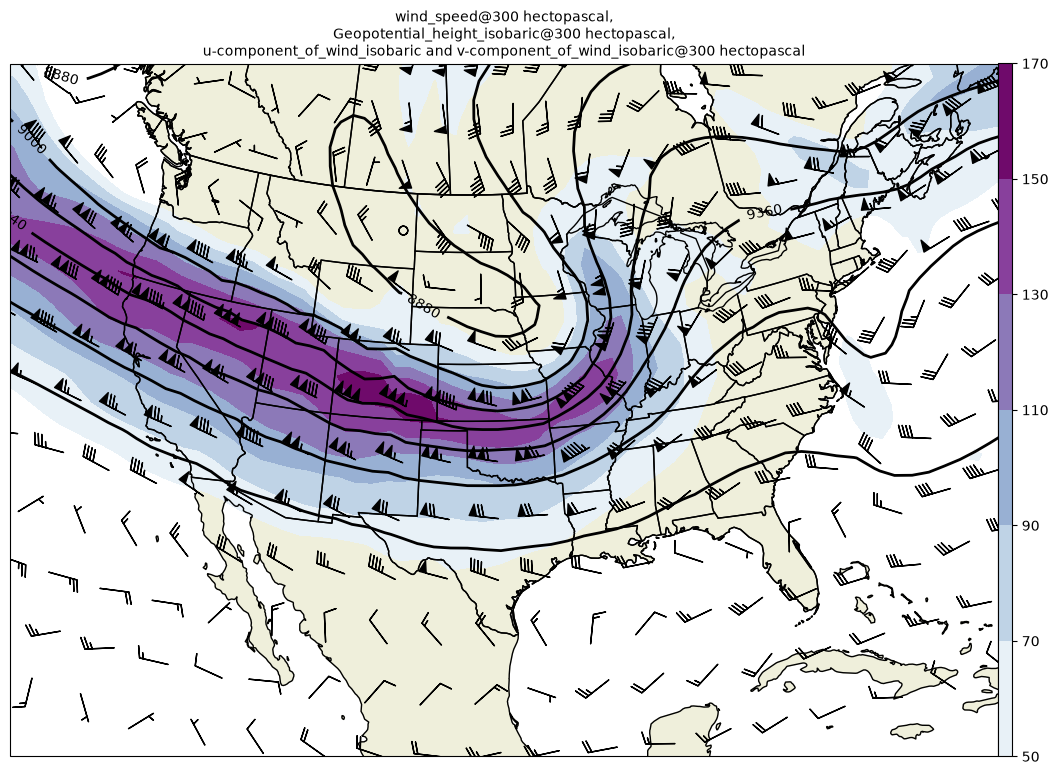

The following settings create a single panel map plot of 300 hPa geopotential heights, wind speed, and wind barbs.

# Countour Plot of Geopotential Heights
contour = ContourPlot()
contour.data = ds
contour.time = datetime(2010, 10, 31, 12)
contour.field = 'Geopotential_height_isobaric'
contour.level = 300 * units.hPa
contour.linecolor = 'black'
contour.linestyle = '-'
contour.linewidth = 2
contour.clabels = True
contour.contours = list(range(0, 20000, 120))

# Colorfilled Plot of Wind Speed
cfill = FilledContourPlot()
cfill.data = ds
cfill.field = 'wind_speed'
cfill.level = 300 * units.hPa
cfill.colormap = 'BuPu'
cfill.contours = list(range(50, 171, 20))
cfill.colorbar = 'vertical'
cfill.plot_units = 'kt'

# Plot wind barbs
barb = BarbPlot()
barb.data = ds
barb.level = 300 * units.hPa
barb.field = ['u-component_of_wind_isobaric', 'v-component_of_wind_isobaric']
barb.skip = (3, 3)
barb.color = 'black'
barb.barblength = 6.5
barb.earth_relative = False
barb.plot_units = 'kt'

# Panel for plot with Map features
panel = MapPanel()
panel.layout = (1, 1, 1)
panel.area = (-124, -72, 20, 53)
panel.projection = 'lcc'
panel.layers = ['coastline', 'borders', 'states', 'land']
panel.plots = [cfill, contour, barb]

# Bringing it all together
pc = PanelContainer()
pc.size = (15, 9)
pc.panels = [panel]

pc.show()

Could not find variable corresponding to the value of grid_mapping: LatLon_Projection

Could not find variable corresponding to the value of grid_mapping: LatLon_Projection

Could not find variable corresponding to the value of grid_mapping: LatLon_Projection
