Real Data Cross-Section Example

from datetime import datetime

import matplotlib.pyplot as plt
import metpy.calc as mpcalc
from metpy.units import units
import numpy as np
from siphon.simplewebservice.wyoming import WyomingUpperAir

def vertical_interpolate(vcoord_data, interp_var, interp_levels):
    """A function to interpolate sounding data from each station to
    every millibar. Assumes a log-linear relationship.

    Input
    -----
    vcoord_data : A 1D array of vertical level values (e.g., pressure from a radiosonde)
    interp_var : A 1D array of the variable to be interpolated to all pressure levels
    vcoord_interp_levels : A 1D array containing veritcal levels to interpolate to

    Return
    ------
    interp_data : A 1D array that contains the interpolated variable on the interp_levels
    """
    # Make veritcal coordinate data and grid level log variables
    lnp = np.log(vcoord_data)
    lnp_intervals = np.log(interp_levels)

    # Use numpy to interpolate from observed levels to grid levels
    interp_data = np.interp(lnp_intervals[::-1], lnp[::-1], interp_var[::-1])[::-1]

    # Mask for missing data (generally only near the surface)
    mask_low = interp_levels > vcoord_data[0]
    mask_high = interp_levels < vcoord_data[-1]
    interp_data[mask_low] = interp_var[0]
    interp_data[mask_high] = interp_var[-1]

    return interp_data

def radiosonde_cross_section(stns, data, start=1000, end=100, step=10):
    """This function takes a list of radiosonde observation sites with a
    dictionary of Pandas Dataframes with the requesite data for each station.

    Input
    -----
    stns : List of statition three-letter identifiers
    data : A dictionary of Pandas Dataframes containing the radiosonde observations
    for the stations
    start : interpolation start value, optional (default = 1000 hPa)
    end : Interpolation end value, optional (default = 100 hPa)
    step : Interpolation interval, option (default = 10 hPa)

    Return
    ------
    cross_section : A dictionary that contains the following variables

        grid_data : An interpolated grid with 100 points between the first and last station,
        with the corresponding number of vertical points based on start, end, and interval
        (default is 90)
        obs_distance : An array of distances between each radiosonde observation location
        x_grid : A 2D array of horizontal direction grid points
        p_grid : A 2D array of vertical pressure levels
        ground_elevation : A representation of the terrain between radiosonde observation sites
        based on the elevation of each station converted to pressure using the standard
        atmosphere

    """
    from pyproj import Geod
    from scipy.interpolate import griddata

    # Common data units
    data_units = {'pressure': 'hPa',
                  'height': 'meter',
                  'temperature': 'degC',
                  'dewpoint': 'degC',
                  'direction': 'degrees',
                  'speed': 'knot',
                  'u_wind': 'knot',
                  'v_wind': 'knot',
                  'station': None,
                  'station_number': None,
                  'time': None,
                  'latitude': 'degrees',
                  'longitude': 'degrees',
                  'elevation': 'meter',
                  'ice_point_temperature': 'degC',
                  'relative_humidity': 'percent',
                  'humidity_wrt_ice': 'percent',
                  'mixing_ratio': 'g/kg',
                  'pw': 'millimeter'}
    # Set up vertical grid, largest value first (high pressure nearest surface)
    vertical_levels = np.arange(start, end-1, -step) * units(data_units['pressure'])

    # Number of vertical levels and stations
    plevs = len(vertical_levels)
    nstns = len(stns)

    # Create dictionary of interpolated values and include neccsary attribute data
    # including lat, lon, and elevation of each station
    lats = []
    lons = []
    elev = []
    keys = ['longitude', 'latitude', 'pressure', 'height', 'temperature',
            'dewpoint', 'mixing_ratio', 'direction', 'speed', 'u_wind',
            'v_wind']
    tmp_grid = dict.fromkeys(keys)

    # Interpolate all variables for each radiosonde observation
    # Temperature, Dewpoint, U-wind, V-wind
    for key in tmp_grid.keys():
        tmp_grid[key] = np.empty((nstns, plevs))
        for station, loc in zip(stns, range(nstns)):
            if key == 'pressure':
                lats.append(data[station].latitude[0])
                lons.append(data[station].longitude[0])
                elev.append(data[station].height[0])
                tmp_grid[key][loc, :] = vertical_levels
            else:
                tmp_grid[key][loc, :] = vertical_interpolate(
                    data[station]['pressure'].values, data[station][key].values,
                    vertical_levels.m)

    # Compute distance between each station using Pyproj
    g = Geod(ellps='sphere')
    _, _, dist = g.inv(nstns*[lons[0]], nstns*[lats[0]], lons[:], lats[:])

    # Compute sudo ground elevation in pressure from standard atmsophere and the elevation
    # of each station
    ground_elevation = mpcalc.height_to_pressure_std(np.array(elev) * units('meters'))

    # Set up grid for 2D interpolation
    grid = dict.fromkeys(keys)
    x = np.linspace(dist[0], dist[-1], 100)
    nx = len(x)

    pp, xx = np.meshgrid(vertical_levels.m, x)
    pdist, ddist = np.meshgrid(vertical_levels.m, dist)

    # Interpolate to 2D grid using scipy.interpolate.griddata
    for key in tmp_grid.keys():
        grid[key] = np.empty((nx, plevs)) * units(data_units[key])
        grid[key][:] = griddata((ddist.flatten(), pdist.flatten()),
                                tmp_grid[key][:].flatten(),
                                (xx, pp),
                                method='cubic') * units(data_units[key])

    # Gather needed data in dictionary for return
    cross_section = {'grid_data': grid, 'obs_distance': dist * units.meter,
                     'x_grid': xx * units.meter, 'p_grid': pp * units.hPa, 'elevation': ground_elevation}
    return cross_section

# A roughly east-west cross section
stn_list = ['DNR', 'LBF', 'OAX', 'DVN', 'DTX', 'BUF']

# Set a date and hour of your choosing
date = datetime(2019, 6, 1, 0)

# Set up empty dictionary to fill with Wyoming Sounding data
df = {}

# Loop over stations to get data and put into dictionary
for station in stn_list:
    df[station] = WyomingUpperAir.request_data(date, station)

xsect = radiosonde_cross_section(stn_list, df)

potemp = mpcalc.potential_temperature(
    xsect['p_grid'], xsect['grid_data']['temperature'])

# Start Figure, set big size for cross section
fig = plt.figure(figsize=(17, 11))

# Specify plotting axis (single panel)
ax = plt.subplot(111)

# Set y-scale to be log since pressure decreases exponentially with height
ax.set_yscale('log')

# Set limits, tickmarks, and ticklabels for y-axis
ax.set_ylim([1030, 101])
ax.set_yticks(range(1000, 101, -100))
ax.set_yticklabels(range(1000, 101, -100))

# Invert the y-axis since pressure decreases with increasing height
ax.yaxis_inverted()

# Plot the sudo elevation on the cross section
ax.fill_between(xsect['obs_distance'], xsect['elevation'].m, 1030,
                where=xsect['elevation'].m <= 1030, facecolor='lightgrey',
                interpolate=True, zorder=10)
# Don't plot xticks
plt.xticks([], [])

# Plot wind barbs for each sounding location
for stn, stn_name in zip(range(len(stn_list)), stn_list):
    ax.axvline(xsect['obs_distance'][stn], ymin=0, ymax=1,
               linewidth=2, color='blue', zorder=11)
    ax.text(xsect['obs_distance'][stn], 1100, stn_name, ha='center', color='blue')
    ax.barbs(xsect['obs_distance'][stn], df[stn_name]['pressure'][::2],
             df[stn_name]['u_wind'].values[::2, None],
             df[stn_name]['v_wind'].values[::2, None], zorder=15)

# Plot smoothed potential temperature grid (K)
cs = ax.contour(xsect['x_grid'], xsect['p_grid'], mpcalc.smooth_gaussian(potemp, 1),
                range(0, 500, 5), colors='red')
ax.clabel(cs, fmt='%i')

# Plot smoothed mixing ratio grid (g/kg)
cs = ax.contour(xsect['x_grid'], xsect['p_grid'],
                mpcalc.smooth_gaussian(xsect['grid_data']['mixing_ratio'], 2),
                range(0, 41, 2), colors='tab:green', linestyles='dotted')
ax.clabel(cs, fmt='%i')

# Add some informative titles

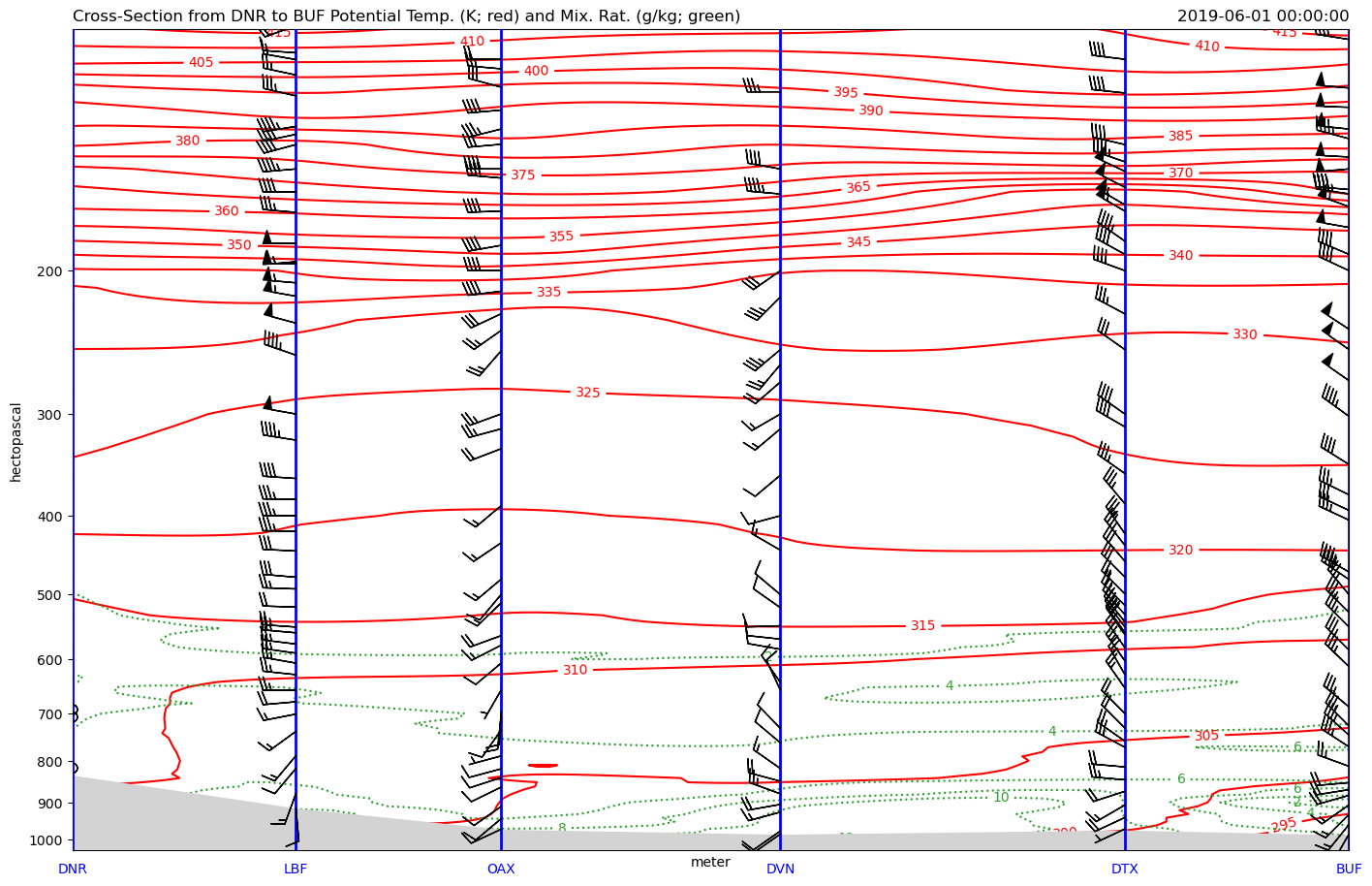

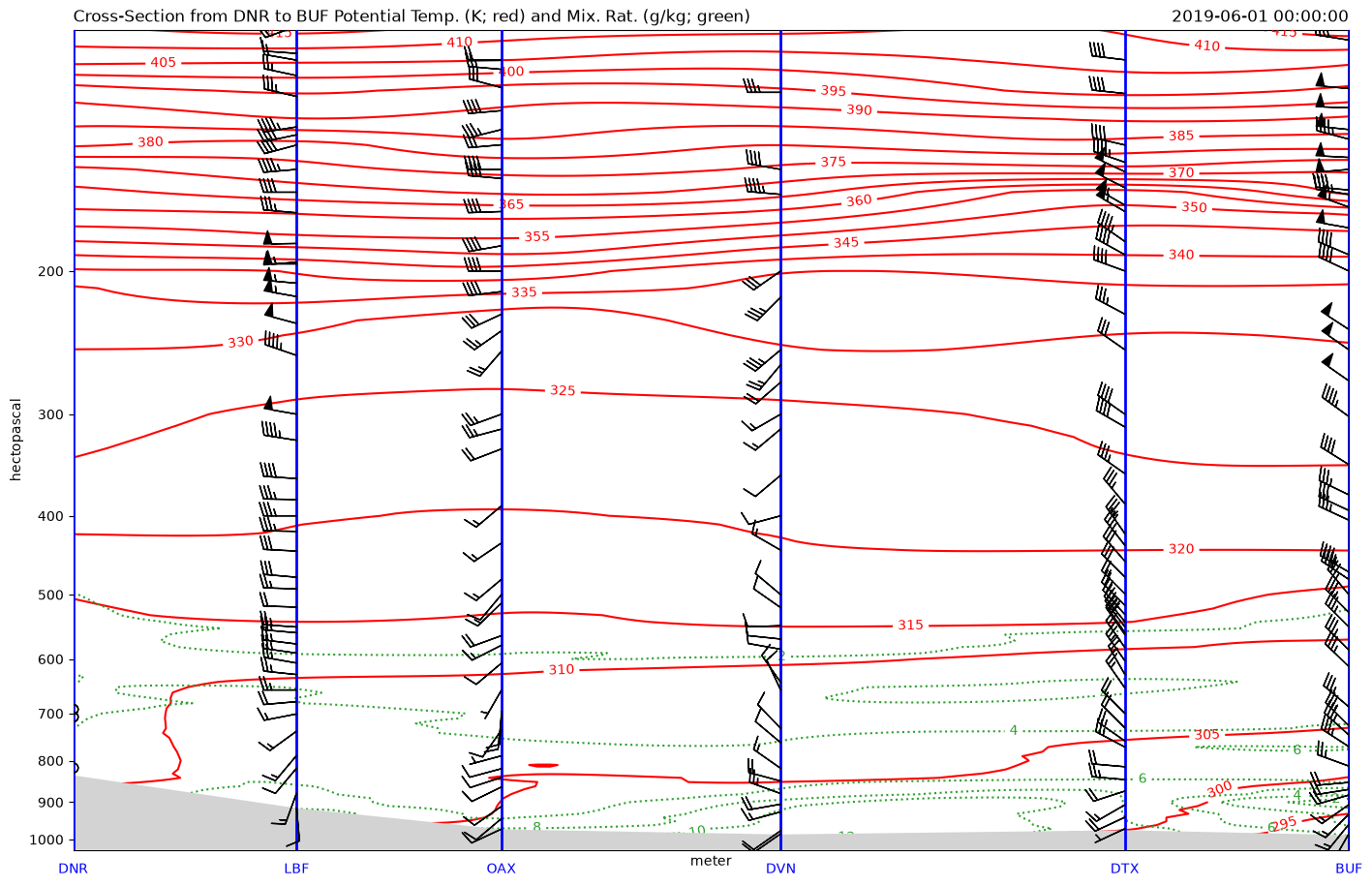

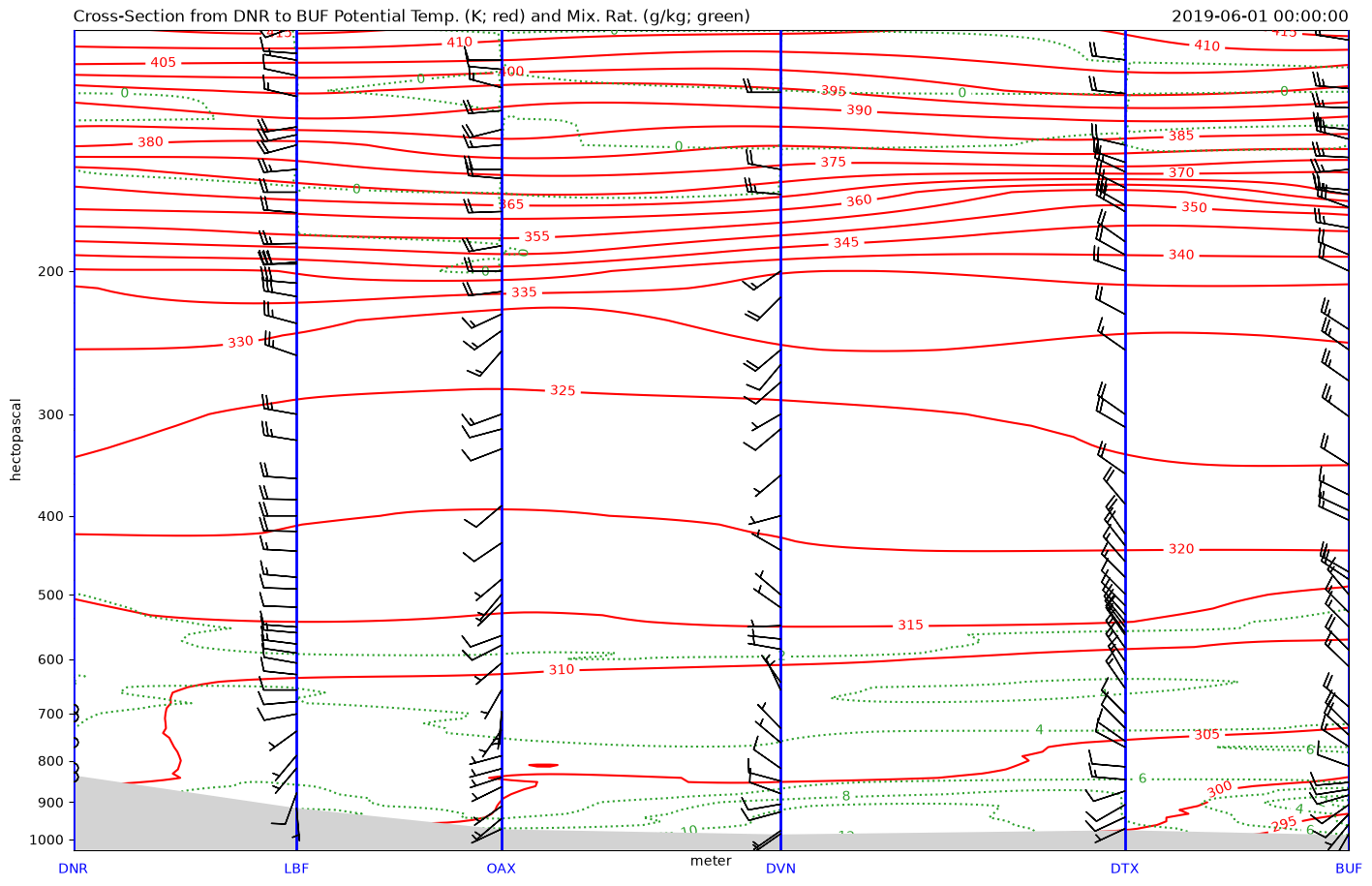

plt.title('Cross-Section from DNR to BUF Potential Temp. '
          '(K; red) and Mix. Rat. (g/kg; green)', loc='left')
plt.title(date, loc='right');
