National Center for Environmental Prediction (NCEP) Stage IV Precipitation: Spatial Averaging

---

Overview

Due to its high-resolution grid spacing, Hourly Stage IV Precipitation is a highly beneficial tool for analyzing precipitation observations throughout the contiguous United States. Stage IV data is plotted on a 4 km by 4 km polar-stereographic grid, allowing for identification of discontinuities as a result of the operational process. The data is produced by the National Weather Service (NWS) River Forecast Centers (RFCs) and the National Center for Environmental Predication (NCEP). More information on this dataset can be found at the following link.

This Pythia “cook book” will teach the following concepts:

1. How to read in NCEP Stage IV Precipitation hourly accumulation data using Xarray from the Zarr archive hosted by Amazon Web Services.

2. How to subset the Stage IV Precipitation data over a region of interest using Xarray and produce a “quick look” plot using cartopy to view a single timestep of hourly accumulated precipitation.

3. How to average the hourly precipitation accumulation over the subsetted spatial domain desribed in teaching concept #2 to produce a hourly resolution timeseries over some spatial domain.

Prerequisites

This notebook will utilize functionality of numpy, Xarray, cartopy, and matplotlib. Having some familiarity with each of these packages will allow for a better learning experience. See the table below for links to Pythia Foundations lessons that cover relevant topics.

Concepts	Importance	Notes
Numpy Basics	Necessary
Matplotlib Basics	Necessary
Introduction to Cartopy	Necessary
Introduction to Xarray	Necessary
Understanding of NetCDF	Helpful	Familiarity with metadata structure

• Time to learn: 30 Minutes

---

Imports

#entire packages
import fsspec
import numpy as np
import xarray as xr

#cartopy
import cartopy.crs as ccrs
import cartopy.feature as cfeature
from cartopy.mpl.gridliner import LONGITUDE_FORMATTER, LATITUDE_FORMATTER

#matplotlib
import matplotlib.pyplot as plt
import matplotlib.colors as mplc
import matplotlib.patches as mpatches
from mpl_toolkits.axes_grid1 import make_axes_locatable

1: Define link to Stage IV Precipitation data and read it using ffspec and Xarray

The following cell defines a URL that points to the Zarr formatted Stage IV precipitation data archive. Once defined, the fsspec package is addition with Xarray to read the Stage IV data into an Xarray Dataset. Once completed, we grab the variable that we are interested in, which results in a Xarray DataArray.

Additional Information on Stage IV Precipitation

• The timezone for the data is Universal Time Coorindated (UTC).
• The data variable we will be working with is 1-hour accumulation. The default unit is kg/m^2, which is virtually equivalent to units of mm.
• This data is defined on a polar stereographic grid. However, the coordinates for the data are provided in longitude/latitude, which makes plotting on a geographic (i.e., Plate Carree) projection easy in cartopy.

#Define URL to Stage IV Precipitation data in Zaar
zarr_url = f's3://mdmf/gdp/stageiv_combined.zarr/'

#Use fsspec to initialize a URL to the data via Amazon Web Services
fs2 = fsspec.filesystem('s3', anon=True, endpoint_url='https://usgs.osn.mghpcc.org/')

#Open the Zarr file using xarray
ds = xr.open_dataset(fs2.get_mapper(zarr_url), engine='zarr', backend_kwargs={'consolidated':True}, chunks={})

#Grab the data that represents 1-hour accumulation
da_hourly_precip = ds['Total_precipitation_surface_1_Hour_Accumulation']

#Display the DataArray
display(da_hourly_precip)

<xarray.DataArray 'Total_precipitation_surface_1_Hour_Accumulation' (
                                                                     time: 191948,
                                                                     y: 881,
                                                                     x: 1121)> Size: 758GB
dask.array<open_dataset-Total_precipitation_surface_1_Hour_Accumulation, shape=(191948, 881, 1121), dtype=float32, chunksize=(1597, 80, 102), chunktype=numpy.ndarray>
Coordinates:
    lat      (x, y) float32 4MB dask.array<chunksize=(102, 80), meta=np.ndarray>
    lon      (x, y) float32 4MB dask.array<chunksize=(102, 80), meta=np.ndarray>
  * time     (time) datetime64[ns] 2MB 2002-01-01 ... 2023-11-30T23:00:00
Dimensions without coordinates: y, x
Attributes:
    cell_methods:   time: sum (interval: 1 hr)
    description:    Total precipitation
    grid_mapping:   crs: lat lon
    long_name:      Total precipitation (1_Hour Accumulation) @ Ground or wat...
    standard_name:  precipitation_amount
    units:          kg m^-2

xarray.DataArray

'Total_precipitation_surface_1_Hour_Accumulation'

• time: 191948
• y: 881
• x: 1121

• dask.array<chunksize=(1597, 80, 102), meta=np.ndarray>

  Array Chunk Bytes 706.20 GiB 49.71 MiB Shape (191948, 881, 1121) (1597, 80, 102) Dask graph 15972 chunks in 2 graph layers Data type float32 numpy.ndarray

• Coordinates: (3)
  • lat
    (x, y)
    float32
    dask.array<chunksize=(102, 80), meta=np.ndarray>

    units :

    degrees_north

    Array Chunk Bytes 3.77 MiB 31.88 kiB Shape (1121, 881) (102, 80) Dask graph 132 chunks in 2 graph layers Data type float32 numpy.ndarray

  • lon
    (x, y)
    float32
    dask.array<chunksize=(102, 80), meta=np.ndarray>

    units :

    degrees_east

    Array Chunk Bytes 3.77 MiB 31.88 kiB Shape (1121, 881) (102, 80) Dask graph 132 chunks in 2 graph layers Data type float32 numpy.ndarray

  • time
    (time)
    datetime64[ns]
    2002-01-01 ... 2023-11-30T23:00:00

    bounds :

    time_bounds

    long_name :

    GRIB forecast or observation time

    standard_name :

    time

    array(['2002-01-01T00:00:00.000000000', '2002-01-01T01:00:00.000000000',
           '2002-01-01T02:00:00.000000000', ..., '2023-11-30T21:00:00.000000000',
           '2023-11-30T22:00:00.000000000', '2023-11-30T23:00:00.000000000'],
          dtype='datetime64[ns]')

• Indexes: (1)
  • time
    PandasIndex

    PandasIndex(DatetimeIndex(['2002-01-01 00:00:00', '2002-01-01 01:00:00',
                   '2002-01-01 02:00:00', '2002-01-01 03:00:00',
                   '2002-01-01 04:00:00', '2002-01-01 05:00:00',
                   '2002-01-01 06:00:00', '2002-01-01 07:00:00',
                   '2002-01-01 08:00:00', '2002-01-01 09:00:00',
                   ...
                   '2023-11-30 14:00:00', '2023-11-30 15:00:00',
                   '2023-11-30 16:00:00', '2023-11-30 17:00:00',
                   '2023-11-30 18:00:00', '2023-11-30 19:00:00',
                   '2023-11-30 20:00:00', '2023-11-30 21:00:00',
                   '2023-11-30 22:00:00', '2023-11-30 23:00:00'],
                  dtype='datetime64[ns]', name='time', length=191948, freq=None))

• Attributes: (6)

  cell_methods :

  time: sum (interval: 1 hr)

  description :

  Total precipitation

  grid_mapping :

  crs: lat lon

  long_name :

  Total precipitation (1_Hour Accumulation) @ Ground or water surface

  standard_name :

  precipitation_amount

  units :

  kg m^-2

2: Data Indexing and “Quick Look” Plotting

2.1: Index the Stage IV Precipitation Data in space and time using Xarray

The following cell indexes the hourly accumulated variable that we pulled into Xarray in both the space (lon, lat) and time dimensions. This allows the user to focus on viewing a specific precipitation event for some location and some time range of their choice.

#Define the bounds for our spatial index
left_lon  = -75
right_lon = -70
upper_lat = 42
lower_lat = 39

#Define a boolean statement that we will use to index the precipitation data in space
#Note that the numbers used for this index statement are degress of longitude and latidude
space_index = (da_hourly_precip.lon >= left_lon) & (da_hourly_precip.lon <= right_lon) & (da_hourly_precip.lat >= lower_lat) & (da_hourly_precip.lat <= upper_lat)

#First index the data in space
da_hourly_precip_space_indexed = da_hourly_precip.where(space_index.compute(), drop=True)

#Then index the data in time based on some start and end times that we define below

#Define start and end time string (in UTC timezone)
start_time_str = '2021-09-01 09:00'
end_time_str   = '2021-09-02 15:00'

#Now do the time index. It seems the times are not sorted by default, so sort them before indexing.
da_hourly_precip_space_and_time_indexed = da_hourly_precip_space_indexed.sortby('time').sel(time=slice(start_time_str, end_time_str))

2.2: Produce a plot of the indexed precipitation data on a cartopy map

The following cell sets up a cartopy figure that is projection aware. It then plots a random timestep from our spatially and temporally subset 1-hour precipitation accumulation data on the cartopy figure. The colorbar is set to linearaly scale to the min and max values of the timestep that we are plotting using the numpy “linspace” function. In addition, we apply a mask to the precipitation timestep that we are plotting so values below an arbitrarily small value (in this case 0.01 mm) so that colors are not plotted where precipitation values are equal to zero.

#Define plot CRS
plot_crs = ccrs.PlateCarree()
data_crs = ccrs.PlateCarree()

#Define lat/lon extend, ticks, and number of ticks we want on the map
lon_lat_extent   = [left_lon, right_lon, lower_lat, upper_lat]
lon_lat_ticks    = [left_lon, right_lon, lower_lat, upper_lat]
lon_lat_tick_num = [5, 5]

#Define a random time index integer for plotting a "quick look"
time_index = 20

#Define plotting variable
plotting_variable = da_hourly_precip_space_and_time_indexed.isel(time=time_index)

#Define cartopy axis
fig, ax = plt.subplots(subplot_kw={'projection': plot_crs}, figsize=(10,5))

#Add map features
ax.add_feature(cfeature.NaturalEarthFeature(category='physical', name='coastline', scale='10m', facecolor='None', zorder=10))
ax.add_feature(cfeature.NaturalEarthFeature(category='physical', name='minor_islands', scale='10m', facecolor='None', zorder=10))
ax.add_feature(cfeature.NaturalEarthFeature(category='cultural', name='admin_1_states_provinces', scale='10m', facecolor='None', zorder=10))

#Set extent of map
ax.set_extent((lon_lat_extent[0], lon_lat_extent[1] , lon_lat_extent[2], lon_lat_extent[3]), crs=plot_crs)

#Define longitude and latitude ticks using "linspace"
map_xticks = np.linspace(lon_lat_ticks[0], lon_lat_ticks[1], num=lon_lat_tick_num[0], endpoint=True).round(decimals=2)
map_yticks = np.linspace(lon_lat_ticks[2], lon_lat_ticks[3], num=lon_lat_tick_num[1], endpoint=True).round(decimals=2)

#Setting tick locations for lon/lat (degrees; projection = plot_crs)
ax.set_xticks(map_xticks, crs=plot_crs)
ax.set_yticks(map_yticks, crs=plot_crs)

#Setting tick locations and labels for lon/lat (degrees; projection = plot_crs)
ax.set_xticks(map_xticks, crs=plot_crs)
ax.set_yticks(map_yticks, crs=plot_crs)
ax.set_xticklabels(map_xticks)
ax.set_yticklabels(map_yticks)

#Add formatter to lon/lat ticks (degree symbol & direction label)
ax.xaxis.set_major_formatter(LONGITUDE_FORMATTER)
ax.yaxis.set_major_formatter(LATITUDE_FORMATTER)

#Turn on grid and set tick paramters for grid
ax.grid(True)
ax.tick_params(axis='both', which='major', pad=8, length=8, grid_linewidth=0.5, grid_linestyle='--', grid_color='black')

#Set title for this "quick look" plot

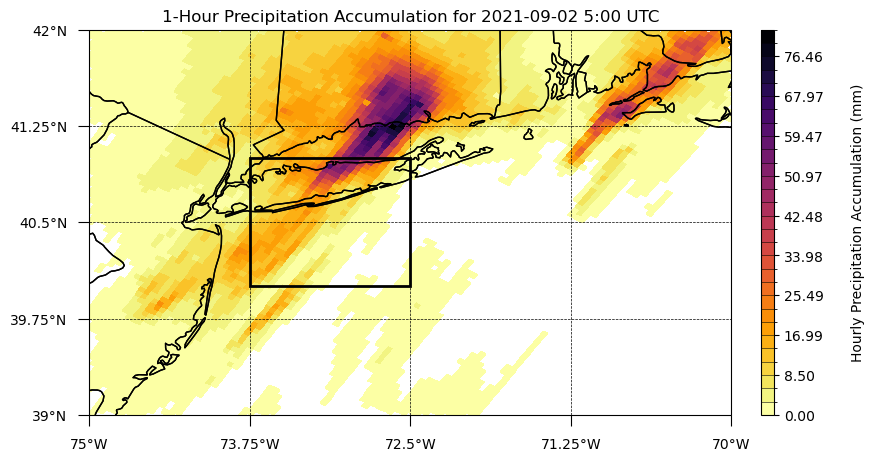

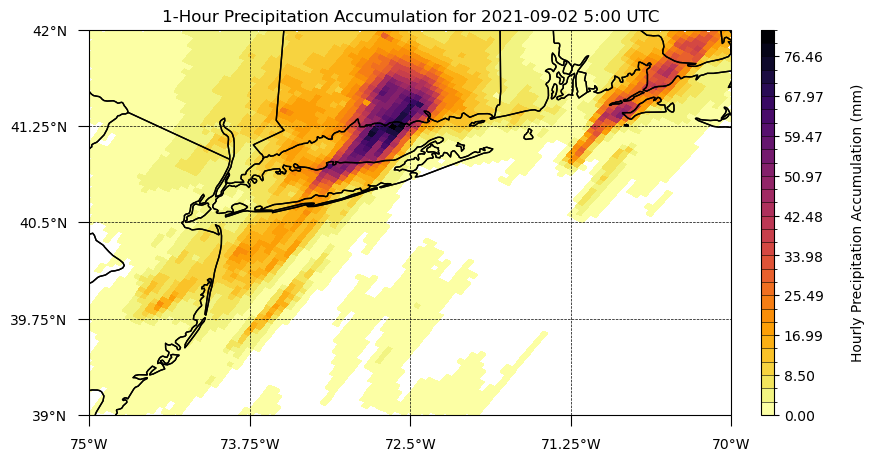

ax.set_title(f'1-Hour Precipitation Accumulation for {str(plotting_variable.time.values)[0:10]} {str(plotting_variable.time.values)[12:16]} UTC')

#Define colorbar levels, colorbar colormap, and colorbar norms for plotting
level_min  = plotting_variable.min()
level_max  = plotting_variable.max()
levels     = np.linspace(level_min, level_max, 30)
cmap       = plt.get_cmap('inferno_r').copy()
norm       = mplc.BoundaryNorm(levels, ncolors=cmap.N, clip=False)

#Plot pcolormesh. Note that in order to not plot precipitation values equal to zero, we mask values below some arbitrarily low threshold.
pcolormesh = ax.pcolormesh(plotting_variable.lon, plotting_variable.lat, np.ma.masked_less(plotting_variable.transpose(), 0.01),
                           cmap=cmap, norm=norm, shading='nearest', alpha=1, transform=data_crs)
#Create colorbar for values
divider = make_axes_locatable(ax)
cax     = divider.append_axes("right", size="2%", pad=0.3, axes_class=plt.Axes)
cbar    = plt.colorbar(pcolormesh, cax=cax, orientation='vertical', spacing='uniform', ticks=list(levels[::3]), drawedges=True)
cbar.set_label('Hourly Precipitation Accumulation (mm)', color='black', labelpad=20)

/home/runner/miniconda3/envs/cookbook-dev/lib/python3.11/site-packages/cartopy/io/__init__.py:241: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/10m_physical/ne_10m_minor_islands.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

/home/runner/miniconda3/envs/cookbook-dev/lib/python3.11/site-packages/cartopy/io/__init__.py:241: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/10m_cultural/ne_10m_admin_1_states_provinces.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

left_lon_box  = -73.75
right_lon_box = -72.50
upper_lat_box = 41.00
lower_lat_box = 40.00

#Add rectangle around zoomed region
#https://scitools.org.uk/cartopy/docs/v0.5/matplotlib/introductory_examples/02.polygon.html
ax.add_patch(mpatches.Rectangle(xy=[left_lon_box, lower_lat_box],
                                width=abs((left_lon_box - right_lon_box)),
                                height=abs((lower_lat_box-upper_lat_box)),
                                edgecolor='black', linewidth=2, fill=False, alpha=1, zorder=4, transform=plot_crs))

fig

Subsection to the second section

a quick demonstration

of further and further

header levels

as well \(m = a * t / h\) text! Similarly, you have access to other \(\LaTeX\) equation functionality via MathJax (demo below from link),

(2)\[\begin{align} \dot{x} & = \sigma(y-x) \\ \dot{y} & = \rho x - y - xz \\ \dot{z} & = -\beta z + xy \end{align}\]

Check out any number of helpful Markdown resources for further customizing your notebooks and the Jupyter docs for Jupyter-specific formatting information. Don’t hesitate to ask questions if you have problems getting it to look just right.
