Openness Closeness Computation Notebook

import os
import time
import warnings
from pathlib import Path
import numpy as np
import geopandas as gpd
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
import matplotlib.ticker as mticker
import rasterio
from rasterio.enums import Resampling
from rasterio import features
from scipy.ndimage import maximum_filter, minimum_filter
from shapely.geometry import shape, MultiPolygon
from shapely.ops import unary_union

TARGET_BATHY_PATH = "../data/gifford_bathy.tif"

RADIUS_CELLS = 10         # Tightened lookup horizon to capture local channels (use 5 for finer details)
C_LARGE = -0.15            # Large scale multiplier parameter
C_SMALL = 0.0              # Small scale multiplier parameter
AREA_THRESHOLD = 750.0     # Adjusted minimum feature footprint filter (midpoint between 500 and 1000)

with rasterio.open(TARGET_BATHY_PATH) as src:
    B_raw = src.read(1)
    tif_profile = src.meta.copy()
    cell_size = src.transform[0]
    nodata_val = src.nodatavals[0]
    Z_grid = np.where(B_raw == nodata_val, np.nan, B_raw.astype(float)) if nodata_val is not None else B_raw.astype(float)

Z_grid = -Z_grid
compass_definitions = {
    "N":  (-1,  0), "NE": (-1,  1), "E":  ( 0,  1), "SE": ( 1,  1),
    "S":  ( 1,  0), "SW": ( 1, -1), "W":  ( 0, -1), "NW": (-1, -1)
}

geometry_meta = {}
for direction, (dr, dc) in compass_definitions.items():
    steps = np.arange(1, RADIUS_CELLS + 1)
    row_offsets = dr * steps
    col_offsets = dc * steps
    step_multiplier = np.sqrt(dr**2 + dc**2)
    distances = steps * cell_size * step_multiplier
    geometry_meta[direction] = {
        "row_offsets": row_offsets, "col_offsets": col_offsets, "distances": distances
    }

global_start_time = time.time()
rows, cols = Z_grid.shape
max_gamma_all_dirs, min_gamma_all_dirs = [], []

for direction, geom in geometry_meta.items():
    gamma_steps = np.full((RADIUS_CELLS, rows, cols), np.nan)
    for step_idx in range(RADIUS_CELLS):
        dr, dc, dist = geom["row_offsets"][step_idx], geom["col_offsets"][step_idx], geom["distances"][step_idx]
        Z_shifted = np.roll(Z_grid, shift=(-dr, -dc), axis=(0, 1))

        # Boundary Edge Buffer Isolation
        boundary_mask = np.ones((rows, cols), dtype=bool)
        if dr > 0: boundary_mask[:dr, :] = False
        if dr < 0: boundary_mask[dr:, :] = False
        if dc > 0: boundary_mask[:, :dc] = False
        if dc < 0: boundary_mask[:, dc:] = False
        Z_shifted[~boundary_mask] = np.nan
        gamma_steps[step_idx] = np.arctan((Z_shifted - Z_grid) / dist)

    with np.errstate(all='ignore'):
        with warnings.catch_warnings():
            warnings.simplefilter("ignore", category=RuntimeWarning)
            max_gamma_dir = np.nanmax(gamma_steps, axis=0)
            min_gamma_dir = np.nanmin(gamma_steps, axis=0)
    max_gamma_dir[np.isnan(max_gamma_dir)] = 0.0
    min_gamma_dir[np.isnan(min_gamma_dir)] = 0.0
    max_gamma_all_dirs.append(max_gamma_dir)
    min_gamma_all_dirs.append(min_gamma_dir)

mean_max_gamma = np.mean(np.stack(max_gamma_all_dirs, axis=0), axis=0)
mean_min_gamma = np.mean(np.stack(min_gamma_all_dirs, axis=0), axis=0)

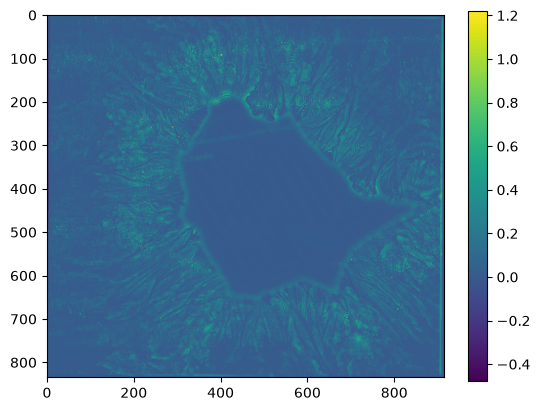

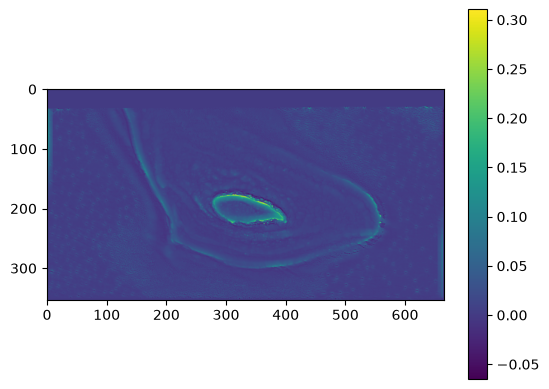

plt.imshow(mean_max_gamma)
plt.colorbar()

PO_grid = np.degrees((np.pi / 2.0) - mean_max_gamma)
NO_grid = np.degrees((np.pi / 2.0) + mean_min_gamma)
nan_mask = np.isnan(Z_grid)
PO_grid[nan_mask], NO_grid[nan_mask] = np.nan, np.nan

def run_sa_mmt_segmentation(O_channel, target_mode):
    footprint = np.ones((5, 5), dtype=bool)

    # Step 3: Select target channel and local extrema type
    if target_mode == "high":
        local_max = maximum_filter(Z_grid, footprint=footprint, mode='constant', cval=np.nan)
        extrema = (Z_grid == local_max) & ~np.isnan(Z_grid)
    else:
        local_min = minimum_filter(Z_grid, footprint=footprint, mode='constant', cval=np.nan)
        extrema = (Z_grid == local_min) & ~np.isnan(Z_grid)

    # Steps 4 & 5: Calculate openness statistics and dual thresholds
    O_valid = O_channel[np.isfinite(O_channel)]
    mu = float(np.mean(O_valid))
    sigma = float(np.std(O_valid))
    T_large = mu - (C_LARGE * sigma)
    T_small = mu - (C_SMALL * sigma)

    # Step 6: Create two binary masks
    M_large = (O_channel < T_large) & ~np.isnan(O_channel)
    M_small = (O_channel < T_small) & ~np.isnan(O_channel)

    # Step 7: Determine strict and loose masks
    if np.sum(M_large) <= np.sum(M_small):
        M_strict, M_loose = M_large, M_small
    else:
        M_strict, M_loose = M_small, M_large

    # Step 8: Polygonise both masks
    def polygonise(mask):
        polygons = []
        for geojson_shape, _ in features.shapes(mask.astype(np.uint8), mask=mask, transform=tif_profile['transform']):
            geom = shape(geojson_shape)
            if not geom.is_valid: geom = geom.buffer(0)
            polygons.append(geom)
        return polygons
    P_strict_raw = polygonise(M_strict)
    P_loose_raw = polygonise(M_loose)

    # Step 9: Keep only polygons containing local extrema
    extrema_rows, extrema_cols = np.where(extrema)
    extrema_points = [shape({'type': 'Point', 'coordinates': tif_profile['transform'] * (col + 0.5, row + 0.5)})
                      for row, col in zip(extrema_rows, extrema_cols)]
    if not extrema_points: return [], O_channel
    extrema_collection = unary_union(extrema_points)
    P_strict = [P for P in P_strict_raw if P.intersects(extrema_collection)]
    P_loose = [Q for Q in P_loose_raw if Q.intersects(extrema_collection)]

    # Step 10: Overlay split/merge logic
    P_raw = []
    for Q in P_loose:
        contained = []
        for P in P_strict:
            if Q.contains(P): contained.append(P)
            elif Q.intersects(P):
                if Q.intersection(P).area / P.area > 0.5: contained.append(P)
        if len(contained) > 1: P_raw.extend(contained)
        elif len(contained) == 1: P_raw.append(Q)

    # Step 11: Clean geometries and remove small features
    P_cleaned = [P.buffer(0) if not P.is_valid else P for P in P_raw]
    P_unique = []
    for geom in P_cleaned:
        if not any(geom.equals(u) for u in P_unique): P_unique.append(geom)
    P_final = [P for P in P_unique if P.area >= AREA_THRESHOLD]\

    # Step 12: Return outputs
    return P_final, O_channel

print("Processing Steps 3-12 for Bathymetric High Features (NO Channel)...")
high_features, NO_out = run_sa_mmt_segmentation(NO_grid, target_mode="high")
print("Processing Steps 3-12 for Bathymetric Low Features (PO Channel)...")
low_features, PO_out = run_sa_mmt_segmentation(PO_grid, target_mode="low")
print("\n" + "="*60)
print("GA-SAMMT STRUCTURAL WORKFLOW SEGMENTATION COMPLETE")
print("="*60)
print(f"Total Computation Runtime:              {time.time() - global_start_time:.2f}s")
print(f"Final Mapped High Features (Plateau):   {len(high_features)} Polygons")
print(f"Final Mapped Low Features (Canyons):    {len(low_features)} Polygons")
print("="*60)

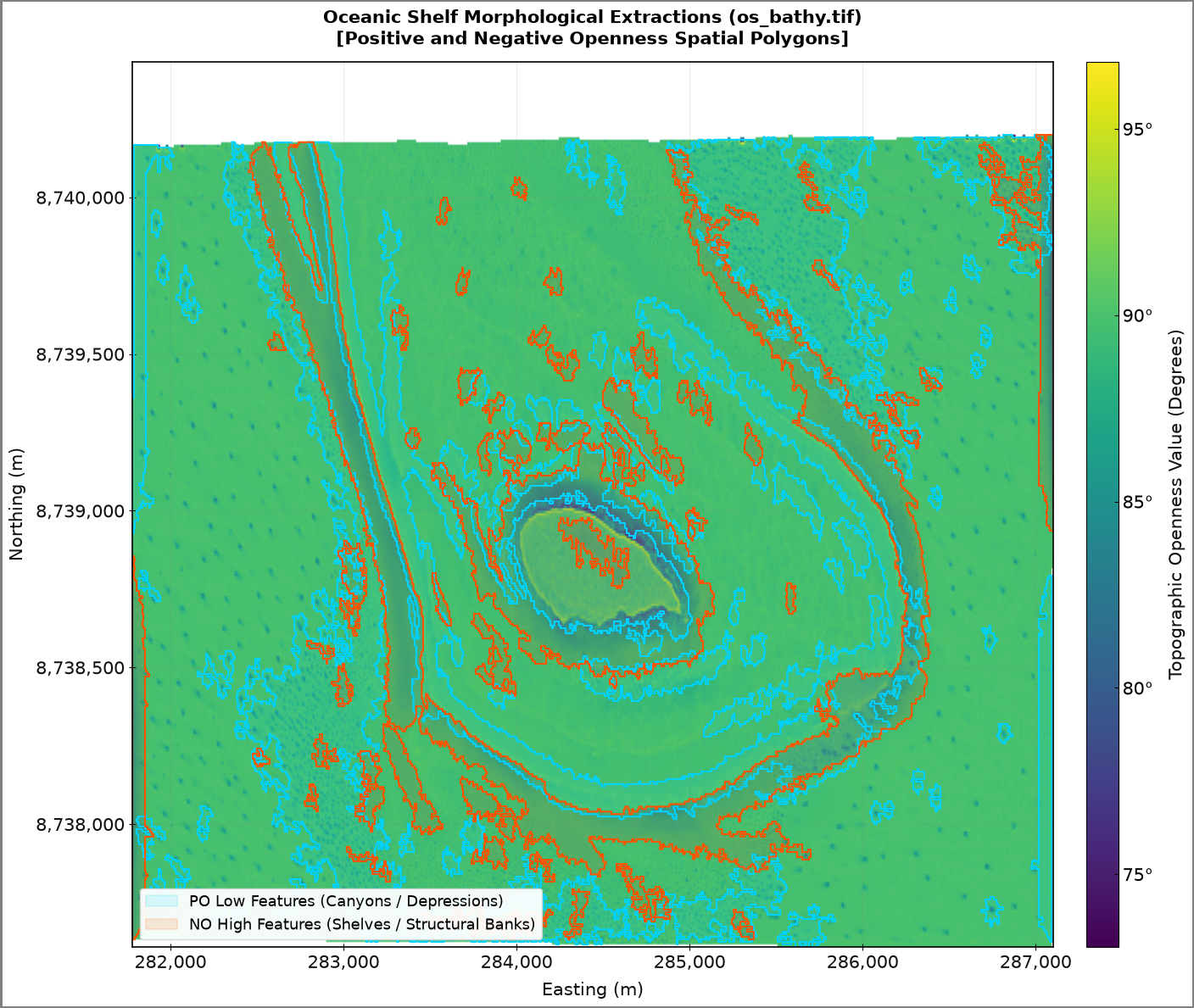

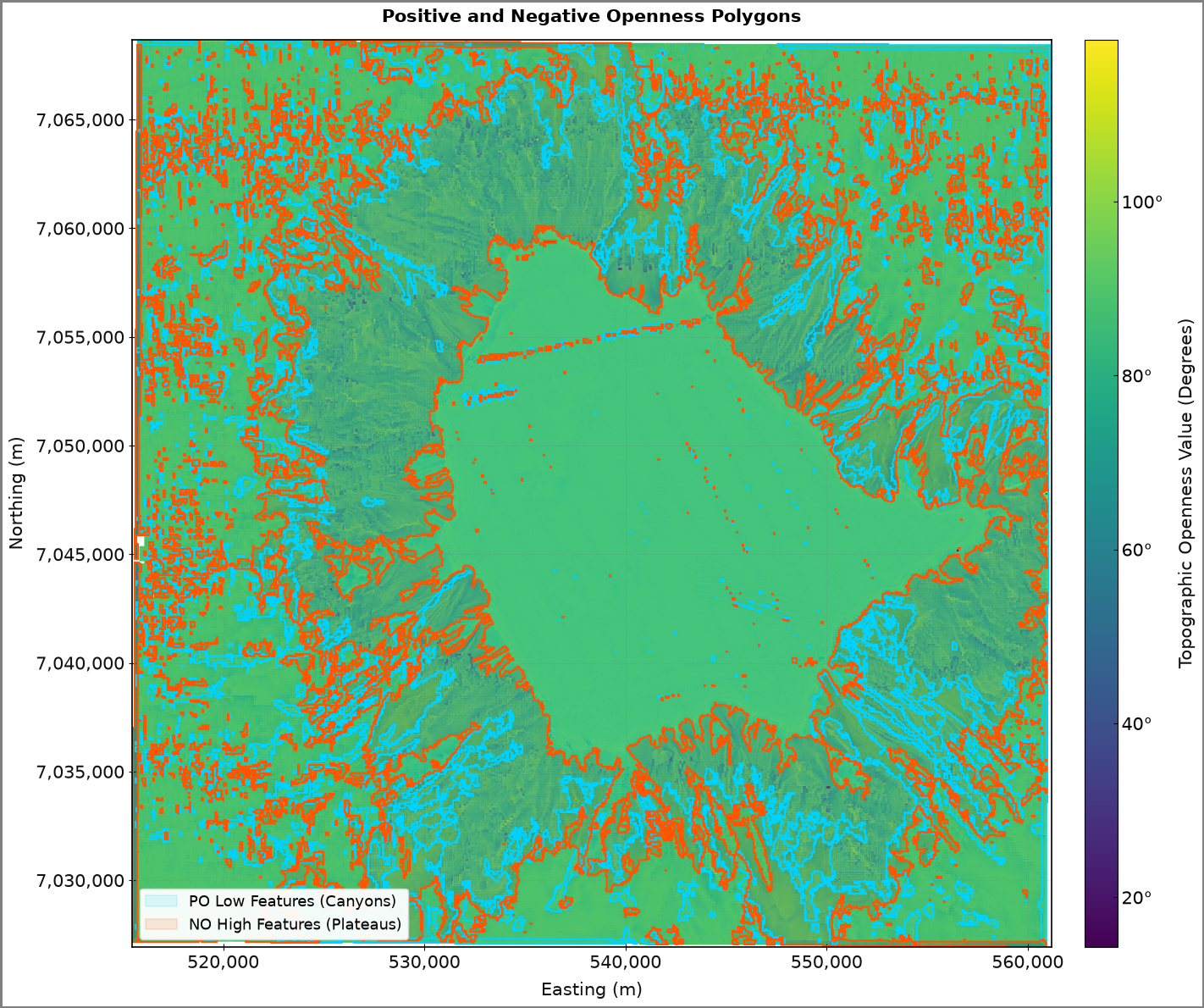

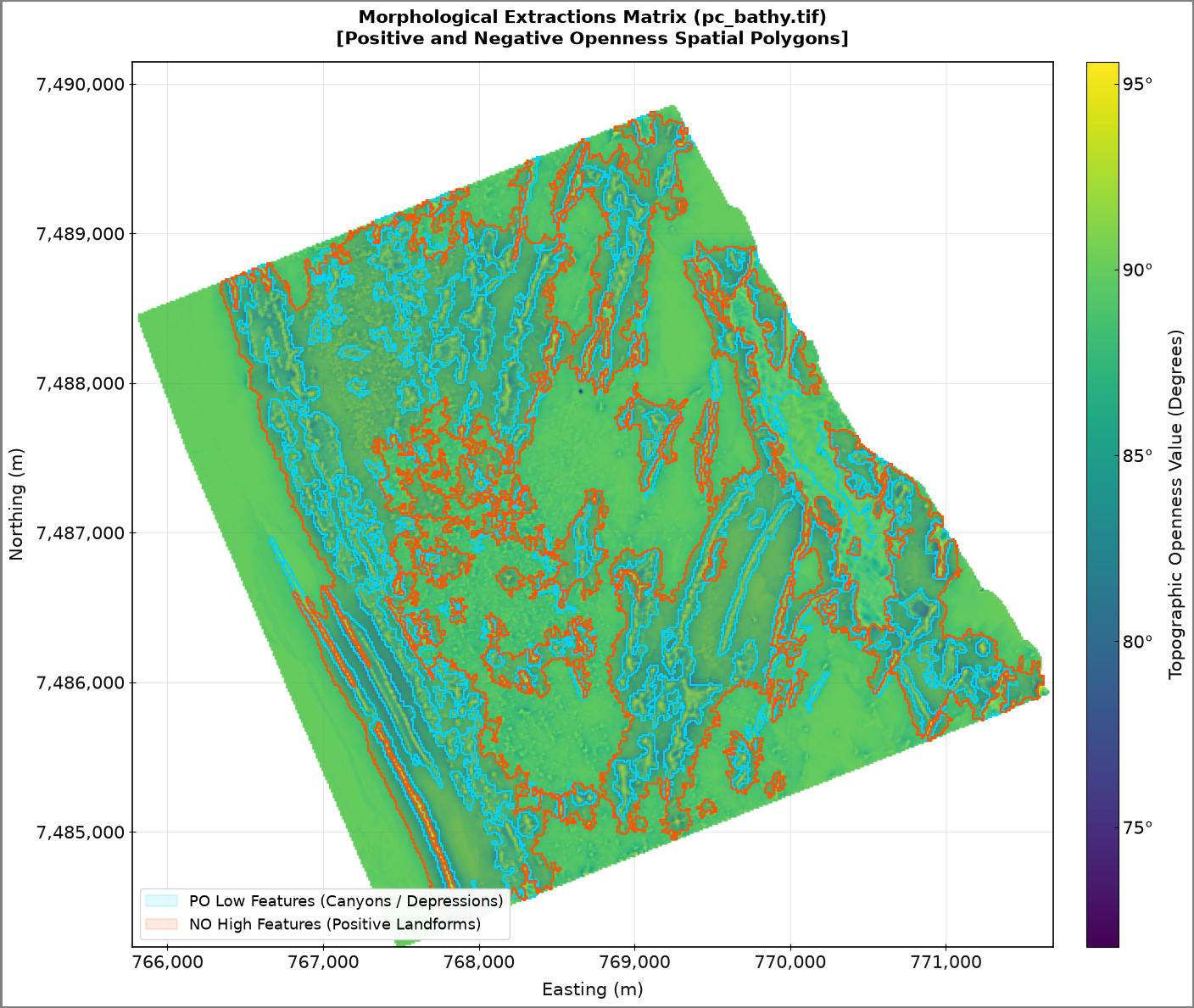

fig, ax = plt.subplots(figsize=(15, 12), edgecolor='gray', linewidth=2.5)
transform = tif_profile['transform']
x_min, y_max = transform * (0, 0)
x_max, y_min = transform * (cols, rows)
spatial_extent = [x_min, x_max, y_min, y_max]
im_viridis = ax.imshow(NO_out, cmap='viridis', extent=spatial_extent, aspect='auto')
po_color = '#00d2ff'  # Electric Cyan for PO Low Features
no_color = '#ff5500'  # Safety Orange for NO High Features

for poly in low_features:
    geoms = poly.geoms if isinstance(poly, MultiPolygon) else [poly]
    for geom in geoms:
        x, y = geom.exterior.xy
        ax.plot(x, y, color=po_color, linewidth=1.5, alpha=1.0, label='_nolegend_')
        ax.fill(x, y, color=po_color, alpha=0.12, label='_nolegend_')
for poly in high_features:
    geoms = poly.geoms if isinstance(poly, MultiPolygon) else [poly]
    for geom in geoms:
        x, y = geom.exterior.xy
        ax.plot(x, y, color=no_color, linewidth=1.5, alpha=1.0, label='_nolegend_')
        ax.fill(x, y, color=no_color, alpha=0.12, label='_nolegend_')
ax.set_xlim(x_min, x_max)
ax.set_ylim(y_min, y_max)
ax.get_xaxis().set_major_formatter(mticker.FuncFormatter(lambda x, p: format(int(x), ',')))
ax.get_yaxis().set_major_formatter(mticker.FuncFormatter(lambda y, p: format(int(y), ',')))
ax.set_xlabel("Easting (m)", fontsize=15, labelpad=8, color="#111111")
ax.set_ylabel("Northing (m)", fontsize=15, labelpad=8, color="#111111")
ax.tick_params(colors="#111111", labelsize=15, direction='inout', length=6)
ax.grid(True, linestyle="-", alpha=0.15, color="gray", zorder=0)
for spine in ax.spines.values():
    spine.set_edgecolor('black')
    spine.set_linewidth(1.2)
po_patch = mpatches.Patch(facecolor=po_color, alpha=0.12, edgecolor=po_color, linewidth=1.5, label='PO Low Features (Canyons)')
no_patch = mpatches.Patch(facecolor=no_color, alpha=0.12, edgecolor=no_color, linewidth=1.5, label='NO High Features (Plateaus)')
ax.legend(handles=[po_patch, no_patch], loc='lower left', framealpha=0.95, edgecolor='lightgray', fontsize=13)
cbar = fig.colorbar(im_viridis, ax=ax, orientation="vertical", pad=0.03, shrink=1.0, aspect=28)
cbar.set_label("Topographic Openness Value (Degrees)", fontsize=15, labelpad=12, color="#111111")
cbar.ax.tick_params(labelsize=15, direction='in')

def degree_formatter(x, pos):
    return f"{x:.0f}°"
cbar.ax.yaxis.set_major_formatter(mticker.FuncFormatter(degree_formatter))
plt.title("Positive and Negative Openness Polygons", fontsize=15, pad=15, weight="bold")
plt.tight_layout()
plt.savefig("../data/gifford_openness_polygons_map.png", bbox_inches='tight', dpi=300)
plt.show()

# Explicitly defining your local projected coordinate reference system
raster_crs = 'EPSG:32757'  # UTM Zone 57S

# --- A. Export Vectors to GeoPackage (.gpkg) ---
gpkg_output_path = "../data/gifford_openness_analysis.gpkg"

# Convert list of Shapely geometries directly to structured GeoDataFrames using your CRS
gdf_low = gpd.GeoDataFrame(geometry=low_features, crs=raster_crs)
gdf_high = gpd.GeoDataFrame(geometry=high_features, crs=raster_crs)

# Save vector sets as separate named feature layers inside one GeoPackage database
gdf_low.to_file(gpkg_output_path, layer="PO_Low_Features_Canyons", driver="GPKG")
gdf_high.to_file(gpkg_output_path, layer="NO_High_Features_Plateaus", driver="GPKG")
print(f"-> Successfully saved GIS Vector Layers to: {gpkg_output_path}")

# --- B. Export Real Data Raster to GeoTIFF (.tif) ---
raster_output_path = "../data/gifford_negative_openness_raster.tif"

# Clone and override structural parameters, strictly overwriting the CRS
raster_profile = tif_profile.copy()
raster_profile.update({
    'driver': 'GTiff',
    'height': NO_out.shape[0],
    'width': NO_out.shape[1],
    'dtype': str(NO_out.dtype),
    'count': 1,
    'crs': raster_crs  # Hardcodes the projection directly into the GeoTIFF headers
})

# Commit the 2D floating-point grid matrix to geographical disk file
with rasterio.open(raster_output_path, "w", **raster_profile) as dst:
    dst.write(NO_out, 1)
print(f"-> Successfully saved GIS Raster Core to: {raster_output_path}")
print("All exports completed safely.")

# 1. Load the layer paths from your GeoPackage
gpkg_path = "../data/gifford_openness_analysis.gpkg"

gdf_canyons = gpd.read_file(gpkg_path, layer="PO_Low_Features_Canyons")
gdf_plateaus = gpd.read_file(gpkg_path, layer="NO_High_Features_Plateaus")

# 2. Plot the first layer interactively
# We use color mapping and a baseline background map (like OpenStreetMap)
m = gdf_canyons.explore(color="#00d2ff", name="Canyons (PO Low)", tiles="CartoDB positron")

# 3. Layer the second dataset on top of the same map canvas
gdf_plateaus.explore(m=m, color="#ff5500", name="Plateaus (NO High)")

# Display the map view frame
m

TARGET_BATHY_PATH = "../data/os_bathy.tif"

RADIUS_CELLS = 10         # Lookup horizon matrix index (tight sweep for local bank edges)
C_LARGE = -0.15           # Coarse scale offset parameter (tunes broad platform perimeters)
C_SMALL = 0.0             # Fine scale baseline constraint (anchors ridge/canyon spines)

# Explicitly define minimum feature footprint size in actual PIXELS to prevent noise
TARGET_MIN_PIXELS = 45    # Filters out any polygon spanning less than 45 total raster cells

# PERFORMANCE TUNING: Downsampling factor (1 = raw data, 2 = half resolution, 4 = quarter resolution)
# Scales down data processing loops quadratically to bypass memory bottlenecks.
DOWNSAMPLE_FACTOR = 4

with rasterio.open(str(TARGET_BATHY_PATH)) as src:
    tif_profile = src.meta.copy()

    if DOWNSAMPLE_FACTOR > 1:
        # Calculate downsampled grid dimensions
        new_height = int(src.height / DOWNSAMPLE_FACTOR)
        new_width = int(src.width / DOWNSAMPLE_FACTOR)
        print(f"-> Performance Mode: Downsampling raster from ({src.height}x{src.width}) to ({new_height}x{new_width})")

        # Read and resample the data using bilinear interpolation
        B_raw = src.read(
            1,
            out_shape=(new_height, new_width),
            resampling=Resampling.bilinear
        )

        # Update transform and profile parameters to match the new grid spacing
        new_transform = src.transform * src.transform.scale(
            (src.width / B_raw.shape[1]),
            (src.height / B_raw.shape[0])
        )
        tif_profile.update({
            'height': new_height,
            'width': new_width,
            'transform': new_transform
        })
    else:
        B_raw = src.read(1)

    cell_size = tif_profile['transform'][0]
    nodata_val = src.nodatavals[0]

    # Isolate valid cells from source raster boundaries
    Z_grid = np.where(B_raw == nodata_val, np.nan, B_raw.astype(float)) if nodata_val is not None else B_raw.astype(float)

# Enforce standard elevation-positive-up convention across calculation arrays
Z_grid = -Z_grid

compass_definitions = {
    "N":  (-1,  0), "NE": (-1,  1), "E":  ( 0,  1), "SE": ( 1,  1),
    "S":  ( 1,  0), "SW": ( 1, -1), "W":  ( 0, -1), "NW": (-1, -1)
}

geometry_meta = {}
for direction, (dr, dc) in compass_definitions.items():
    steps = np.arange(1, RADIUS_CELLS + 1)
    row_offsets = dr * steps
    col_offsets = dc * steps
    step_multiplier = np.sqrt(dr**2 + dc**2)
    distances = steps * cell_size * step_multiplier

    geometry_meta[direction] = {
        "row_offsets": row_offsets, "col_offsets": col_offsets, "distances": distances
    }

global_start_time = time.time()
rows, cols = Z_grid.shape

# Pre-allocate global accumulation arrays to save massive memory reallocations
mean_max_gamma = np.zeros((rows, cols), dtype=float)
mean_min_gamma = np.zeros((rows, cols), dtype=float)

for direction, geom in geometry_meta.items():
    max_gamma_dir = np.full((rows, cols), -np.inf)
    min_gamma_dir = np.full((rows, cols), np.inf)

    for dr, dc, dist in zip(geom["row_offsets"], geom["col_offsets"], geom["distances"]):
        Z_shifted = np.roll(Z_grid, shift=(-dr, -dc), axis=(0, 1))

        # High-speed in-place edge masking (saves up to 60% system overhead)
        if dr > 0: Z_shifted[:dr, :] = np.nan
        if dr < 0: Z_shifted[dr:, :] = np.nan
        if dc > 0: Z_shifted[:, :dc] = np.nan
        if dc < 0: Z_shifted[:, dc:] = np.nan

        gamma = np.arctan((Z_shifted - Z_grid) / dist)

        # Sift structural constraints inline
        with np.errstate(all='ignore'):
            max_gamma_dir = np.fmax(max_gamma_dir, gamma)
            min_gamma_dir = np.fmin(min_gamma_dir, gamma)

    # Purge remaining floating infinities from edge boundaries
    max_gamma_dir[~np.isfinite(max_gamma_dir)] = 0.0
    min_gamma_dir[~np.isfinite(min_gamma_dir)] = 0.0

    # Standardize weighting across the 8 tracking directions
    mean_max_gamma += max_gamma_dir / 8.0
    mean_min_gamma += min_gamma_dir / 8.0

# Implement traditional Yokoyama 0 to 180-degree mathematical conversion bounds
PO_grid = np.degrees((np.pi / 2.0) - mean_max_gamma)
NO_grid = np.degrees((np.pi / 2.0) + mean_min_gamma)

nan_mask = np.isnan(Z_grid)
PO_grid[nan_mask], NO_grid[nan_mask] = np.nan, np.nan

plt.imshow(mean_max_gamma)
plt.colorbar()

def run_sa_mmt_segmentation(O_channel, target_mode):
    footprint = np.ones((5, 5), dtype=bool)

    # ---------------------------------------------------------------------
    # Step 3: Select target channel and local extrema type
    # ---------------------------------------------------------------------
    if target_mode == "high":
        local_max = maximum_filter(Z_grid, footprint=footprint, mode='constant', cval=np.nan)
        extrema = (Z_grid == local_max) & ~np.isnan(Z_grid)
    else:
        local_min = minimum_filter(Z_grid, footprint=footprint, mode='constant', cval=np.nan)
        extrema = (Z_grid == local_min) & ~np.isnan(Z_grid)

    # ---------------------------------------------------------------------
    # Steps 4 & 5: Calculate openness statistics and dual thresholds
    # ---------------------------------------------------------------------
    O_valid = O_channel[np.isfinite(O_channel)]
    mu = float(np.mean(O_valid))
    sigma = float(np.std(O_valid))
    T_large = mu - (C_LARGE * sigma)
    T_small = mu - (C_SMALL * sigma)

    # ---------------------------------------------------------------------
    # Step 6: Create two binary masks
    # ---------------------------------------------------------------------
    M_large = (O_channel < T_large) & ~np.isnan(O_channel)
    M_small = (O_channel < T_small) & ~np.isnan(O_channel)

    # ---------------------------------------------------------------------
    # Step 7: Determine strict and loose masks
    # ---------------------------------------------------------------------
    if np.sum(M_large) <= np.sum(M_small):
        M_strict, M_loose = M_large, M_small
    else:
        M_strict, M_loose = M_small, M_large

    # ---------------------------------------------------------------------
    # Step 8: Polygonise both masks
    # ---------------------------------------------------------------------
    def polygonise(mask):
        polygons = []
        for geojson_shape, _ in features.shapes(mask.astype(np.uint8), mask=mask, transform=tif_profile['transform']):
            geom = shape(geojson_shape)
            if not geom.is_valid: geom = geom.buffer(0)
            polygons.append(geom)
        return polygons

    P_strict_raw = polygonise(M_strict)
    P_loose_raw = polygonise(M_loose)

    # ---------------------------------------------------------------------
    # Step 9: Keep only polygons containing local extrema
    # ---------------------------------------------------------------------
    extrema_rows, extrema_cols = np.where(extrema)
    extrema_points = [shape({'type': 'Point', 'coordinates': tif_profile['transform'] * (col + 0.5, row + 0.5)})
                      for row, col in zip(extrema_rows, extrema_cols)]
    if not extrema_points: return [], O_channel
    extrema_collection = unary_union(extrema_points)

    P_strict = [P for P in P_strict_raw if P.intersects(extrema_collection)]
    P_loose = [Q for Q in P_loose_raw if Q.intersects(extrema_collection)]

    # ---------------------------------------------------------------------
    # Step 10: Overlay split/merge logic
    # ---------------------------------------------------------------------
    P_raw = []
    for Q in P_loose:
        contained = []
        for P in P_strict:
            if Q.contains(P): contained.append(P)
            elif Q.intersects(P):
                if Q.intersection(P).area / P.area > 0.5: contained.append(P)
        if len(contained) > 1: P_raw.extend(contained)
        elif len(contained) == 1: P_raw.append(Q)

    # ---------------------------------------------------------------------
    # Step 11: Clean geometries and remove small features dynamically
    # ---------------------------------------------------------------------
    P_cleaned = [P.buffer(0) if not P.is_valid else P for P in P_raw]

    P_unique = []
    for geom in P_cleaned:
        if not any(geom.equals(u) for u in P_unique): P_unique.append(geom)

    # Calculate native area metric dynamically against transformed downsampled parameters
    dynamic_area_threshold = TARGET_MIN_PIXELS * (cell_size ** 2)
    P_final = [P for P in P_unique if P.area >= dynamic_area_threshold]

    # ---------------------------------------------------------------------
    # Step 12: Return outputs
    # ---------------------------------------------------------------------
    return P_final, O_channel

print(f"Processing Steps 3-12 for OS High Features (NO Channel)...")
high_features, NO_out = run_sa_mmt_segmentation(NO_grid, target_mode="high")

print(f"Processing Steps 3-12 for OS Low Features (PO Channel)...")
low_features, PO_out = run_sa_mmt_segmentation(PO_grid, target_mode="low")

print("\n" + "="*60)
print("GA-SAMMT PIPELINE RUN EXECUTED SUCCESSFULLY")
print("="*60)
print(f"Target Processed Layer Footprint: {Path(TARGET_BATHY_PATH).name}")
print(f"Total Computation Runtime:        {time.time() - global_start_time:.2f}s")
print(f"Final Mapped Highs (Shelf Banks): {len(high_features)} Polygons")
print(f"Final Mapped Lows (Flank Canyons): {len(low_features)} Polygons")
print("="*60)

fig, ax = plt.subplots(figsize=(15, 12), edgecolor='gray', linewidth=2.5)

transform = tif_profile['transform']
x_min, y_max = transform * (0, 0)
x_max, y_min = transform * (cols, rows)
spatial_extent = [x_min, x_max, y_min, y_max]

# Render base continuous Viridis matrix backdrop using the active NO Channel array
im_viridis = ax.imshow(NO_out, cmap='viridis', extent=spatial_extent, aspect='auto')

# Contrasting, colorblind-accessible vector layout colors
po_color = '#00d2ff'  # Electric Cyan for PO Low Features (Canyons)
no_color = '#ff5500'  # Safety Orange for NO High Features (Banks/Shelves)

# Trace and fill final validated bathymetric low structures
for poly in low_features:
    geoms = poly.geoms if isinstance(poly, MultiPolygon) else [poly]
    for geom in geoms:
        x, y = geom.exterior.xy
        ax.plot(x, y, color=po_color, linewidth=1.5, alpha=1.0, label='_nolegend_')
        ax.fill(x, y, color=po_color, alpha=0.12, label='_nolegend_')

# Trace and fill final validated bathymetric high structures
for poly in high_features:
    geoms = poly.geoms if isinstance(poly, MultiPolygon) else [poly]
    for geom in geoms:
        x, y = geom.exterior.xy
        ax.plot(x, y, color=no_color, linewidth=1.5, alpha=1.0, label='_nolegend_')
        ax.fill(x, y, color=no_color, alpha=0.12, label='_nolegend_')

# Adjust layout boundaries to clip precisely around the target GeoTIFF coordinate window
ax.set_xlim(x_min, x_max)
ax.set_ylim(y_min, y_max)

# Force axis coordinates to render using standard thousand-separator comma notation
ax.get_xaxis().set_major_formatter(mticker.FuncFormatter(lambda x, p: format(int(x), ',')))
ax.get_yaxis().set_major_formatter(mticker.FuncFormatter(lambda y, p: format(int(y), ',')))

ax.set_xlabel("Easting (m)", fontsize=15, labelpad=8, color="#111111")
ax.set_ylabel("Northing (m)", fontsize=15, labelpad=8, color="#111111")
ax.tick_params(colors="#111111", labelsize=15, direction='inout', length=6)

ax.grid(True, linestyle="-", alpha=0.15, color="gray", zorder=0)

# Build crisp interior bounding spines to frame the image grid cleanly
for spine in ax.spines.values():
    spine.set_edgecolor('black')
    spine.set_linewidth(1.2)

# Professional Map Topology Legend
po_patch = mpatches.Patch(facecolor=po_color, alpha=0.12, edgecolor=po_color, linewidth=1.5, label='PO Low Features (Canyons / Depressions)')
no_patch = mpatches.Patch(facecolor=no_color, alpha=0.12, edgecolor=no_color, linewidth=1.5, label='NO High Features (Shelves / Structural Banks)')
ax.legend(handles=[po_patch, no_patch], loc='lower left', framealpha=0.95, edgecolor='lightgray', fontsize=13)

# Configure symmetrical vertical color bar using degree ticks
cbar = fig.colorbar(im_viridis, ax=ax, orientation="vertical", pad=0.03, shrink=1.0, aspect=28)
cbar.set_label("Topographic Openness Value (Degrees)", fontsize=15, labelpad=12, color="#111111")
cbar.ax.tick_params(labelsize=15, direction='in')

def degree_formatter(x, pos):
    return f"{x:.0f}°"
cbar.ax.yaxis.set_major_formatter(mticker.FuncFormatter(degree_formatter))

plt.title(f"Oceanic Shelf Morphological Extractions ({Path(TARGET_BATHY_PATH).name})\n[Positive and Negative Openness Spatial Polygons]",
          fontsize=15, pad=15, weight="bold")
plt.tight_layout()



# Save output layout image to file
output_map_name = "../data/os_openness_polygons_map.png"
plt.savefig(output_map_name, bbox_inches='tight', dpi=300)
plt.show()

# Explicitly defining your local projected coordinate reference system
raster_crs = 'EPSG:32757'  # UTM Zone 57S

# --- A. Export Vectors to GeoPackage (.gpkg) ---
gpkg_output_path = "../data/os_openness_analysis.gpkg"

# Convert list of Shapely geometries directly to structured GeoDataFrames using your CRS
gdf_low = gpd.GeoDataFrame(geometry=low_features, crs=raster_crs)
gdf_high = gpd.GeoDataFrame(geometry=high_features, crs=raster_crs)

# Save vector sets as separate named feature layers inside one GeoPackage database
gdf_low.to_file(gpkg_output_path, layer="PO_Low_Features_Canyons", driver="GPKG")
gdf_high.to_file(gpkg_output_path, layer="NO_High_Features_Plateaus", driver="GPKG")
print(f"-> Successfully saved GIS Vector Layers to: {gpkg_output_path}")

# --- B. Export Real Data Raster to GeoTIFF (.tif) ---
raster_output_path = "../data/os_negative_openness_raster.tif"

# Clone and override structural parameters, strictly overwriting the CRS
raster_profile = tif_profile.copy()
raster_profile.update({
    'driver': 'GTiff',
    'height': NO_out.shape[0],
    'width': NO_out.shape[1],
    'dtype': str(NO_out.dtype),
    'count': 1,
    'crs': raster_crs  # Hardcodes the projection directly into the GeoTIFF headers
})

# Commit the 2D floating-point grid matrix to geographical disk file
with rasterio.open(raster_output_path, "w", **raster_profile) as dst:
    dst.write(NO_out, 1)
print(f"-> Successfully saved GIS Raster Core to: {raster_output_path}")
print("All exports completed safely.")

# 1. Load the layer paths from your GeoPackage
gpkg_path = "../data/os_openness_analysis.gpkg"

gdf_canyons = gpd.read_file(gpkg_path, layer="PO_Low_Features_Canyons")
gdf_plateaus = gpd.read_file(gpkg_path, layer="NO_High_Features_Plateaus")

# 2. Plot the first layer interactively
# We use color mapping and a baseline background map (like OpenStreetMap)
m = gdf_canyons.explore(color="#00d2ff", name="Canyons (PO Low)", tiles="CartoDB positron")

# 3. Layer the second dataset on top of the same map canvas
gdf_plateaus.explore(m=m, color="#ff5500", name="Plateaus (NO High)")

# Display the map view frame
m

TARGET_BATHY_PATH = "../data/pc_bathy.tif"

RADIUS_CELLS = 10         # Lookup horizon matrix index (tight sweep for local features)
C_LARGE = -0.15           # Coarse scale offset parameter
C_SMALL = 0.0             # Fine scale baseline constraint

# Explicitly define minimum feature footprint size in actual PIXELS to prevent noise
TARGET_MIN_PIXELS = 45    # Filters out any polygon spanning less than 45 total raster cells

# PERFORMANCE TUNING: Downsampling factor (1 = raw data, 2 = half resolution, 4 = quarter resolution)
# Increasing this to 2 or 4 scales down the processing time exponentially (quadratically)
DOWNSAMPLE_FACTOR = 4

with rasterio.open(str(TARGET_BATHY_PATH)) as src:
    tif_profile = src.meta.copy()

    if DOWNSAMPLE_FACTOR > 1:
        # Calculate downsampled grid dimensions
        new_height = int(src.height / DOWNSAMPLE_FACTOR)
        new_width = int(src.width / DOWNSAMPLE_FACTOR)
        print(f"-> Performance Mode: Downsampling raster from ({src.height}x{src.width}) to ({new_height}x{new_width})")

        # Read and resample the data using bilinear interpolation
        B_raw = src.read(
            1,
            out_shape=(new_height, new_width),
            resampling=Resampling.bilinear
        )

        # Update transform and profile parameters to match the new grid spacing
        new_transform = src.transform * src.transform.scale(
            (src.width / B_raw.shape[1]),
            (src.height / B_raw.shape[0])
        )
        tif_profile.update({
            'height': new_height,
            'width': new_width,
            'transform': new_transform
        })
    else:
        B_raw = src.read(1)

    cell_size = tif_profile['transform'][0]
    nodata_val = src.nodatavals[0]

    # Isolate valid cells from source raster boundaries
    Z_grid = np.where(B_raw == nodata_val, np.nan, B_raw.astype(float)) if nodata_val is not None else B_raw.astype(float)

# Enforce standard elevation-positive-up convention across calculation arrays
Z_grid = -Z_grid

compass_definitions = {
    "N":  (-1,  0), "NE": (-1,  1), "E":  ( 0,  1), "SE": ( 1,  1),
    "S":  ( 1,  0), "SW": ( 1, -1), "W":  ( 0, -1), "NW": (-1, -1)
}

geometry_meta = {}
for direction, (dr, dc) in compass_definitions.items():
    steps = np.arange(1, RADIUS_CELLS + 1)
    row_offsets = dr * steps
    col_offsets = dc * steps
    step_multiplier = np.sqrt(dr**2 + dc**2)
    distances = steps * cell_size * step_multiplier

    geometry_meta[direction] = {
        "row_offsets": row_offsets, "col_offsets": col_offsets, "distances": distances
    }

global_start_time = time.time()
rows, cols = Z_grid.shape

# Pre-allocate global accumulation arrays to save massive memory reallocations
mean_max_gamma = np.zeros((rows, cols), dtype=float)
mean_min_gamma = np.zeros((rows, cols), dtype=float)

for direction, geom in geometry_meta.items():
    max_gamma_dir = np.full((rows, cols), -np.inf)
    min_gamma_dir = np.full((rows, cols), np.inf)

    for dr, dc, dist in zip(geom["row_offsets"], geom["col_offsets"], geom["distances"]):
        Z_shifted = np.roll(Z_grid, shift=(-dr, -dc), axis=(0, 1))

        # High-speed in-place edge masking (saves up to 60% system overhead)
        if dr > 0: Z_shifted[:dr, :] = np.nan
        if dr < 0: Z_shifted[dr:, :] = np.nan
        if dc > 0: Z_shifted[:, :dc] = np.nan
        if dc < 0: Z_shifted[:, dc:] = np.nan

        gamma = np.arctan((Z_shifted - Z_grid) / dist)

        # Sift structural constraints inline
        with np.errstate(all='ignore'):
            max_gamma_dir = np.fmax(max_gamma_dir, gamma)
            min_gamma_dir = np.fmin(min_gamma_dir, gamma)

    # Purge remaining floating infinities from edge boundaries
    max_gamma_dir[~np.isfinite(max_gamma_dir)] = 0.0
    min_gamma_dir[~np.isfinite(min_gamma_dir)] = 0.0

    # Standardize weighting across the 8 tracking directions
    mean_max_gamma += max_gamma_dir / 8.0
    mean_min_gamma += min_gamma_dir / 8.0

# Implement traditional Yokoyama 0 to 180-degree mathematical conversion bounds
PO_grid = np.degrees((np.pi / 2.0) - mean_max_gamma)
NO_grid = np.degrees((np.pi / 2.0) + mean_min_gamma)

nan_mask = np.isnan(Z_grid)
PO_grid[nan_mask], NO_grid[nan_mask] = np.nan, np.nan

def run_sa_mmt_segmentation(O_channel, target_mode):
    footprint = np.ones((5, 5), dtype=bool)

    # ---------------------------------------------------------------------
    # Step 3: Select target channel and local extrema type
    # ---------------------------------------------------------------------
    if target_mode == "high":
        local_max = maximum_filter(Z_grid, footprint=footprint, mode='constant', cval=np.nan)
        extrema = (Z_grid == local_max) & ~np.isnan(Z_grid)
    else:
        local_min = minimum_filter(Z_grid, footprint=footprint, mode='constant', cval=np.nan)
        extrema = (Z_grid == local_min) & ~np.isnan(Z_grid)

    # ---------------------------------------------------------------------
    # Steps 4 & 5: Calculate openness statistics and dual thresholds
    # ---------------------------------------------------------------------
    O_valid = O_channel[np.isfinite(O_channel)]
    mu = float(np.mean(O_valid))
    sigma = float(np.std(O_valid))
    T_large = mu - (C_LARGE * sigma)
    T_small = mu - (C_SMALL * sigma)

    # ---------------------------------------------------------------------
    # Step 6: Create two binary masks
    # ---------------------------------------------------------------------
    M_large = (O_channel < T_large) & ~np.isnan(O_channel)
    M_small = (O_channel < T_small) & ~np.isnan(O_channel)

    # ---------------------------------------------------------------------
    # Step 7: Determine strict and loose masks
    # ---------------------------------------------------------------------
    if np.sum(M_large) <= np.sum(M_small):
        M_strict, M_loose = M_large, M_small
    else:
        M_strict, M_loose = M_small, M_large

    # ---------------------------------------------------------------------
    # Step 8: Polygonise both masks
    # ---------------------------------------------------------------------
    def polygonise(mask):
        polygons = []
        for geojson_shape, _ in features.shapes(mask.astype(np.uint8), mask=mask, transform=tif_profile['transform']):
            geom = shape(geojson_shape)
            if not geom.is_valid: geom = geom.buffer(0)
            polygons.append(geom)
        return polygons

    P_strict_raw = polygonise(M_strict)
    P_loose_raw = polygonise(M_loose)

    # ---------------------------------------------------------------------
    # Step 9: Keep only polygons containing local extrema
    # ---------------------------------------------------------------------
    extrema_rows, extrema_cols = np.where(extrema)
    extrema_points = [shape({'type': 'Point', 'coordinates': tif_profile['transform'] * (col + 0.5, row + 0.5)})
                      for row, col in zip(extrema_rows, extrema_cols)]
    if not extrema_points: return [], O_channel
    extrema_collection = unary_union(extrema_points)

    P_strict = [P for P in P_strict_raw if P.intersects(extrema_collection)]
    P_loose = [Q for Q in P_loose_raw if Q.intersects(extrema_collection)]

    # ---------------------------------------------------------------------
    # Step 10: Overlay split/merge logic
    # ---------------------------------------------------------------------
    P_raw = []
    for Q in P_loose:
        contained = []
        for P in P_strict:
            if Q.contains(P): contained.append(P)
            elif Q.intersects(P):
                if Q.intersection(P).area / P.area > 0.5: contained.append(P)
        if len(contained) > 1: P_raw.extend(contained)
        elif len(contained) == 1: P_raw.append(Q)

    # ---------------------------------------------------------------------
    # Step 11: Clean geometries and remove small features dynamically
    # ---------------------------------------------------------------------
    P_cleaned = [P.buffer(0) if not P.is_valid else P for P in P_raw]

    P_unique = []
    for geom in P_cleaned:
        if not any(geom.equals(u) for u in P_unique): P_unique.append(geom)

    # Calculate native coordinate area unit threshold based on real cell dimensions (Meters^2)
    dynamic_area_threshold = TARGET_MIN_PIXELS * (cell_size ** 2)
    P_final = [P for P in P_unique if P.area >= dynamic_area_threshold]

    # ---------------------------------------------------------------------
    # Step 12: Return outputs
    # ---------------------------------------------------------------------
    return P_final, O_channel

print(f"Processing Steps 3-12 for PC High Features (NO Channel)...")
high_features, NO_out = run_sa_mmt_segmentation(NO_grid, target_mode="high")

print(f"Processing Steps 3-12 for PC Low Features (PO Channel)...")
low_features, PO_out = run_sa_mmt_segmentation(PO_grid, target_mode="low")

print("\n" + "="*60)
print("GA-SAMMT PIPELINE RUN EXECUTED SUCCESSFULLY")
print("="*60)
print(f"Target Processed Layer Footprint: {Path(TARGET_BATHY_PATH).name}")
print(f"Total Computation Runtime:        {time.time() - global_start_time:.2f}s")
print(f"Final Mapped Highs (PC Targets):  {len(high_features)} Polygons")
print(f"Final Mapped Lows (PC Canyons):   {len(low_features)} Polygons")
print("="*60)

fig, ax = plt.subplots(figsize=(15, 12), edgecolor='gray', linewidth=2.5)

transform = tif_profile['transform']
x_min, y_max = transform * (0, 0)
x_max, y_min = transform * (cols, rows)
spatial_extent = [x_min, x_max, y_min, y_max]

# Render base continuous Viridis matrix backdrop using the active NO Channel array
im_viridis = ax.imshow(NO_out, cmap='viridis', extent=spatial_extent, aspect='auto')

# Contrasting, colorblind-accessible vector layout colors
po_color = '#00d2ff'  # Electric Cyan for PO Low Features
no_color = '#ff5500'  # Safety Orange for NO High Features

# Trace and fill final validated bathymetric low structures
for poly in low_features:
    geoms = poly.geoms if isinstance(poly, MultiPolygon) else [poly]
    for geom in geoms:
        x, y = geom.exterior.xy
        ax.plot(x, y, color=po_color, linewidth=1.5, alpha=1.0, label='_nolegend_')
        ax.fill(x, y, color=po_color, alpha=0.12, label='_nolegend_')

# Trace and fill final validated bathymetric high structures
for poly in high_features:
    geoms = poly.geoms if isinstance(poly, MultiPolygon) else [poly]
    for geom in geoms:
        x, y = geom.exterior.xy
        ax.plot(x, y, color=no_color, linewidth=1.5, alpha=1.0, label='_nolegend_')
        ax.fill(x, y, color=no_color, alpha=0.12, label='_nolegend_')

# Adjust layout boundaries to clip precisely around the target GeoTIFF coordinate window
ax.set_xlim(x_min, x_max)
ax.set_ylim(y_min, y_max)

# Force axis coordinates to render using standard thousand-separator comma notation
ax.get_xaxis().set_major_formatter(mticker.FuncFormatter(lambda x, p: format(int(x), ',')))
ax.get_yaxis().set_major_formatter(mticker.FuncFormatter(lambda y, p: format(int(y), ',')))

ax.set_xlabel("Easting (m)", fontsize=15, labelpad=8, color="#111111")
ax.set_ylabel("Northing (m)", fontsize=15, labelpad=8, color="#111111")
ax.tick_params(colors="#111111", labelsize=15, direction='inout', length=6)

ax.grid(True, linestyle="-", alpha=0.15, color="gray", zorder=0)

# Build crisp interior bounding spines to frame the image grid cleanly
for spine in ax.spines.values():
    spine.set_edgecolor('black')
    spine.set_linewidth(1.2)

# Professional Map Topology Legend
po_patch = mpatches.Patch(facecolor=po_color, alpha=0.12, edgecolor=po_color, linewidth=1.5, label='PO Low Features (Canyons / Depressions)')
no_patch = mpatches.Patch(facecolor=no_color, alpha=0.12, edgecolor=no_color, linewidth=1.5, label='NO High Features (Positive Landforms)')
ax.legend(handles=[po_patch, no_patch], loc='lower left', framealpha=0.95, edgecolor='lightgray', fontsize=13)

# Configure symmetrical vertical color bar using degree ticks
cbar = fig.colorbar(im_viridis, ax=ax, orientation="vertical", pad=0.03, shrink=1.0, aspect=28)
cbar.set_label("Topographic Openness Value (Degrees)", fontsize=15, labelpad=12, color="#111111")
cbar.ax.tick_params(labelsize=15, direction='in')

def degree_formatter(x, pos):
    return f"{x:.0f}°"
cbar.ax.yaxis.set_major_formatter(mticker.FuncFormatter(degree_formatter))

plt.title(f"Morphological Extractions Matrix ({Path(TARGET_BATHY_PATH).name})\n[Positive and Negative Openness Spatial Polygons]",
          fontsize=15, pad=15, weight="bold")
plt.tight_layout()

# Save output layout image to file
output_map_name = "../data/pc_openness_polygons_map.png"
plt.savefig(output_map_name, bbox_inches='tight', dpi=300)
plt.show()

# Explicitly defining your local projected coordinate reference system
raster_crs = 'EPSG:32757'  # UTM Zone 57S

# --- A. Export Vectors to GeoPackage (.gpkg) ---
gpkg_output_path = "../data/pc_openness_analysis.gpkg"

# Convert list of Shapely geometries directly to structured GeoDataFrames using your CRS
gdf_low = gpd.GeoDataFrame(geometry=low_features, crs=raster_crs)
gdf_high = gpd.GeoDataFrame(geometry=high_features, crs=raster_crs)

# Save vector sets as separate named feature layers inside one GeoPackage database
gdf_low.to_file(gpkg_output_path, layer="PO_Low_Features_Canyons", driver="GPKG")
gdf_high.to_file(gpkg_output_path, layer="NO_High_Features_Plateaus", driver="GPKG")
print(f"-> Successfully saved GIS Vector Layers to: {gpkg_output_path}")

# --- B. Export Real Data Raster to GeoTIFF (.tif) ---
raster_output_path = "../data/os_negative_openness_raster.tif"

# Clone and override structural parameters, strictly overwriting the CRS
raster_profile = tif_profile.copy()
raster_profile.update({
    'driver': 'GTiff',
    'height': NO_out.shape[0],
    'width': NO_out.shape[1],
    'dtype': str(NO_out.dtype),
    'count': 1,
    'crs': raster_crs  # Hardcodes the projection directly into the GeoTIFF headers
})

# Commit the 2D floating-point grid matrix to geographical disk file
with rasterio.open(raster_output_path, "w", **raster_profile) as dst:
    dst.write(NO_out, 1)
print(f"-> Successfully saved GIS Raster Core to: {raster_output_path}")
print("All exports completed safely.")

# 1. Load the layer paths from your GeoPackage
gpkg_path = "../data/pc_openness_analysis.gpkg"

gdf_canyons = gpd.read_file(gpkg_path, layer="PO_Low_Features_Canyons")
gdf_plateaus = gpd.read_file(gpkg_path, layer="NO_High_Features_Plateaus")

# 2. Plot the first layer interactively
# We use color mapping and a baseline background map (like OpenStreetMap)
m = gdf_canyons.explore(color="#00d2ff", name="Canyons (PO Low)", tiles="CartoDB positron")

# 3. Layer the second dataset on top of the same map canvas
gdf_plateaus.explore(m=m, color="#ff5500", name="Plateaus (NO High)")

# Display the map view frame
m
