Speckle Statistics

This notebook will provide an empirical demonstration of speckle - how it originates, how it visually and statistically looks like, and some of the most common approaches to filter it.

Speckle is defined as a kind of noise that affects all radar images. Given the multiple scattering contributions originating from the various elementary objects present within a resolution cell, the resulting backscatter signal can be described as a random constructive and destructive interference of wavelets. As a consequence, speckle is the reason why a granular pattern normally affects SAR images, making it more challenging to interpret and analyze them.

Credits: ESRI

import json
from functools import partial

import holoviews as hv
import intake
import matplotlib.pyplot as plt
import numpy as np
from holoviews.streams import RangeXY
from scipy.ndimage import uniform_filter

hv.extension("bokeh")

Let’s make an example of a cornfield (with a typical backscattering value of about -10 dB). According to the following equation:

\[ \sigma^0 = \frac{1}{\text{area}} \sum_{n \in \text{area}} \sigma_n \]

We should ideally have a uniform discrete sigma naught \(\sigma^0\) value, given that the cornfield pixel is the only individual contributor.

However, since we already learned from the previous notebooks that a pixel’s ground size can be in the order of tens of meters (i.e., 10 meters for Sentinel-1), we can imagine that different distributed targets in the scene contribute to the global backscattered information.

Let´s replicate this behavior with an ideal uniform area constituted by 100 pixels and then by adding 30% of speckle.

ideal_backscatter = -10  # in dB, a typical value for cornfields
width = 12
size = (width, width)
ideal_data = np.full(size, ideal_backscatter)
ideal_data_linear = 10 ** (
    ideal_data / 10
)  # Convert dB to linear scale for speckle addition

speckle_fraction = 0.3
num_speckled_pixels = int(
    size[0] * size[1] * speckle_fraction
)  # Rayleigh speckle noise
speckled_indices = np.random.choice(
    width * width, num_speckled_pixels, replace=False
)  # random indices for speckle

# Initialize speckled data as the same as the ideal data
speckled_data_linear = ideal_data_linear.copy()

speckle_noise = np.random.gumbel(scale=1.0, size=num_speckled_pixels)
speckled_data_linear.ravel()[
    speckled_indices
] *= speckle_noise  # Add speckle to the selected pixels

ideal_data_dB = 10 * np.log10(ideal_data_linear)
speckled_data_dB = 10 * np.log10(speckled_data_linear)
plt.figure(figsize=(16, 10))

# Ideal data
plt.subplot(2, 2, 1)
plt.imshow(ideal_data_dB, cmap="gray", vmin=-20, vmax=0)
plt.title("Ideal Backscatter (Cornfield)")
plt.colorbar(label="Backscatter (dB)")

# Speckled data
plt.subplot(2, 2, 2)
plt.imshow(speckled_data_dB, cmap="gray", vmin=-20, vmax=0)
plt.title(f"Speckled Backscatter ({int(speckle_fraction * 100)}% of Pixels)")
plt.colorbar(label="Backscatter (dB)")

bins = 25
hist_ideal, bins_ideal = np.histogram(ideal_data_dB.ravel(), bins=bins, range=(-20, 0))
hist_speckled, bins_speckled = np.histogram(
    speckled_data_dB.ravel(), bins=bins, range=(-20, 0)
)
max_freq = max(
    hist_ideal.max(), hist_speckled.max()
)  # maximum frequency for normalization

# Histogram for ideal data
plt.subplot(2, 2, 3)
plt.hist(ideal_data_dB.ravel(), bins=bins, range=(-20, 0), color="gray", alpha=0.7)
plt.ylim(0, max_freq)
plt.title("Histogram of Ideal Backscatter")
plt.xlabel("Backscatter (dB)")
plt.ylabel("Frequency")

# Histogram for speckled data
plt.subplot(2, 2, 4)
plt.hist(speckled_data_dB.ravel(), bins=bins, range=(-20, 0), color="gray", alpha=0.7)
plt.ylim(0, max_freq)
plt.title(f"Histogram of Speckled Backscatter ({int(speckle_fraction * 100)}%)")
plt.xlabel("Backscatter (dB)")
plt.ylabel("Frequency")

plt.tight_layout()
/tmp/ipykernel_4627/3459812397.py:26: RuntimeWarning: invalid value encountered in log10
  speckled_data_dB = 10 * np.log10(speckled_data_linear)
../../../../_images/6c120001341b92b2dc0662496b6a2ecf6c21ff15950b94b74716589af32045bc.png

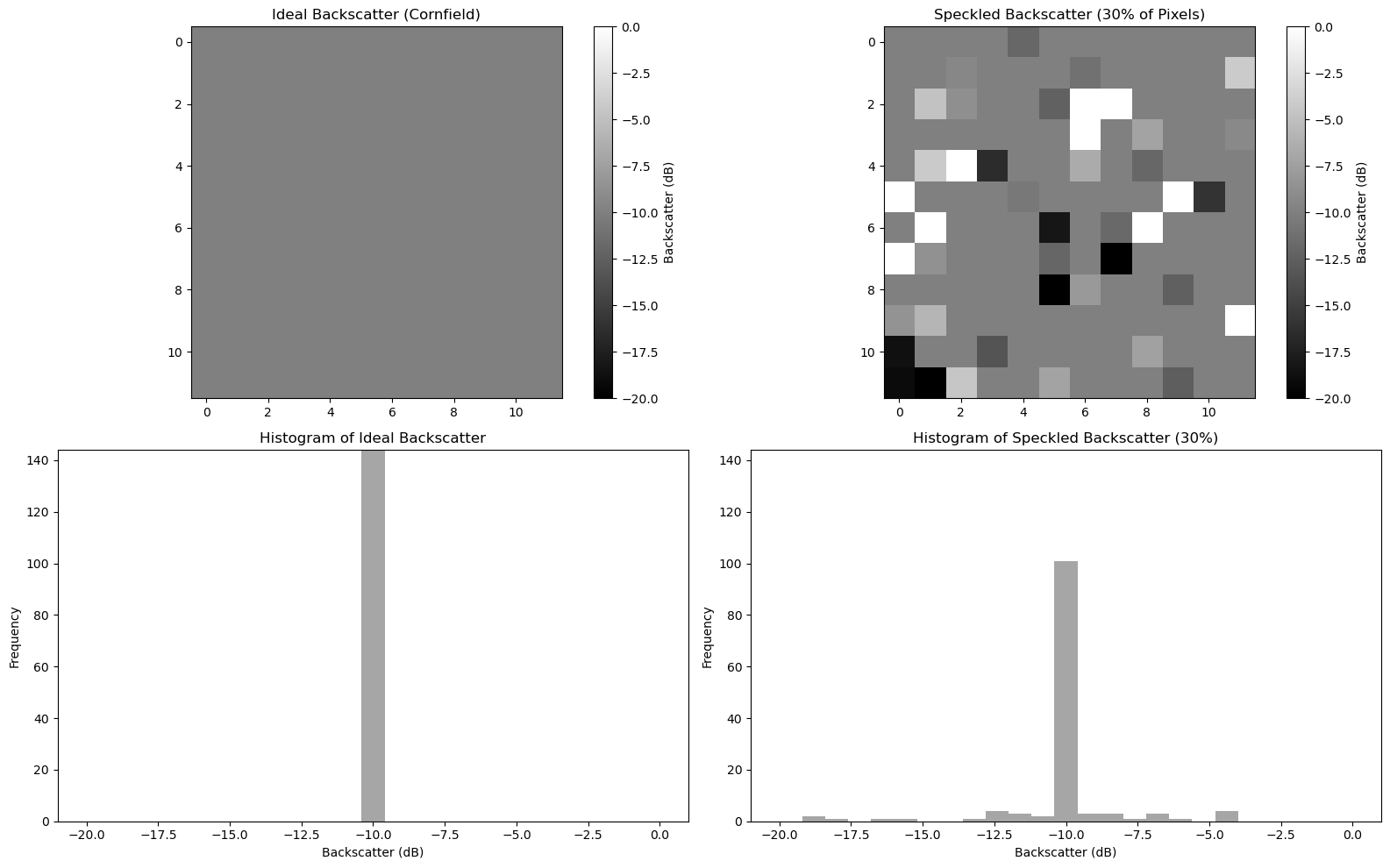

Figure 1: Synthetic data that emulates speckles in microwave backscattering

We can imagine that the second plot represents a real SAR acquisition over a cornfield, while the first plot represents an ideal uniform SAR image over a cornfield land (no speckle). The introduction of a simulated 30% speckle noise could be related to the presence of distributed scatterers of any sort present in the scene, which would cause a pixel-to-pixel variation in terms of intensity.

All the random contributions (such as the wind) would result in a different speckle pattern each time a SAR scene is acquired over the same area. Many subpixel contributors build up a complex scattered pattern in any SAR image, making it erroneous to rely on a single pixel intensity for making reliable image analysis. In order to enhance the degree of usability of a SAR image, several techniques have been put in place to mitigate speckle. We will now show two of the most common approaches: the temporal and the spatial filter.

Lake Neusiedl data

We load a dataset that contains the CORINE land cover and Sentinel-1 \(\sigma^0_E\) at a 20 meter resolution. This is the same data presented in notebook 6.

uri = "https://git.geo.tuwien.ac.at/public_projects/microwave-remote-sensing/-/raw/main/microwave-remote-sensing.yml"
cat = intake.open_catalog(uri)
fused_ds = cat.speckle.read().compute()
fused_ds
<xarray.Dataset> Size: 108MB
Dimensions:      (y: 1221, x: 1230, time: 8)
Coordinates:
    spatial_ref  int64 8B 0
  * time         (time) datetime64[ns] 64B 2023-08-05T16:51:22 ... 2023-10-28...
  * x            (x) float64 10kB 5.282e+06 5.282e+06 ... 5.294e+06 5.294e+06
  * y            (y) float64 10kB 1.571e+06 1.571e+06 ... 1.559e+06 1.559e+06
Data variables:
    land_cover   (y, x) float64 12MB 12.0 12.0 12.0 12.0 ... 41.0 41.0 41.0 41.0
    sig0         (time, y, x) float64 96MB -6.99 -7.32 -8.78 ... -14.32 -14.22

We also create the same dashboard for backscatter of different landcover types over time. In order to make this code reusable and adaptable we will define the following function plot_variability, which allows the injection of a spatial and/or temporal filter. It is not important to understand all the code of the following cell!

# Load encoding
with cat.corine_cmap.read()[0] as f:
    color_mapping_data = json.load(f)

# Get mapping
color_mapping = {item["value"]: item for item in color_mapping_data["land_cover"]}

# Get landcover codes present in the image
present_landcover_codes = np.unique(
    fused_ds.land_cover.values[~np.isnan(fused_ds.land_cover.values)].astype(int)
)


def load_image(var_ds, time, land_cover, x_range, y_range, filter_fun_spatial=None):
    """
    Callback Function Landcover.

    Parameters
    ----------
    time: panda.datetime
        time slice
    landcover: int
        land cover type
    x_range: array_like
        longitude range
    y_range: array_like
        latitude range

    Returns
    -------
    holoviews.Image
    """

    if time is not None:
        var_ds = var_ds.sel(time=time)

    if land_cover == "\xa0\xa0\xa0 Complete Land Cover":
        sig0_selected_ds = var_ds.sig0
    else:
        land_cover_value = int(land_cover.split()[0])
        mask_ds = var_ds.land_cover == land_cover_value
        sig0_selected_ds = var_ds.sig0.where(mask_ds)

    if filter_fun_spatial is not None:
        sig0_np = filter_fun_spatial(sig0_selected_ds.values)
    else:
        sig0_np = sig0_selected_ds.values

    # Convert unfiltered data into Holoviews Image
    img = hv.Dataset(
        (sig0_selected_ds["x"], sig0_selected_ds["y"], sig0_np), ["x", "y"], "sig0"
    )

    if x_range and y_range:
        img = img.select(x=x_range, y=y_range)

    return hv.Image(img)


def plot_variability(var_ds, filter_fun_spatial=None, filter_fun_temporal=None):

    robust_min = var_ds.sig0.quantile(0.02).item()
    robust_max = var_ds.sig0.quantile(0.98).item()

    bin_edges = [
        i + j * 0.5
        for i in range(int(robust_min) - 2, int(robust_max) + 2)
        for j in range(2)
    ]

    land_cover = {"\xa0\xa0\xa0 Complete Land Cover": 1}
    land_cover.update(
        {
            f"{int(value): 02} {color_mapping[value]['label']}": int(value)
            for value in present_landcover_codes
        }
    )
    time = var_ds.sig0["time"].values

    rangexy = RangeXY()

    if filter_fun_temporal is not None:
        var_ds = filter_fun_temporal(var_ds)
        load_image_ = partial(
            load_image, var_ds=var_ds, filter_fun_spatial=filter_fun_spatial, time=None
        )
        dmap = (
            hv.DynamicMap(load_image_, kdims=["Landcover"], streams=[rangexy])
            .redim.values(Landcover=land_cover)
            .hist(normed=True, bins=bin_edges)
        )

    else:
        load_image_ = partial(
            load_image, var_ds=var_ds, filter_fun_spatial=filter_fun_spatial
        )
        dmap = (
            hv.DynamicMap(load_image_, kdims=["Time", "Landcover"], streams=[rangexy])
            .redim.values(Time=time, Landcover=land_cover)
            .hist(normed=True, bins=bin_edges)
        )

    image_opts = hv.opts.Image(
        cmap="Greys_r",
        colorbar=True,
        tools=["hover"],
        clim=(robust_min, robust_max),
        aspect="equal",
        framewise=False,
        frame_height=500,
        frame_width=500,
    )

    hist_opts = hv.opts.Histogram(width=350, height=555)

    return dmap.opts(image_opts, hist_opts)

Now, lets work on the real-life dataset to see how speckle actually looks like.

plot_variability(fused_ds)
