easy.gems for HEALPix Analysis & Visualization

In this section, you’ll learn:

Utilizing intake to open a HEALPix data catalog
Using the healpix package to perform HEALPix operations to look at basic statistics
Plotting HEALPix data via easy.gems functionality

Prerequisites

Concepts	Importance	Notes
HEALPix overview	Necessary

Time to learn: 30 minutes

Open data catalog

Note

If you think that you first need to learn about Intake, Pythia’s Intake Cookbook is a great resource to do so.

Let us use the online data catalog from the WCRP’s Digital Earths Global Hackathon 2025’s catalog repository using intake and read the output of the ICON simulation run ngc4008, which is stored in the HEALPix format:

import intake

# Hackathon data catalogs
cat_url = "https://digital-earths-global-hackathon.github.io/catalog/catalog.yaml"
cat = intake.open_catalog(cat_url).online
model_run = cat.icon_ngc4008

Note

We highly recommend checking out the easy.gems documentation on HEALPix data catalogs to understand the zoom and time parametrization of the model runs in the catalogs. In short, each model run has an independent Dataset for each combination of the zoom and time parameters as depicted below (image credit easy.gems documentation on HEALPix data catalogs, and “PT30M” in this figure should be “PT15M”, 15 minutes, for the hackathon data we are using here)

Explore datasets

So, the coarsest dataset in this model run would be as follows (Even if we called it without specifying any parameters, i.e. model_run.to_dask(), the result would be same as the ds_coarsest below since this model run defaults to the coarsest settings):

Now, let us look at a dataset with finer zoom level still with the coarsest time and another dataset with a finer zoom level and the finest time (which may be useful for daily analyses) dataset:

HEALPix basic stats with the`healpix` package

Let us look at the global and Boulder, CO, USA temperature averages for a 3-year time-slice of the whole dataset.

For this, we will first need to define a few HEALPix helper functions to get the nest and nside values from the dataset, then find the HEALPix pixel that Boulder coords fall in, and finally plot those temporal averages using matplotlib.

import healpix as hp
import matplotlib.pylab as plt

HEALPix helper functions

def get_nest(ds):
    return ds.crs.healpix_order == "nest"

def get_nside(ds):
    return ds.crs.healpix_nside

HEALPix pixel containing Boulder’s coords

%%time
boulder_lon = -105.2747
boulder_lat = 40.0190

boulder_pixel = hp.ang2pix(
    get_nside(ds_fine), boulder_lon, boulder_lat, lonlat=True, nest=get_nest(ds_fine)
)

CPU times: user 262 μs, sys: 0 ns, total: 262 μs
Wall time: 266 μs

Global and Boulder’s temperature averages

%%time
time_slice = slice("2020-01-02T00:00:00.000000000", "2023-01-01T00:00:00.000000000")

ds_fine.tas.sel(time=time_slice).isel(cell=boulder_pixel).plot(label="Boulder")

ds_coarsest.tas.sel(time=time_slice).mean("cell").plot(label="Global mean")

plt.legend()

CPU times: user 353 ms, sys: 141 ms, total: 494 ms
Wall time: 2.95 s

<matplotlib.legend.Legend at 0x7fd2463588b0>

../_images/6a8e85680b1c9d4bcb07cf77cb0ad0bf65c994b2855367ff0979e0cecb578e96.png

Plotting with easy.gems and cartopy

In this part, we will look at the healpix_show function that is provided by easy.gems for convenient HEALPix plotting.

import easygems.healpix as eghp

import cartopy.crs as ccrs
import cartopy.feature as cf
import cmocean

Global plots

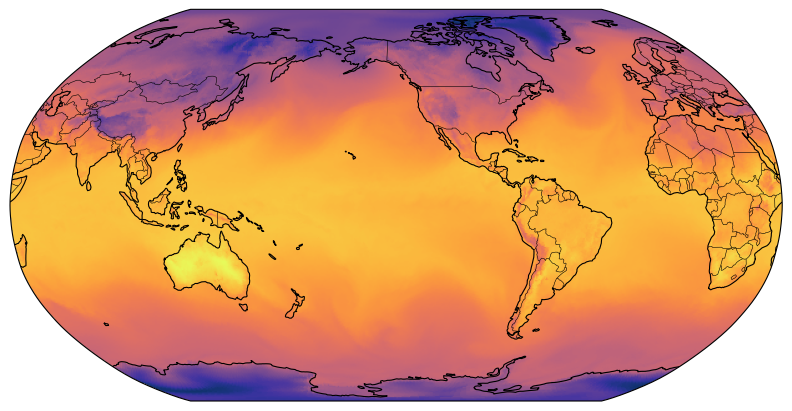

Most of this is matplotlib and cartopy code, but have a look at how eghp.healpix_show() is called. The following code will plot global temperature (at the first timestep for simplicity)

projection = ccrs.Robinson(central_longitude=-135.5808361)

fig, ax = plt.subplots(
    figsize=(8, 4), subplot_kw={"projection": projection}, constrained_layout=True
)

ax.set_global()

eghp.healpix_show(ds_fine.tas.isel(time=0), ax=ax, cmap=cmocean.cm.thermal)

ax.add_feature(cf.COASTLINE, linewidth=0.8)
ax.add_feature(cf.BORDERS, linewidth=0.4)

<cartopy.mpl.feature_artist.FeatureArtist at 0x7fd23aa1eec0>

/home/runner/miniconda3/envs/healpix-cookbook-dev/lib/python3.10/site-packages/cartopy/io/__init__.py:241: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/110m_physical/ne_110m_coastline.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

/home/runner/miniconda3/envs/healpix-cookbook-dev/lib/python3.10/site-packages/cartopy/io/__init__.py:241: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/110m_cultural/ne_110m_admin_0_boundary_lines_land.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

../_images/e08c096bd69ccde4da8494a333fa9a79e30949c43a89dba8d28f7508a9d91fbd.png

Regional plots

If plotting a region of interest is desired, it is also possible through setting extents of the matplotlib plot.

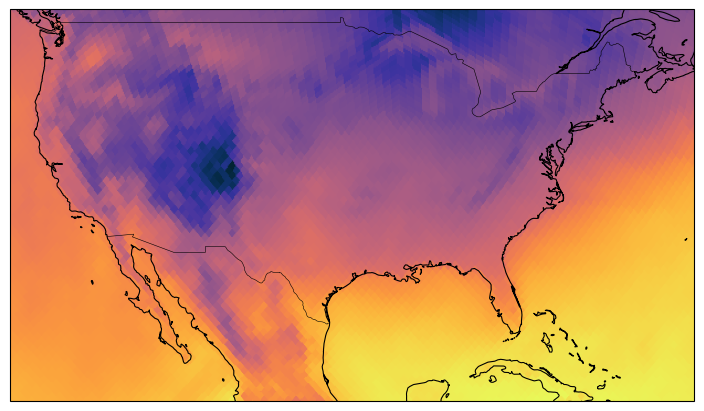

Let us look into USA map using the Boulder, CO, USA coords we had used before for simplicity:

projection = ccrs.Robinson(central_longitude=boulder_lon)

fig, ax = plt.subplots(
    figsize=(8, 4), subplot_kw={"projection": projection}, constrained_layout=True
)
ax.set_extent([boulder_lon-20, boulder_lon+40, boulder_lat-20, boulder_lat+10], crs=ccrs.PlateCarree())

eghp.healpix_show(ds_fine.tas.isel(time=0), ax=ax, cmap=cmocean.cm.thermal)

ax.add_feature(cf.COASTLINE, linewidth=0.8)
ax.add_feature(cf.BORDERS, linewidth=0.4)

<cartopy.mpl.feature_artist.FeatureArtist at 0x7fd23aa856f0>

/home/runner/miniconda3/envs/healpix-cookbook-dev/lib/python3.10/site-packages/cartopy/io/__init__.py:241: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/50m_physical/ne_50m_coastline.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

/home/runner/miniconda3/envs/healpix-cookbook-dev/lib/python3.10/site-packages/cartopy/io/__init__.py:241: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/50m_cultural/ne_50m_admin_0_boundary_lines_land.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

../_images/eba22a450ddd4567f74f347048df575b2a177d2292b5b2c6df158b81a3993439.png

Further `easy.gems` and `healpix`

These are only a sampling of HEALPix and easy.gems capabilities; if you are interested in learning more, be sure to check out the usage examples at the easy.gems HEALPix Documentation.

What is next?

The next section will provide an UXarray workflow that loads in and analyzes & visualizes HEALPix data.
