Transfer Functions
You can change a visualization’s appearance by accessing and modifying its transfer function.
import example_utils
from vapor import session, renderer, dataset, camera, transferfunction
from vapor.utils import histogram
ses = session.Session()
data = example_utils.OpenExampleDataset(ses)
ren = data.NewRenderer(renderer.VolumeRenderer)
ses.GetCamera().LookAt((32, 120, 120), (32, 32, 32))
ses.Show()
Warning: sysroot "/Applications/Xcode_12.4.app/Contents/Developer/Platforms/MacOSX.platform/Developer/SDKs/MacOSX.sdk" not found (ignoring for now).
Vapor 3.9.3
Python 3.9.19 (/opt/anaconda3/envs/vapor)
OpenGL 4.1 Metal - 83.1
UNSUPPORTED (log once): POSSIBLE ISSUE: unit 3 GLD_TEXTURE_INDEX_3D is unloadable and bound to sampler type (Float) - using zero texture because texture unloadable
![../_images/e0612cb8ca7a0ecba2e349f8b3d281f77ef161e55f9415c5776077c5a5b7e960.png](../_images/e0612cb8ca7a0ecba2e349f8b3d281f77ef161e55f9415c5776077c5a5b7e960.png)
Changing Opacities
We created a volume rendering however it is fully opaque. We can use a transfer function to adjust the visible portions. Before we adjust the opacity map of the TF, we get a histogram to help us determine what we want to hide.

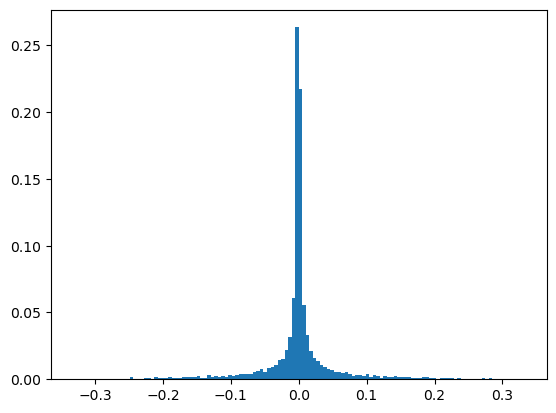

histogram.ShowMatPlotLibHistogram(ses, ren)
![../_images/9996235b994e2413a963f3c5dcaf7e815ee7665dcad94acc7fc770b3e82d3bf4.png](../_images/9996235b994e2413a963f3c5dcaf7e815ee7665dcad94acc7fc770b3e82d3bf4.png)
Usually we want to hide the most common value so below we construct an opacity map that accomplishes this.
# List of x,y pairs where x is the data value and y is the opacity for that data value
opacities = [(-0.3, 1), (-0.1, 0), (0.1, 0), (0.3, 1)]

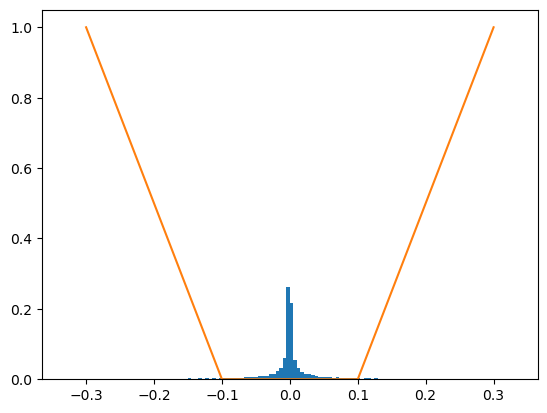

We can get the matplotlib histogram plot and add our opacity map to it to compare.
plt = histogram.GetMatPlotLibHistogram(ses, ren)
plt.plot(*zip(*opacities))
plt.show()
![../_images/b7191fd7c490c8f5163acf3c5c1a2f5e8df20510f3cf6cbe80ce63eb3c64b612.png](../_images/b7191fd7c490c8f5163acf3c5c1a2f5e8df20510f3cf6cbe80ce63eb3c64b612.png)

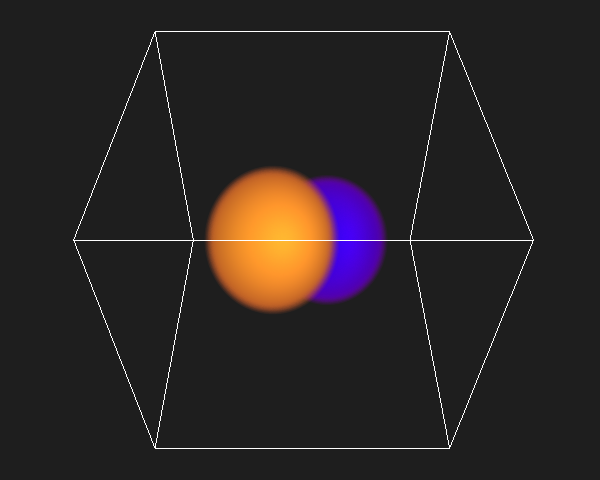

Now we apply the map to the transfer function
# Renderers can have multiple transfer functions.
# GetPrimaryTransferFunction returns the one that is usually the most useful.
# You can use `tf.GetTransferFunction(var_name)` to get other transfer functions.
tf = ren.GetPrimaryTransferFunction()
tf.SetOpacityControlPoints(opacities)
ses.Show()

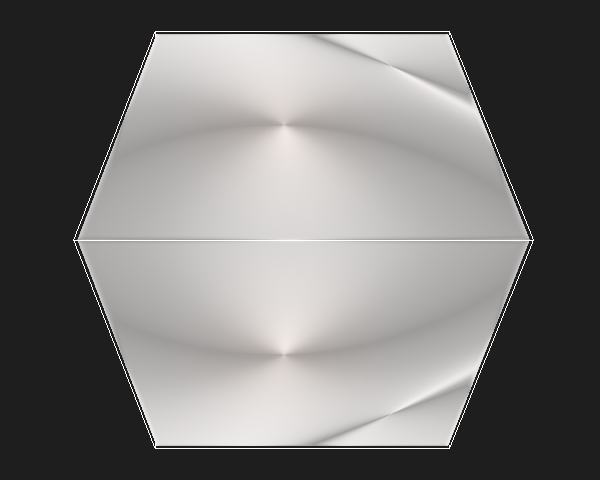

![../_images/a99e7785df071fdca34f57b23ada7010809ad4a6cb9f89e8da31b32e5452f654.png](../_images/a99e7785df071fdca34f57b23ada7010809ad4a6cb9f89e8da31b32e5452f654.png)
You can adjust the colormap in a similar fashion. Use help(tf)
for more information.
Vapor includes a list of built-in colormaps and these can be applied with tf.LoadBuiltinColormap(name)
Builtin Colormaps
tf.LoadBuiltinColormap("Sequential/BlackBodyExtended")
ses.Show()
![../_images/9e0aad32a7f67d201b97538801082c6021185e88a5f12b8e143ef3370b1bb416.png](../_images/9e0aad32a7f67d201b97538801082c6021185e88a5f12b8e143ef3370b1bb416.png)

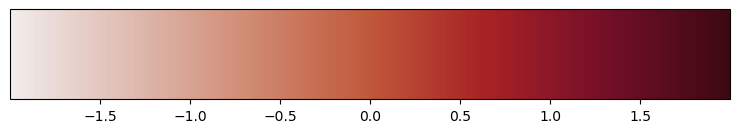

List of All Builtin Colormaps
ses.DeleteRenderer(ren)
ren = data.NewRenderer(renderer.TwoDDataRenderer)
tf = ren.GetPrimaryTransferFunction()
for cmap in transferfunction.TransferFunction.ListBuiltinColormaps():
tf.LoadBuiltinColormap(cmap)
print(cmap)
tf.ShowMatPlotLibColorbar()

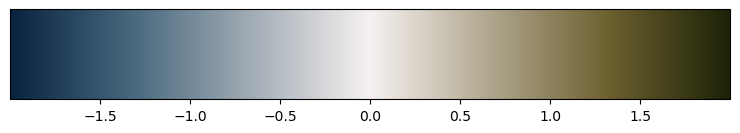

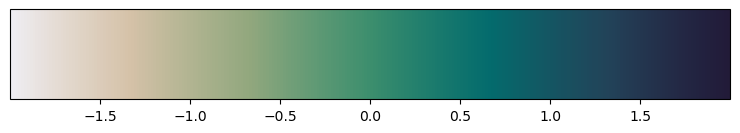

Highlighting/topo
![../_images/6b974b7eefe2bb929945df70bcf142b70b163c08651a14b626539aca86be502b.png](../_images/6b974b7eefe2bb929945df70bcf142b70b163c08651a14b626539aca86be502b.png)

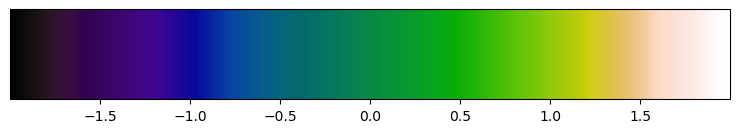

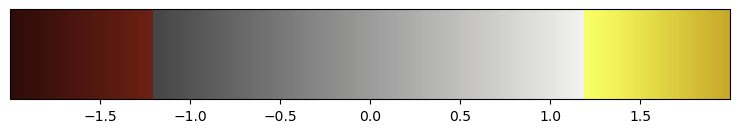

Highlighting/oxy
![../_images/0185659624893a6c60432010b08fcad95991266fdbdfa3fc7ebf54abeb7ab35f.png](../_images/0185659624893a6c60432010b08fcad95991266fdbdfa3fc7ebf54abeb7ab35f.png)

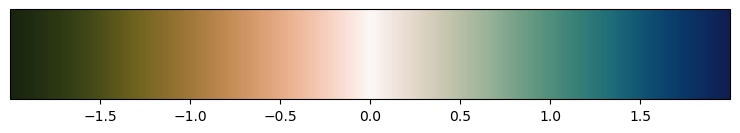

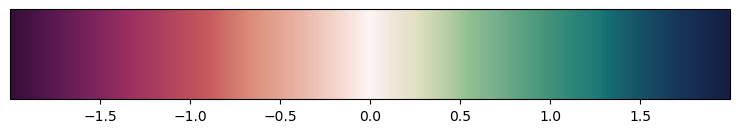

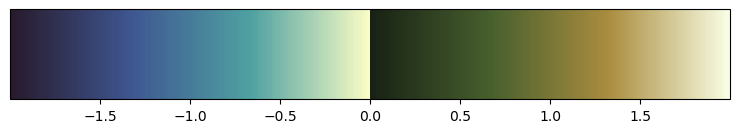

Diverging/tarn
![../_images/f063f27e0160fcaf6706ed7f0e05a5399db1556a0c04205303b16ccba6e3ac1d.png](../_images/f063f27e0160fcaf6706ed7f0e05a5399db1556a0c04205303b16ccba6e3ac1d.png)
Diverging/curl
![../_images/a253968331f1494c900605ce41c4559341d0ec9340db7f50d244d710ca09aa84.png](../_images/a253968331f1494c900605ce41c4559341d0ec9340db7f50d244d710ca09aa84.png)
Diverging/CoolWarmSmooth
![../_images/404576a499c96426d82008be790950acd410bd71be5258241b48fc0a1073f3f5.png](../_images/404576a499c96426d82008be790950acd410bd71be5258241b48fc0a1073f3f5.png)

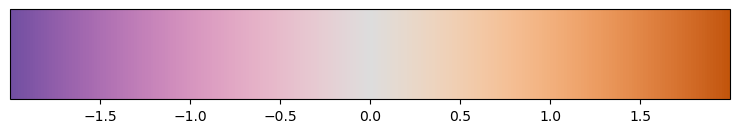

Diverging/PurpleWhiteOrange
![../_images/d593c54c9af6f18410f56c56d270e3afda7482479b5ebd49772bfd716f8a237f.png](../_images/d593c54c9af6f18410f56c56d270e3afda7482479b5ebd49772bfd716f8a237f.png)
Diverging/diff
![../_images/cf52bc63e268a3505a070729c05d7d12e5ca563464fc7599bf12b7d2a2e4fce3.png](../_images/cf52bc63e268a3505a070729c05d7d12e5ca563464fc7599bf12b7d2a2e4fce3.png)
Diverging/GreenWhiteRed
![../_images/d1233391a458b9ef573fef05693ddfa93cd4363e0393213347827bd66ec78663.png](../_images/d1233391a458b9ef573fef05693ddfa93cd4363e0393213347827bd66ec78663.png)

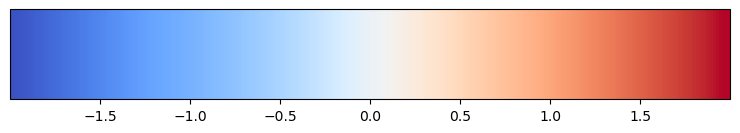

Diverging/CoolWarmBent
![../_images/da7b075b2491daea08671d513df2e2ead11846c6b954f08d606e9dfe24f44459.png](../_images/da7b075b2491daea08671d513df2e2ead11846c6b954f08d606e9dfe24f44459.png)

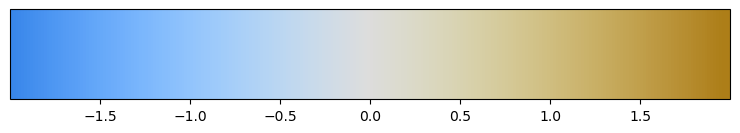

Diverging/BlueWhiteGold
![../_images/8940709aa905b893b83fb8e7adbefe62271f0736913bb9550f88b20d7596a813.png](../_images/8940709aa905b893b83fb8e7adbefe62271f0736913bb9550f88b20d7596a813.png)

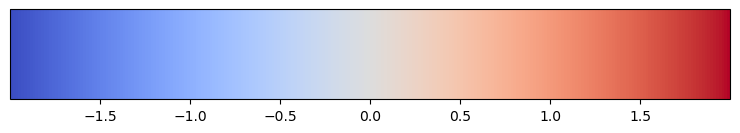

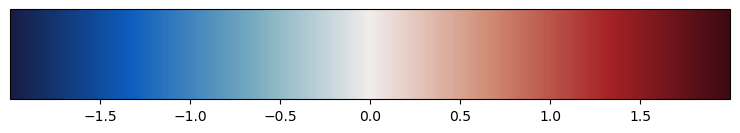

Diverging/CoolWarm
![../_images/f496790457f502ee84c3dea8b4c1231d2a8d5df553045df38972ceedb4287dfb.png](../_images/f496790457f502ee84c3dea8b4c1231d2a8d5df553045df38972ceedb4287dfb.png)

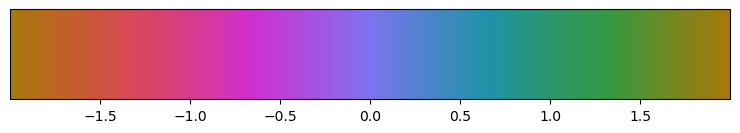

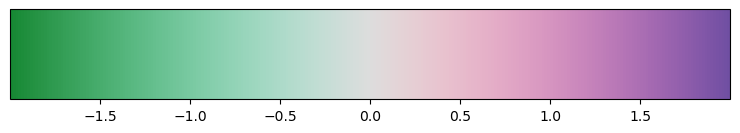

Diverging/GreenWhitePurple
![../_images/6161270fd700a5920690a64fc4bb81f2959356d62172fa6c662b3383d5d6163a.png](../_images/6161270fd700a5920690a64fc4bb81f2959356d62172fa6c662b3383d5d6163a.png)
Diverging/balance
![../_images/d5866d369466ce27ce73b51966cb0e3731102d573faada7e6dccae1aba46a80d.png](../_images/d5866d369466ce27ce73b51966cb0e3731102d573faada7e6dccae1aba46a80d.png)

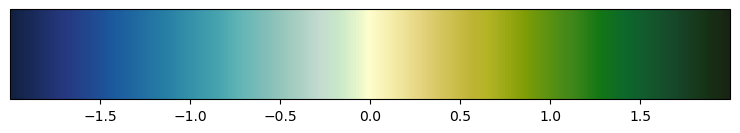

Diverging/delta
![../_images/7c61f042a38b06054c49f3e0ee4ac7dde823916fc9df270146682eb31fef5209.png](../_images/7c61f042a38b06054c49f3e0ee4ac7dde823916fc9df270146682eb31fef5209.png)

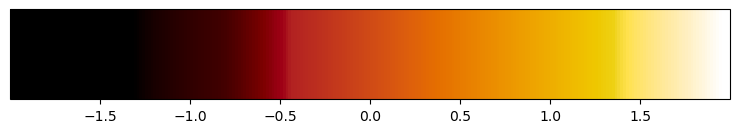

Sequential/BlackBody
![../_images/15b6d0f95d7a31f1cd966b17dd068ad960e72a4e1feb57a161aed19392cd6690.png](../_images/15b6d0f95d7a31f1cd966b17dd068ad960e72a4e1feb57a161aed19392cd6690.png)
Sequential/thermal
![../_images/3137abe91fb7140eb48d0bfc837557b9eb69285a669a614802dd803f932882d8.png](../_images/3137abe91fb7140eb48d0bfc837557b9eb69285a669a614802dd803f932882d8.png)
Sequential/tempo
![../_images/484ee4f8cafd4dca49b955c2564360ab508815b9c72f97d3062b97617bd31b5d.png](../_images/484ee4f8cafd4dca49b955c2564360ab508815b9c72f97d3062b97617bd31b5d.png)
Sequential/speed
![../_images/1cdd77086e340fc2ee3ab0097e918a21f1b6750eb4d8649bf1641b923761e2e8.png](../_images/1cdd77086e340fc2ee3ab0097e918a21f1b6750eb4d8649bf1641b923761e2e8.png)
Sequential/Kindlmann
![../_images/2328f1878b7006757ecce8a2f3f109d4f3c91897ae14f390dd6011e7e0d34ff6.png](../_images/2328f1878b7006757ecce8a2f3f109d4f3c91897ae14f390dd6011e7e0d34ff6.png)
Sequential/KindlmannExtended
![../_images/f1f58f4ad28d90c3d0f50f51fb48bd47b6f92c01fd40733f4a1abd5ec8e3f928.png](../_images/f1f58f4ad28d90c3d0f50f51fb48bd47b6f92c01fd40733f4a1abd5ec8e3f928.png)

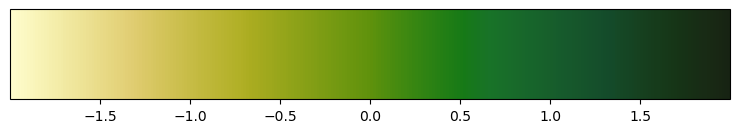

Sequential/algae
![../_images/e568e35fa14bf565795710fbbd4495c0efec73cd5891d385604199c986c85876.png](../_images/e568e35fa14bf565795710fbbd4495c0efec73cd5891d385604199c986c85876.png)

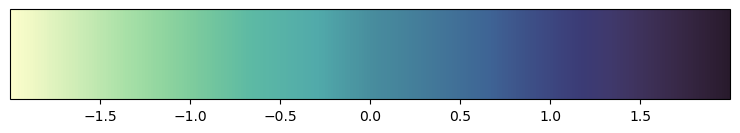

Sequential/deep
![../_images/d12004b3f2e89283ae9f21a302711bd92c4d20b5c9ab549ad702f6b094f1761c.png](../_images/d12004b3f2e89283ae9f21a302711bd92c4d20b5c9ab549ad702f6b094f1761c.png)

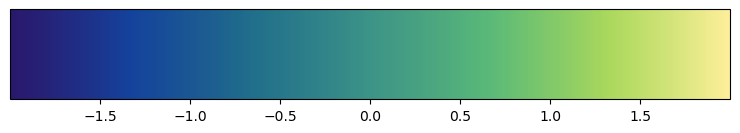

Sequential/haline
![../_images/7869fd55b46c668c0861d930238ac46f7ad55053830c3f52347b7387b6802a37.png](../_images/7869fd55b46c668c0861d930238ac46f7ad55053830c3f52347b7387b6802a37.png)
Sequential/turbid
![../_images/c0c2860b0168d387fdb9650ff59f795a839a8d33ddf8a9afeef612f168edcf35.png](../_images/c0c2860b0168d387fdb9650ff59f795a839a8d33ddf8a9afeef612f168edcf35.png)

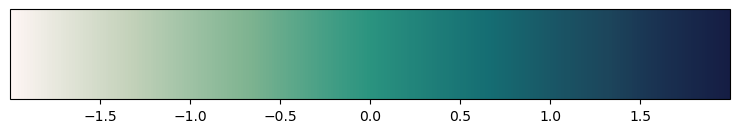

Sequential/rain
![../_images/10751c42c7ef1399ae2767e95482197a7a9f5f6c77116275b0e9c092f54e330b.png](../_images/10751c42c7ef1399ae2767e95482197a7a9f5f6c77116275b0e9c092f54e330b.png)

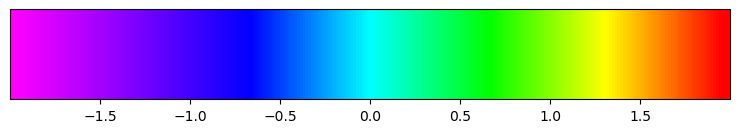

Sequential/Rainbow
![../_images/4fbdae4a11ed3a6309a99520d556ef76dcb7d411b09abfda79cb49d632f4684f.png](../_images/4fbdae4a11ed3a6309a99520d556ef76dcb7d411b09abfda79cb49d632f4684f.png)
Sequential/phase
![../_images/ec47d34e74c2812bb1b0a29b4dfc1bb9341c960214f54ec9e8c7ccdc19b475d0.png](../_images/ec47d34e74c2812bb1b0a29b4dfc1bb9341c960214f54ec9e8c7ccdc19b475d0.png)

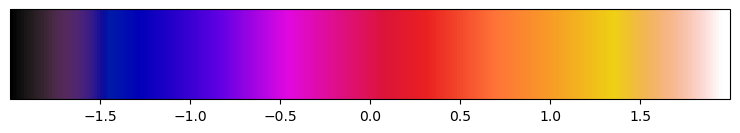

Sequential/BlackBodyExtended
