Explore WRF simulations of the surface albedo
Import modules
from datetime import timedelta
import cmweather
import xarray as xr
import xwrf
import glob
import matplotlib.pyplot as plt
from matplotlib import cm
import numpy as np
Load WRF data in January 2022 and April 2023
files_202201 = sorted(glob.glob("/data/home/yxie/wrf_data/jan_2022/*"))
files_202304 = sorted(glob.glob("/data/home/yxie/wrf_data/apr_2023/*"))
# pickd dates for each event: onset and five days after that
files_case1 = files_202201[1:7] # daily
files_case2 = files_202201[24:30] # daily
files_case3 = files_202304[8:32] # every six hours
# double check the dates
files_case1
['/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-02.nc',
'/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-03.nc',
'/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-04.nc',
'/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-05.nc',
'/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-06.nc',
'/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-07.nc']
files_case2
['/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-25.nc',
'/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-26.nc',
'/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-27.nc',
'/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-28.nc',
'/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-29.nc',
'/data/home/yxie/wrf_data/jan_2022/wrfhourly_d03_2022-01-30.nc']
files_case3
['/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-03_00:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-03_06:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-03_12:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-03_18:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-04_00:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-04_06:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-04_12:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-04_18:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-05_00:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-05_06:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-05_12:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-05_18:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-06_00:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-06_06:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-06_12:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-06_18:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-07_00:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-07_06:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-07_12:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-07_18:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-08_00:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-08_06:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-08_12:00:00',
'/data/home/yxie/wrf_data/apr_2023/wrfout_d03_2023-04-08_18:00:00']
ds = xr.open_dataset(files_case1[0]).xwrf.postprocess()
#ds = xr.open_dataset(files_case1[0])
ds
<xarray.Dataset> Size: 78MB
Dimensions: (Time: 24, y: 201, x: 201)
Coordinates:
* Time (Time) datetime64[ns] 192B 2022-01-02 ... 2022-01-02T23:0...
* y (y) float64 2kB -5.6e+04 -5.55e+04 ... 4.35e+04 4.4e+04
* x (x) float64 2kB -5.344e+04 -5.294e+04 ... 4.656e+04
Data variables: (12/22)
Times (Time) |S19 456B b'2022-01-02_00:00:00' ... b'2022-01-02_...
Q2 (Time, y, x) float32 4MB ...
T2 (Time, y, x) float32 4MB ...
PSFC (Time, y, x) float32 4MB ...
U10 (Time, y, x) float32 4MB ...
V10 (Time, y, x) float32 4MB ...
... ...
EMISS (Time, y, x) float32 4MB ...
HFX (Time, y, x) float32 4MB ...
QFX (Time, y, x) float32 4MB ...
LH (Time, y, x) float32 4MB ...
SNOWC (Time, y, x) float32 4MB ...
wrf_projection object 8B +proj=lcc +x_0=0 +y_0=0 +a=6370000 +b=6370000 +...
Attributes: (12/88)
TITLE: OUTPUT FROM WRF V4.4 MODEL
START_DATE: 2021-12-31_00:00:00
WEST-EAST_GRID_DIMENSION: 202
SOUTH-NORTH_GRID_DIMENSION: 202
BOTTOM-TOP_GRID_DIMENSION: 50
DX: 500.0
... ...
ISURBAN: 13
ISOILWATER: 14
HYBRID_OPT: 2
ETAC: 0.2
history: Sat Mar 25 11:56:03 2023: ncrcat /global...
NCO: netCDF Operators version 5.0.1 (Homepage...Visualize the snow albedo data
ds.ALBEDO
<xarray.DataArray 'ALBEDO' (Time: 24, y: 201, x: 201)> Size: 4MB
[969624 values with dtype=float32]
Coordinates:
* Time (Time) datetime64[ns] 192B 2022-01-02 ... 2022-01-02T23:00:00
* y (y) float64 2kB -5.6e+04 -5.55e+04 -5.5e+04 ... 4.35e+04 4.4e+04
* x (x) float64 2kB -5.344e+04 -5.294e+04 ... 4.606e+04 4.656e+04
Attributes:
FieldType: 104
MemoryOrder: XY
description: ALBEDO
stagger:
cell_methods: Time: mean
grid_mapping: wrf_projectionVisualize snow albedo for the three cases
Case 1: control event - Jan 2-8, 2022
Case 2: black carbon event - Jan 25-31, 2022

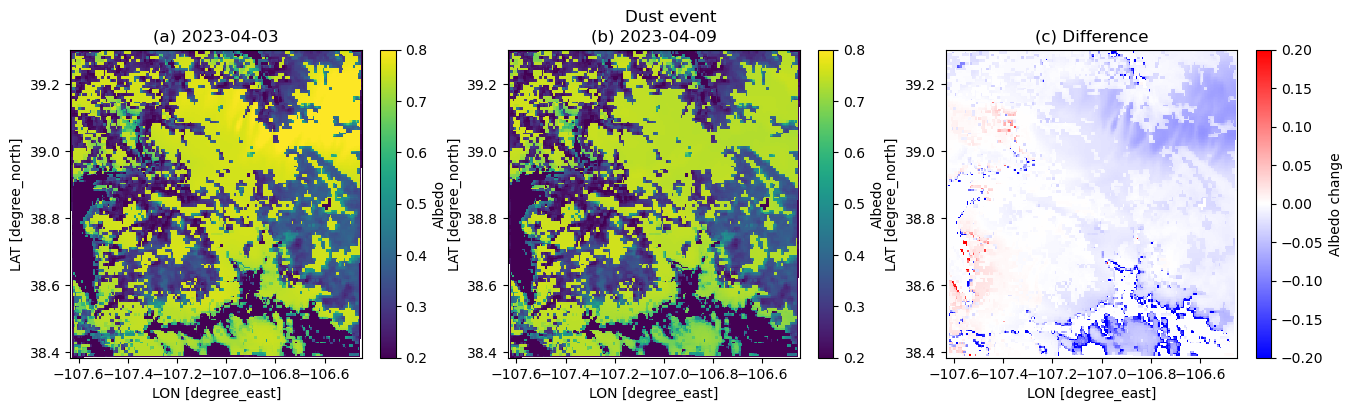

Case 3: dust event - Apr 3-9, 2023
dscase1_ini = xr.open_dataset(files_case1[0]).xwrf.postprocess()
dscase1_end = xr.open_dataset(files_case1[-1]).xwrf.postprocess()
dscase2_ini = xr.open_dataset(files_case2[0]).xwrf.postprocess()
dscase2_end = xr.open_dataset(files_case2[-1]).xwrf.postprocess()
# choose 18 PM UTC, which corresponds to 12 PM in local time
dscase3_ini = xr.open_dataset(files_case3[3]).xwrf.postprocess()
dscase3_end = xr.open_dataset(files_case3[-1]).xwrf.postprocess()
Time series of simulated snow albedo

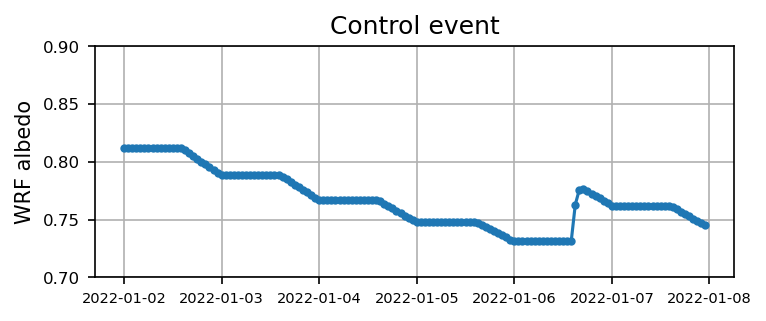

Case 1: Control event
for itt in range(0, len(files_case1) ):
ds = xr.open_dataset(files_case1[itt]).xwrf.postprocess()
alb = ds.ALBEDO[:,124, 109].squeeze().values
time = ds.Time.squeeze().values
if itt == 0:
alb1 = alb
time1 = time
else:
alb1 = np.append(alb1, alb)
time1 = np.append(time1, time)
Visualize the time series
plt.figure(figsize=(5.5,2),dpi=150)
plt.plot(time1, alb1,'.-')
plt.xticks(fontsize=7)
plt.yticks(np.arange(0.7,0.9,0.05),fontsize=8)
plt.ylabel('WRF albedo')
plt.grid()
plt.title('Control event')
plt.show()

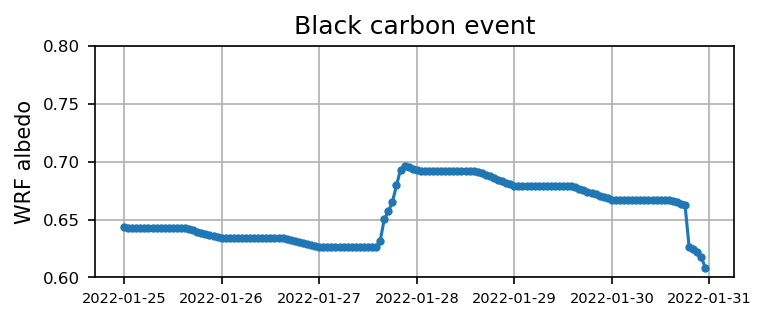

Case 2: Black carbon event
for itt in range(0, len(files_case2) ):
ds = xr.open_dataset(files_case2[itt]).xwrf.postprocess()
alb = ds.ALBEDO[:,124,109].squeeze().values
time = ds.Time.squeeze().values
if itt == 0:
alb2 = alb
time2 = time
else:
alb2 = np.append(alb2, alb)
time2 = np.append(time2, time)
plt.figure(figsize=(5.5,2),dpi=150)
plt.plot(time2, alb2,'.-')
plt.xticks(fontsize=7)
plt.yticks(np.arange(0.6,0.8,0.05),fontsize=8)
plt.ylabel('WRF albedo')
plt.grid()
plt.title('Black carbon event')
plt.show()

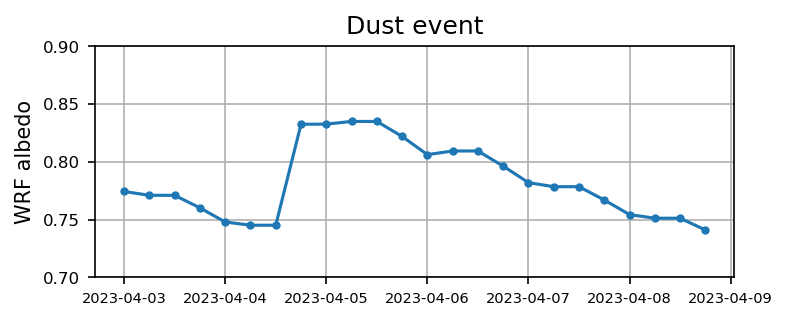

Case 3: Dust event
for itt in range(0, len(files_case3) ):
ds = xr.open_dataset(files_case3[itt]).xwrf.postprocess()
alb = ds.ALBEDO[:,124,109].squeeze().values
time = ds.Time.squeeze().values
if itt == 0:
alb3 = alb
time3 = time
else:
alb3 = np.append(alb3, alb)
time3 = np.append(time3, time)
plt.figure(figsize=(5.5,2),dpi=150)
plt.plot(time3, alb3,'.-')
plt.xticks(fontsize=7)
plt.yticks(np.arange(0.7,0.9,0.05),fontsize=8)
plt.ylabel('WRF albedo')
plt.grid()
plt.title('Dust event')
plt.show()

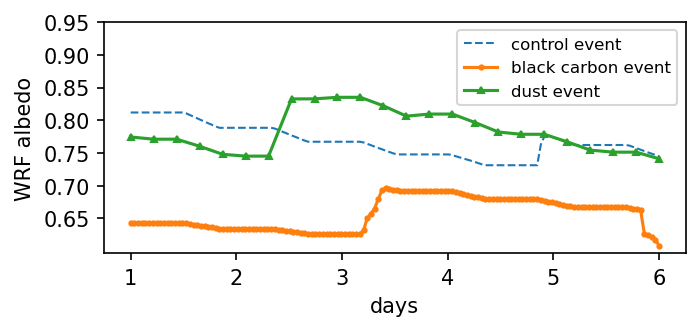

Visualize albedo time series combination
plt.figure(figsize=(5,2), dpi=150)
plt.plot(np.arange(0, alb1.size)/(alb1.size-1)*5 + 1, alb1, '--', linewidth=1, label='control event')
plt.plot(np.arange(0, alb2.size)/(alb2.size-1)*5 + 1, alb2, 'o-', markersize=2, label='black carbon event')
plt.plot(np.arange(0, alb3.size)/(alb3.size-1)*5 + 1, alb3, '^-', markersize=3, label='dust event')
plt.xlabel('days')
plt.ylabel('WRF albedo')
plt.legend(fontsize=8)
plt.yticks(np.arange(0.65, 1.00, 0.05))
([<matplotlib.axis.YTick at 0x7f29572e11d0>,
<matplotlib.axis.YTick at 0x7f29571966d0>,
<matplotlib.axis.YTick at 0x7f29569b6f90>,
<matplotlib.axis.YTick at 0x7f2957299bd0>,
<matplotlib.axis.YTick at 0x7f29570d4f90>,
<matplotlib.axis.YTick at 0x7f295715b710>,
<matplotlib.axis.YTick at 0x7f29571ef550>],
[Text(0, 0.65, '0.65'),
Text(0, 0.7000000000000001, '0.70'),
Text(0, 0.7500000000000001, '0.75'),
Text(0, 0.8000000000000002, '0.80'),
Text(0, 0.8500000000000002, '0.85'),
Text(0, 0.9000000000000002, '0.90'),
Text(0, 0.9500000000000003, '0.95')])
# get the longitude and latitude coordinates
xlong = dscase3_ini.XLONG.copy()
xlat = dscase3_ini.XLAT.copy()
xlong
xlat
<xarray.DataArray 'XLAT' (y: 201, x: 201)> Size: 162kB
array([[38.38703 , 38.387066, 38.38709 , ..., 38.387497, 38.387466,
38.387444],
[38.391594, 38.391624, 38.39166 , ..., 38.392063, 38.392033,
38.392006],
[38.396156, 38.396194, 38.39622 , ..., 38.396633, 38.396603,
38.396572],
...,
[39.290962, 39.290997, 39.291027, ..., 39.29144 , 39.291416,
39.291378],
[39.29553 , 39.29556 , 39.295597, ..., 39.296005, 39.29598 ,
39.295948],
[39.3001 , 39.30013 , 39.300156, ..., 39.300564, 39.30055 ,
39.300514]], dtype=float32)
Coordinates:
XLAT (y, x) float32 162kB 38.39 38.39 38.39 38.39 ... 39.3 39.3 39.3
XLONG (y, x) float32 162kB -107.6 -107.6 -107.6 ... -106.5 -106.5 -106.5
CLAT (y, x) float32 162kB 38.39 38.39 38.39 38.39 ... 39.3 39.3 39.3
* y (y) float64 2kB -5.6e+04 -5.55e+04 -5.5e+04 ... 4.35e+04 4.4e+04
* x (x) float64 2kB -5.344e+04 -5.294e+04 ... 4.606e+04 4.656e+04
Attributes:
FieldType: 104
MemoryOrder: XY
description: LATITUDE, SOUTH IS NEGATIVE
units: degree_north
stagger: xlong.shape
(201, 201)
xlat[124,109]
<xarray.DataArray 'XLAT' ()> Size: 4B
array(38.95481, dtype=float32)
Coordinates:
XLAT float32 4B 38.95
XLONG float32 4B -107.0
CLAT float32 4B 38.95
y float64 8B 6.001e+03
x float64 8B 1.056e+03
Attributes:
FieldType: 104
MemoryOrder: XY
description: LATITUDE, SOUTH IS NEGATIVE
units: degree_north
stagger: xlong[124,109]
<xarray.DataArray 'XLONG' ()> Size: 4B
array(-106.987595, dtype=float32)
Coordinates:
XLAT float32 4B 38.95
XLONG float32 4B -107.0
CLAT float32 4B 38.95
y float64 8B 6.001e+03
x float64 8B 1.056e+03
Attributes:
FieldType: 104
MemoryOrder: XY
description: LONGITUDE, WEST IS NEGATIVE
units: degree_east
stagger: dscase1_ini.ALBEDO.mean(dim=["Time"])
<xarray.DataArray 'ALBEDO' (y: 201, x: 201)> Size: 162kB
array([[0.12567791, 0.27713156, 0.27787742, ..., 0.13806541, 0.13562445,
0.13517445],
[0.12720494, 0.36455992, 0.3261745 , ..., 0.5272812 , 0.5218349 ,
0.13799016],
[0.16911976, 0.4227103 , 0.3591574 , ..., 0.523505 , 0.56517625,
0.14023069],
...,
[0.13396809, 0.48029068, 0.4897437 , ..., 0.41331407, 0.41277325,
0.13352953],
[0.18808675, 0.23803009, 0.25103953, ..., 0.46812785, 0.4666935 ,
0.13463642],
[0.18084066, 0.12843372, 0.12848563, ..., 0.13586679, 0.13635956,
0.13567682]], dtype=float32)
Coordinates:
* y (y) float64 2kB -5.6e+04 -5.55e+04 -5.5e+04 ... 4.35e+04 4.4e+04
* x (x) float64 2kB -5.344e+04 -5.294e+04 ... 4.606e+04 4.656e+04plt.figure(figsize=(16,4))
albini = dscase1_ini.ALBEDO[17,:,:]
albend = dscase1_end.ALBEDO[17,:,:]

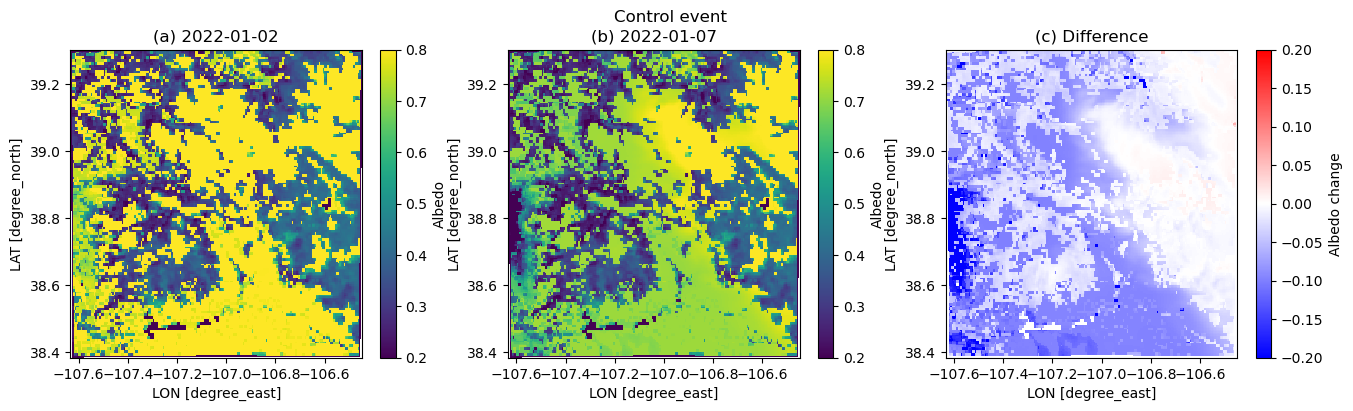

plt.suptitle('Control event')
plt.subplot(1,3,1)
plt.pcolormesh(xlong, xlat, albini.squeeze(), vmin=0.2, vmax=0.8)
plt.xlabel('LON [degree_east]', fontsize=10)
plt.ylabel('LAT [degree_north]', fontsize=10)
plt.colorbar(label='Albedo')
plt.title('(a) 2022-01-02')
plt.subplot(1,3,2)
plt.pcolormesh(xlong, xlat, albend.squeeze(), vmin=0.2, vmax=0.8)
plt.xlabel('LON [degree_east]', fontsize=10)
plt.ylabel('LAT [degree_north]', fontsize=10)
plt.colorbar(label='Albedo')
plt.title('(b) 2022-01-07')
plt.subplot(1,3,3)
plt.pcolormesh(xlong, xlat, albend.squeeze() - albini.squeeze(), cmap=cm.bwr, vmin=-0.2, vmax=0.2)
plt.xlabel('LON [degree_east]', fontsize=10)
plt.ylabel('LAT [degree_north]', fontsize=10)
plt.colorbar(label='Albedo change')
plt.title('(c) Difference')
/tmp/ipykernel_3207/648137882.py:8: UserWarning: The input coordinates to pcolormesh are interpreted as cell centers, but are not monotonically increasing or decreasing. This may lead to incorrectly calculated cell edges, in which case, please supply explicit cell edges to pcolormesh.
plt.pcolormesh(xlong, xlat, albini.squeeze(), vmin=0.2, vmax=0.8)
/tmp/ipykernel_3207/648137882.py:15: UserWarning: The input coordinates to pcolormesh are interpreted as cell centers, but are not monotonically increasing or decreasing. This may lead to incorrectly calculated cell edges, in which case, please supply explicit cell edges to pcolormesh.
plt.pcolormesh(xlong, xlat, albend.squeeze(), vmin=0.2, vmax=0.8)
/tmp/ipykernel_3207/648137882.py:22: UserWarning: The input coordinates to pcolormesh are interpreted as cell centers, but are not monotonically increasing or decreasing. This may lead to incorrectly calculated cell edges, in which case, please supply explicit cell edges to pcolormesh.
plt.pcolormesh(xlong, xlat, albend.squeeze() - albini.squeeze(), cmap=cm.bwr, vmin=-0.2, vmax=0.2)
Text(0.5, 1.0, '(c) Difference')
plt.figure(figsize=(16,4))
albini = dscase2_ini.ALBEDO[17,:,:]
albend = dscase2_end.ALBEDO[17,:,:]
plt.suptitle('Black carbon event')
plt.subplot(1,3,1)
plt.pcolormesh(xlong, xlat, albini.squeeze(), vmin=0.2, vmax=0.8)
plt.xlabel('LON [degree_east]', fontsize=10)
plt.ylabel('LAT [degree_north]', fontsize=10)
plt.colorbar(label='Albedo')
plt.title('(a) 2022-01-25')
plt.subplot(1,3,2)
plt.pcolormesh(xlong, xlat, albend.squeeze(), vmin=0.2, vmax=0.8)
plt.xlabel('LON [degree_east]', fontsize=10)
plt.ylabel('LAT [degree_north]', fontsize=10)
plt.colorbar(label='Albedo')
plt.title('(b) 2023-01-30')
plt.subplot(1,3,3)
plt.pcolormesh(xlong, xlat, albend.squeeze() - albini.squeeze(), cmap=cm.bwr, vmin=-0.2, vmax=0.2)
plt.xlabel('LON [degree_east]', fontsize=10)
plt.ylabel('LAT [degree_north]', fontsize=10)
plt.colorbar(label='Albedo change')
plt.title('(c) Difference')
/tmp/ipykernel_3207/78071660.py:8: UserWarning: The input coordinates to pcolormesh are interpreted as cell centers, but are not monotonically increasing or decreasing. This may lead to incorrectly calculated cell edges, in which case, please supply explicit cell edges to pcolormesh.
plt.pcolormesh(xlong, xlat, albini.squeeze(), vmin=0.2, vmax=0.8)
/tmp/ipykernel_3207/78071660.py:15: UserWarning: The input coordinates to pcolormesh are interpreted as cell centers, but are not monotonically increasing or decreasing. This may lead to incorrectly calculated cell edges, in which case, please supply explicit cell edges to pcolormesh.
plt.pcolormesh(xlong, xlat, albend.squeeze(), vmin=0.2, vmax=0.8)
/tmp/ipykernel_3207/78071660.py:22: UserWarning: The input coordinates to pcolormesh are interpreted as cell centers, but are not monotonically increasing or decreasing. This may lead to incorrectly calculated cell edges, in which case, please supply explicit cell edges to pcolormesh.
plt.pcolormesh(xlong, xlat, albend.squeeze() - albini.squeeze(), cmap=cm.bwr, vmin=-0.2, vmax=0.2)
Text(0.5, 1.0, '(c) Difference')
plt.figure(figsize=(16,4))
plt.suptitle('Dust event')
plt.subplot(1,3,1)
plt.pcolormesh(xlong, xlat, dscase3_ini.ALBEDO.squeeze(), vmin=0.2, vmax=0.8)
plt.xlabel('LON [degree_east]', fontsize=10)
plt.ylabel('LAT [degree_north]', fontsize=10)
plt.colorbar(label='Albedo')
plt.title('(a) 2023-04-03')
plt.subplot(1,3,2)
plt.pcolormesh(xlong, xlat, dscase3_end.ALBEDO.squeeze(), vmin=0.2, vmax=0.8)
plt.xlabel('LON [degree_east]', fontsize=10)
plt.ylabel('LAT [degree_north]', fontsize=10)
plt.colorbar(label='Albedo')
plt.title('(b) 2023-04-09')
plt.subplot(1,3,3)
plt.pcolormesh(xlong, xlat, dscase3_end.ALBEDO.squeeze() - dscase3_ini.ALBEDO.squeeze(), cmap=cm.bwr, vmin=-0.2, vmax=0.2)
plt.xlabel('LON [degree_east]', fontsize=10)
plt.ylabel('LAT [degree_north]', fontsize=10)
plt.colorbar(label='Albedo change')
plt.title('(c) Difference')
/tmp/ipykernel_3207/964711993.py:6: UserWarning: The input coordinates to pcolormesh are interpreted as cell centers, but are not monotonically increasing or decreasing. This may lead to incorrectly calculated cell edges, in which case, please supply explicit cell edges to pcolormesh.
plt.pcolormesh(xlong, xlat, dscase3_ini.ALBEDO.squeeze(), vmin=0.2, vmax=0.8)
/tmp/ipykernel_3207/964711993.py:13: UserWarning: The input coordinates to pcolormesh are interpreted as cell centers, but are not monotonically increasing or decreasing. This may lead to incorrectly calculated cell edges, in which case, please supply explicit cell edges to pcolormesh.
plt.pcolormesh(xlong, xlat, dscase3_end.ALBEDO.squeeze(), vmin=0.2, vmax=0.8)
/tmp/ipykernel_3207/964711993.py:20: UserWarning: The input coordinates to pcolormesh are interpreted as cell centers, but are not monotonically increasing or decreasing. This may lead to incorrectly calculated cell edges, in which case, please supply explicit cell edges to pcolormesh.
plt.pcolormesh(xlong, xlat, dscase3_end.ALBEDO.squeeze() - dscase3_ini.ALBEDO.squeeze(), cmap=cm.bwr, vmin=-0.2, vmax=0.2)
Text(0.5, 1.0, '(c) Difference')
