Plot a 1000-hPa map calculating the geostrophic from MetPy and finding the ageostrophic wind from the total wind and the geostrophic wind.
This uses the geostrophic wind calculation from metpy.calc to find
the geostrophic wind, then performs the simple subtraction to find the ageostrophic
wind. Currently, this needs an extra helper function to calculate
the distance between lat/lon grid points.
Additionally, we utilize the ndimage.zoom method for smoothing the 1000-hPa
height contours without smoothing the data.
Imports
from datetime import datetime, timedelta
import cartopy.crs as ccrs
import cartopy.feature as cfeature
import matplotlib.pyplot as plt
import metpy.calc as mpcalc
import numpy as np
from scipy import ndimage
from siphon.catalog import TDSCatalog
from xarray.backends import NetCDF4DataStore
import xarray as xrSet up access to the data
dt = datetime(2016, 8, 22, 18)
forecast_hour = 3
h = timedelta(hours=forecast_hour)
# Assemble our URL to the THREDDS Data Server catalog,
# and access our desired dataset within via NCSS
base_url = 'https://www.ncei.noaa.gov/thredds/catalog/model-gfs-g4-anl-files-old/'
cat = TDSCatalog(f'{base_url}{dt:%Y%m}/{dt:%Y%m%d}/catalog.xml')
ncss = cat.datasets[f'gfsanl_4_{dt:%Y%m%d}_{dt:%H}'
f'00_00{forecast_hour}.grb2'].subset()
# Create NCSS query for our desired time, region, and data variables
query = ncss.query()
query.lonlat_box(north=50, south=30, east=-80, west=-115)
query.time(dt + h)
query.variables('Geopotential_height_isobaric',
'u-component_of_wind_isobaric',
'v-component_of_wind_isobaric')
query.vertical_level(100000)
data = ncss.get_data(query)
ds = xr.open_dataset(NetCDF4DataStore(data)).metpy.parse_cf()---------------------------------------------------------------------------
HTTPError Traceback (most recent call last)
Cell In[2], line 22
18 'u-component_of_wind_isobaric',
19 'v-component_of_wind_isobaric')
20 query.vertical_level(100000)
21
---> 22 data = ncss.get_data(query)
23
24 ds = xr.open_dataset(NetCDF4DataStore(data)).metpy.parse_cf()
File ~/micromamba/envs/metpy-cookbook/lib/python3.14/site-packages/siphon/ncss.py:114, in NCSS.get_data(self, query)
93 def get_data(self, query):
94 """Fetch parsed data from a THREDDS server using NCSS.
95
96 Requests data from the NCSS endpoint given the parameters in `query` and
(...) 112
113 """
--> 114 resp = self.get_query(query)
115 return response_handlers(resp, self.unit_handler)
File ~/micromamba/envs/metpy-cookbook/lib/python3.14/site-packages/siphon/http_util.py:406, in HTTPEndPoint.get_query(self, query)
386 """Make a GET request, including a query, to the endpoint.
387
388 The path of the request is to the base URL assigned to the endpoint.
(...) 403
404 """
405 url = self._base[:-1] if self._base[-1] == '/' else self._base
--> 406 return self.get(url, query)
File ~/micromamba/envs/metpy-cookbook/lib/python3.14/site-packages/siphon/http_util.py:488, in HTTPEndPoint.get(self, path, params)
486 else:
487 text = resp.text
--> 488 raise requests.HTTPError(f'Error accessing {resp.request.url}\n'
489 f'Server Error ({resp.status_code: d}: {text})')
490 return resp
HTTPError: Error accessing https://www.ncei.noaa.gov/thredds/ncss/grid/model-gfs-g4-anl-files-old/201608/20160822/gfsanl_4_20160822_1800_003.grb2?var=u-component_of_wind_isobaric&var=v-component_of_wind_isobaric&var=Geopotential_height_isobaric&time=2016-08-22T21%3A00%3A00&west=-115&east=-80&south=30&north=50&vertCoord=100000
Server Error ( 404: FileNotFound: No such file or directory)# Pull out variables you want to use
height = ds.Geopotential_height_isobaric.squeeze()
u_wind = ds['u-component_of_wind_isobaric'].squeeze().metpy.quantify()
v_wind = ds['v-component_of_wind_isobaric'].squeeze().metpy.quantify()
vtime = height.time.values.squeeze().astype('datetime64[ms]').astype('O')
lat = ds.latitude
lon = ds.longitude# Combine 1D latitude and longitudes into a 2D grid of locations
lon_2d, lat_2d = np.meshgrid(lon, lat)
# Smooth height data
height = mpcalc.smooth_n_point(height, 9, 3)
# Compute the geostrophic wind
geo_wind_u, geo_wind_v = mpcalc.geostrophic_wind(height)
# Calculate ageostrophic wind components
ageo_wind_u = u_wind - geo_wind_u
ageo_wind_v = v_wind - geo_wind_v# Create new figure
fig = plt.figure(figsize=(15, 10), facecolor='black')
# Add the map and set the extent
ax = plt.axes(projection=ccrs.PlateCarree())
ax.set_extent([-105., -93., 35., 43.])
ax.patch.set_fill(False)
# Add state boundaries to plot
ax.add_feature(cfeature.STATES, edgecolor='white', linewidth=2)
# Contour the heights every 10 m
contours = np.arange(10, 200, 10)
# Because we have a very local graphics area, the contours have joints
# to smooth those out we can use `ndimage.zoom`
zoom_500 = mpcalc.zoom_xarray(height, 5)
c = ax.contour(zoom_500.longitude, zoom_500.latitude, zoom_500, levels=contours,
colors='red', linewidths=4)
ax.clabel(c, fontsize=12, inline=1, inline_spacing=3, fmt='%i')
# Set up parameters for quiver plot. The slices below are used to
# subset the data (here taking every 4th point in x and y). The
# quiver_kwargs are parameters to control the appearance of the
# quiver so that they stay consistent between the calls.
quiver_slices = (slice(None, None, 2), slice(None, None, 2))
quiver_kwargs = {'headlength': 4, 'headwidth': 3, 'angles': 'uv',
'scale_units': 'xy', 'scale': 20}
# Plot the wind vectors
wind = ax.quiver(lon_2d[quiver_slices], lat_2d[quiver_slices],
u_wind[quiver_slices], v_wind[quiver_slices],
color='blue', **quiver_kwargs)
geo = ax.quiver(lon_2d[quiver_slices], lat_2d[quiver_slices],
geo_wind_u[quiver_slices], geo_wind_v[quiver_slices],
color='darkorchid', **quiver_kwargs)
ageo = ax.quiver(lon_2d[quiver_slices], lat_2d[quiver_slices],
ageo_wind_u[quiver_slices], ageo_wind_v[quiver_slices],
color='lime', **quiver_kwargs)
# Add a title to the plot

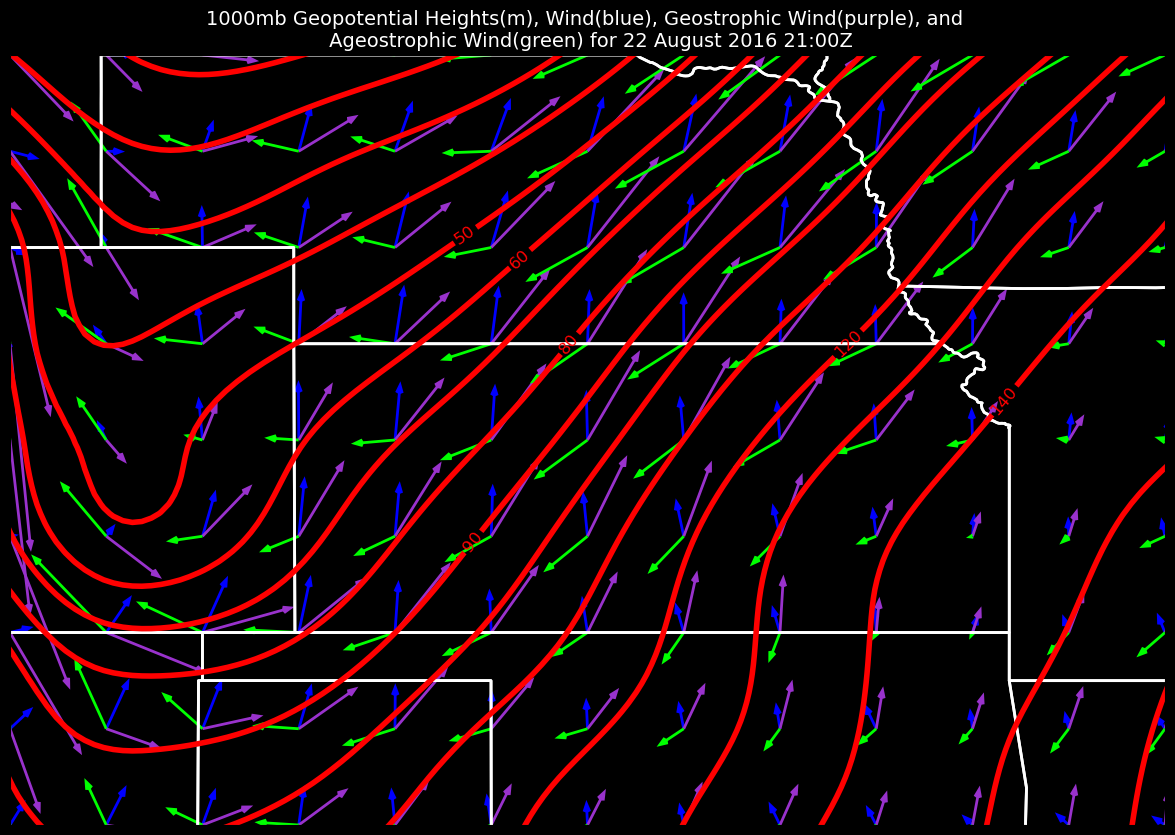

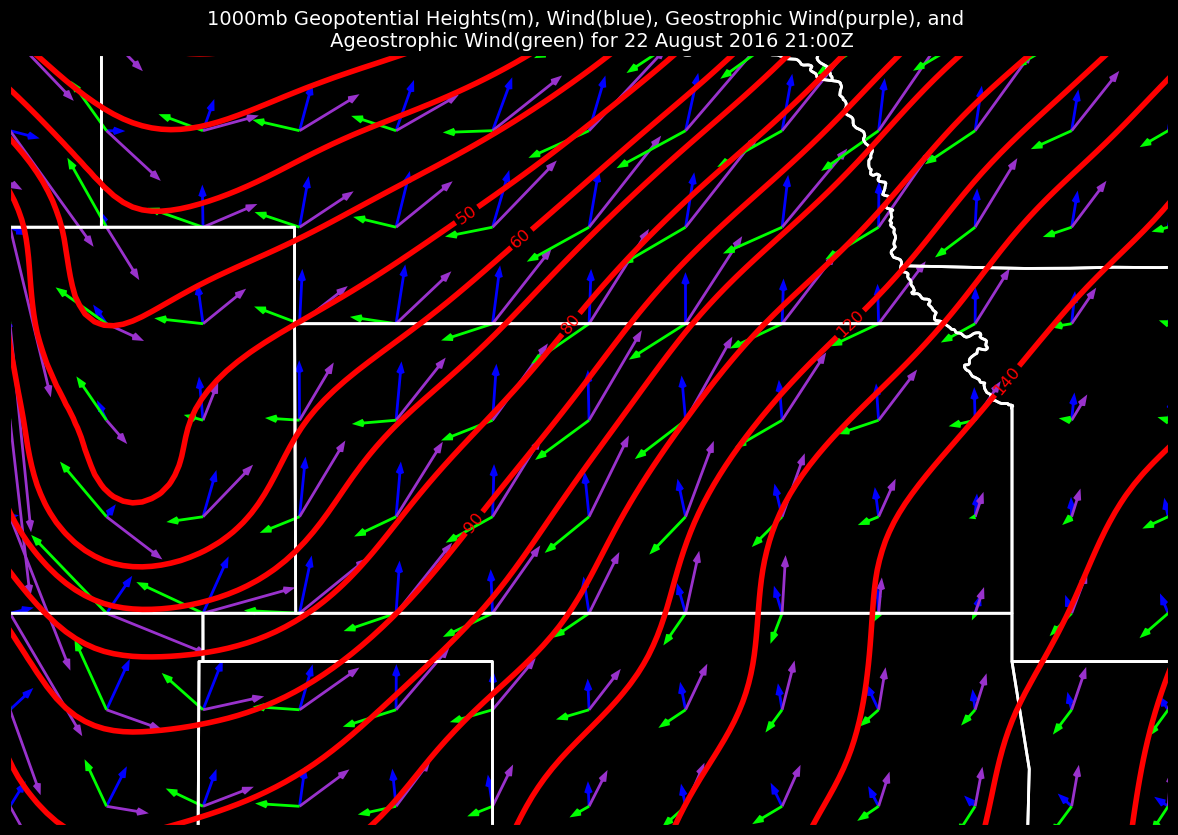

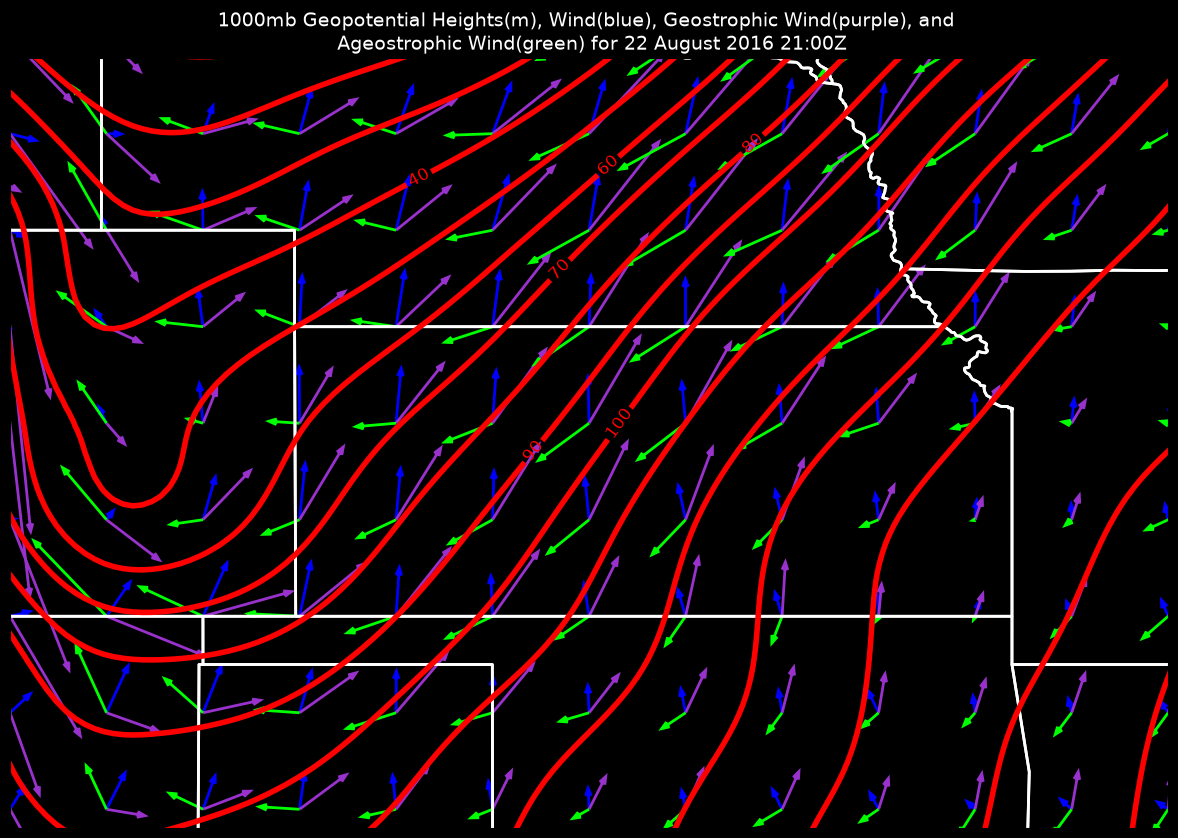

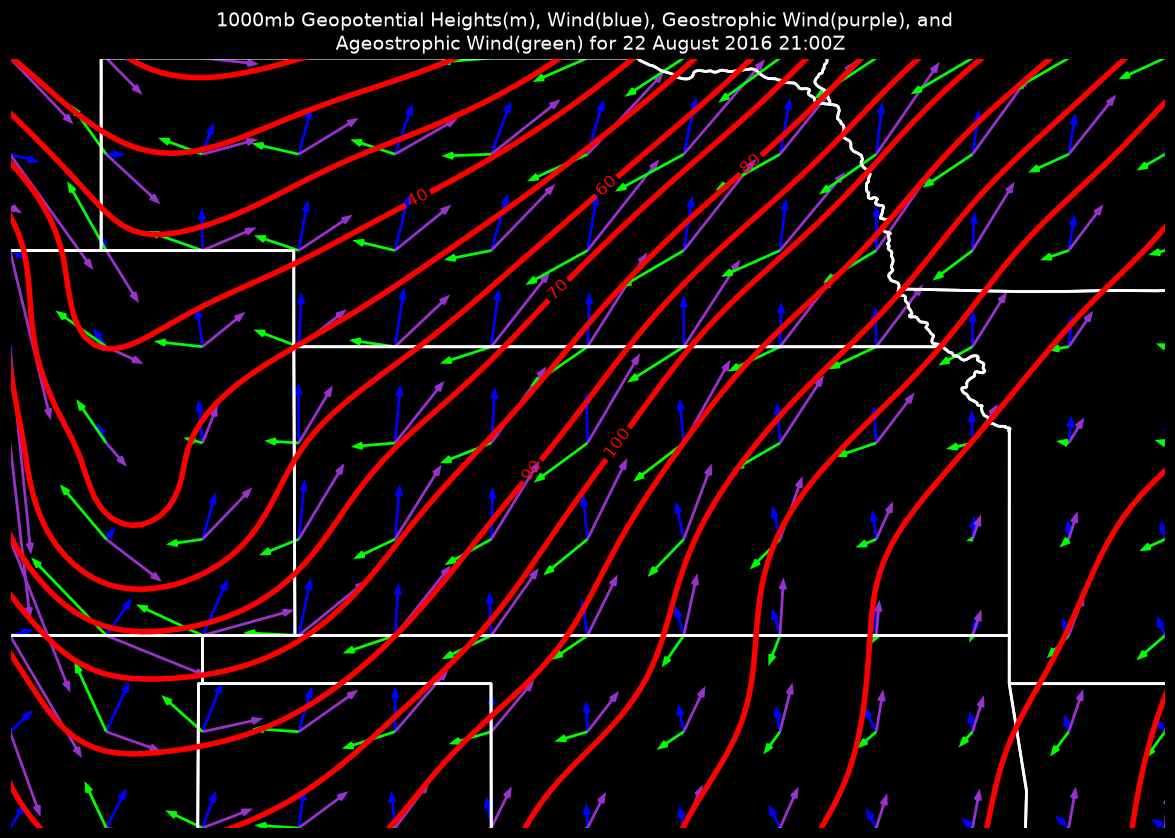

plt.title('1000mb Geopotential Heights(m), Wind(blue), '
'Geostrophic Wind(purple), and \n Ageostrophic Wind(green) '
f'for {vtime:%d %B %Y %H:%MZ}', color='white', size=14)
